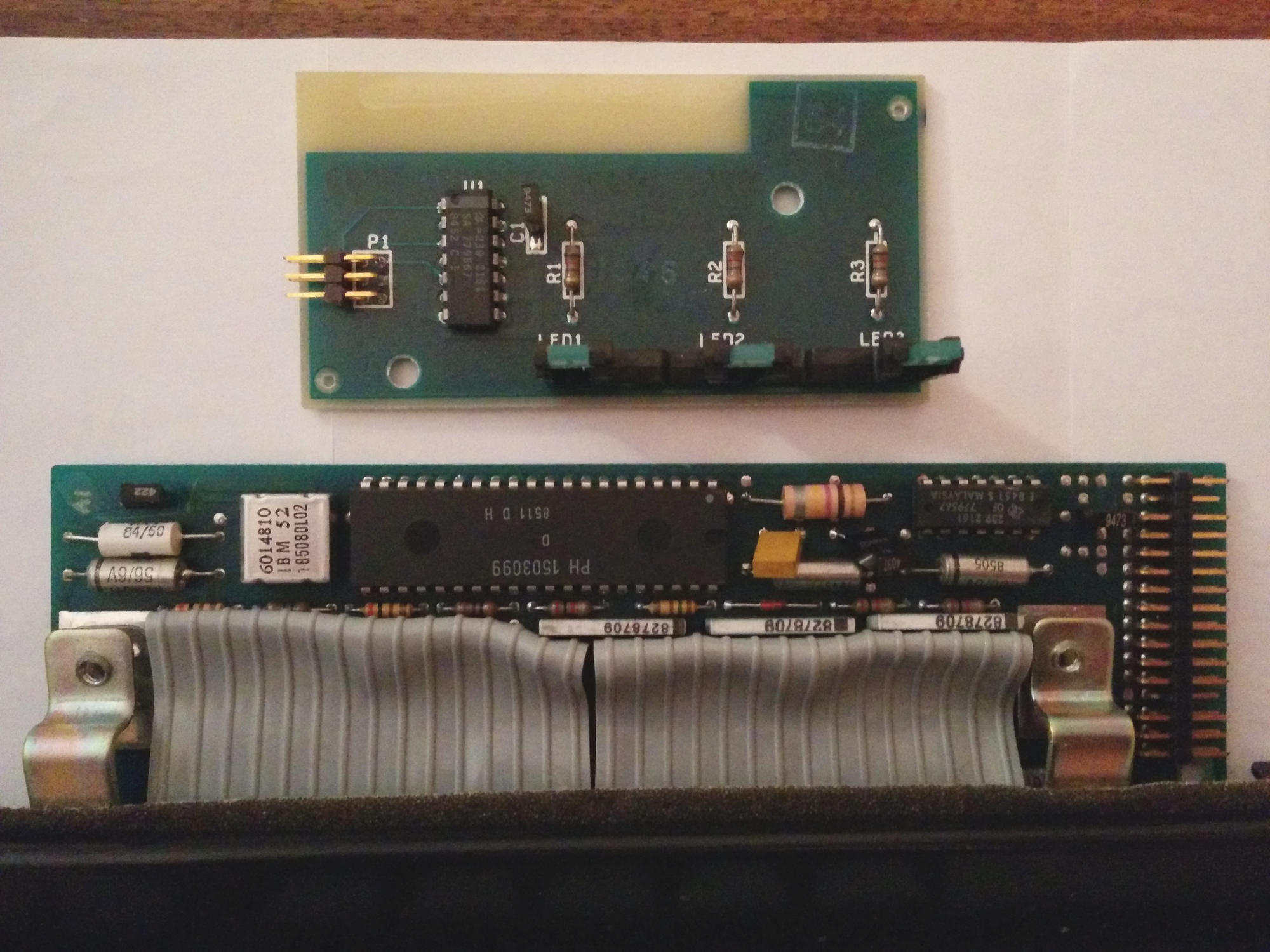

I bought a IBM model F recently. The keyboard is dead. No function. Openning it I found the following:
The rest looks "fine" but since I have no knowledge of fixing this wonderful keyboard I would appreciate your help what to look for aside from this.
Tell me if you want other pics.
Thank you for your help.
The rest looks "fine" but since I have no knowledge of fixing this wonderful keyboard I would appreciate your help what to look for aside from this.
Tell me if you want other pics.
Thank you for your help.
- Attachments
-
- modelF.jpg (179.82 KiB) Viewed 3216 times
-
- Location: Houston, Texas
- Main keyboard: IBM Bigfoot
- Main mouse: CST trackball
- Favorite switch: IBM Model F
- DT Pro Member: -
Which model F is that? With the exception of the AT, none of them will attach to a modern PC without a converter or new controller.
Edit: looks like an AT. What are you connecting it to the computer with?
Edit: looks like an AT. What are you connecting it to the computer with?
- seebart
- Offtopicthority Instigator
- Location: Germany
- Main keyboard: Rotation
- Main mouse: Steelseries Sensei
- Favorite switch: IBM capacitive buckling spring
- DT Pro Member: 0061
- Contact:
right I just remembered that myself, unfortunatley I don´t have a converter or new controller right now

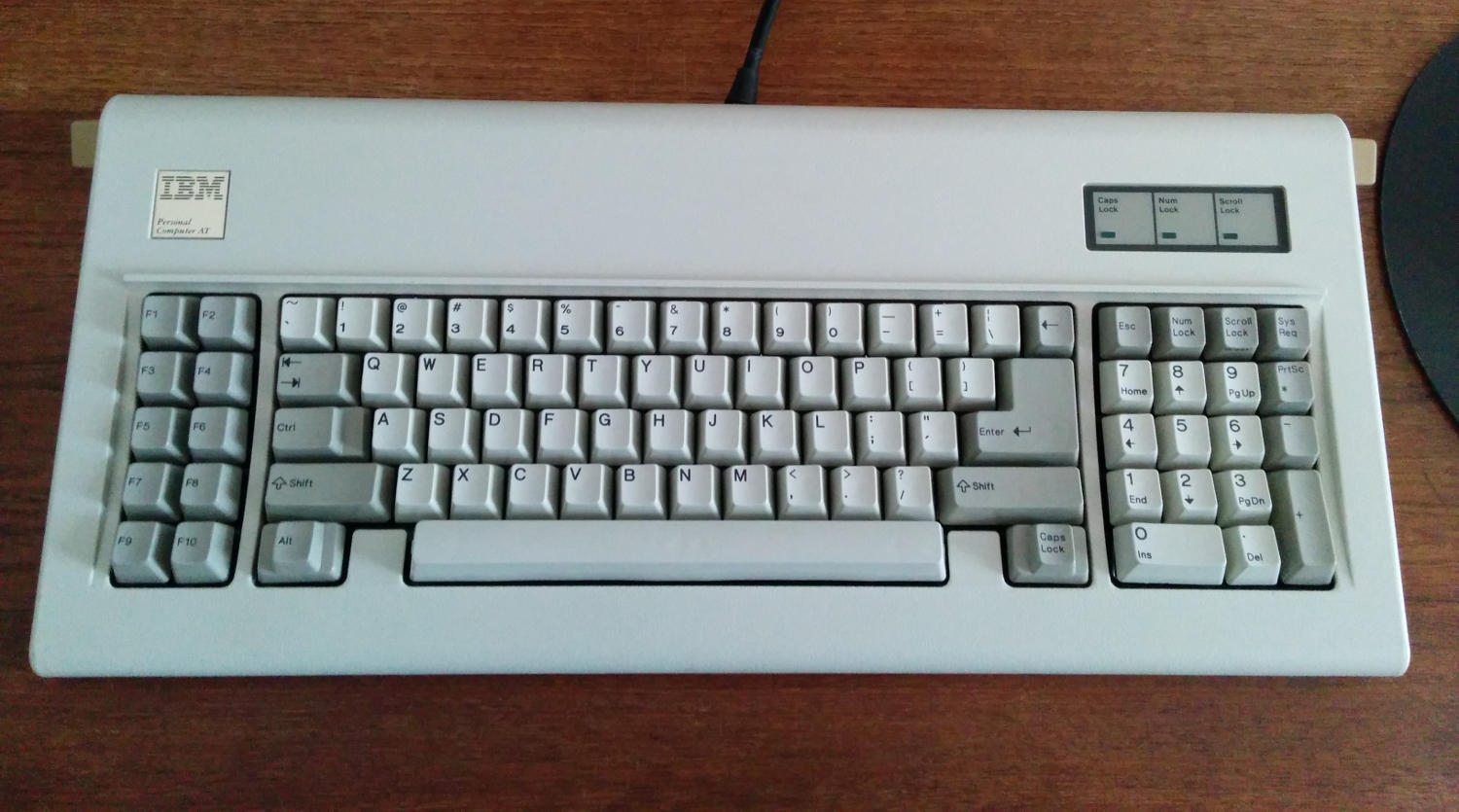

This baby looks like this and the sticker on the back reads:
ID NO.515X-55-87113L
MODEL 000
PART NO. 6450200
DATE OF MFG 16-07-1985
MADE IN THE UNITED KINGDOM
but that part in my first pic looks bad. Any tips on replacing something like that?
I just connected it with an DIN > PS2 adapter.
This baby looks like this and the sticker on the back reads:
ID NO.515X-55-87113L
MODEL 000
PART NO. 6450200
DATE OF MFG 16-07-1985
MADE IN THE UNITED KINGDOM
but that part in my first pic looks bad. Any tips on replacing something like that?
I just connected it with an DIN > PS2 adapter.
so I do NOT need a converter or new controller?With the exception of the AT
- Attachments
-
- modelF-b.jpg (150.24 KiB) Viewed 3201 times
-
- Location: Houston, Texas
- Main keyboard: IBM Bigfoot
- Main mouse: CST trackball
- Favorite switch: IBM Model F
- DT Pro Member: -

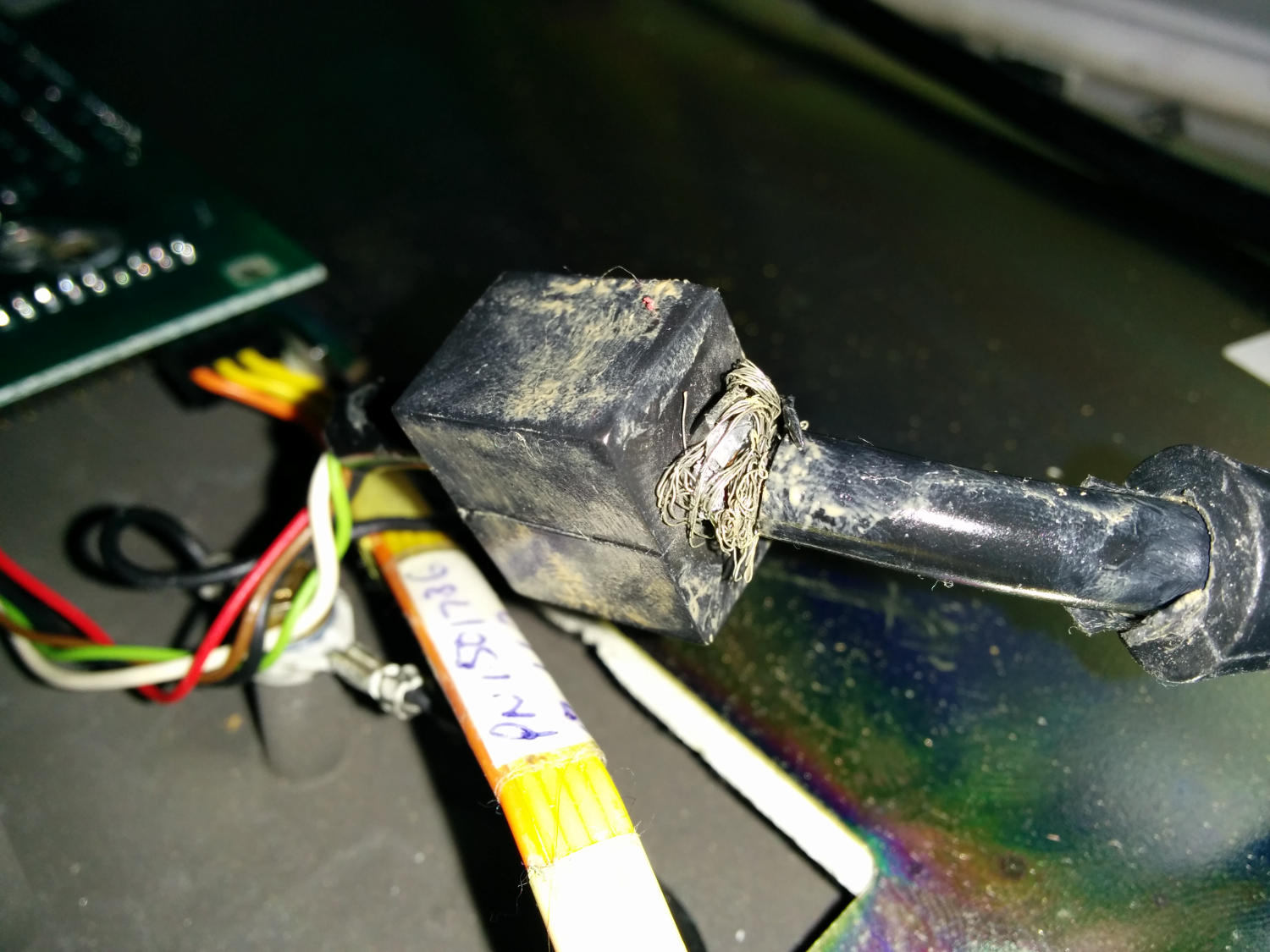

It should work with just the DIN->PS/2 adapter. Are you sure it's plugged into the keyboard and not mouse port? I wouldn't worry too much about the original cable, that's just part of the shield sticking out.
- seebart
- Offtopicthority Instigator
- Location: Germany
- Main keyboard: Rotation
- Main mouse: Steelseries Sensei
- Favorite switch: IBM capacitive buckling spring
- DT Pro Member: 0061
- Contact:
I have it hooked up via a normal DIN->PS/2 adapter. The adapter is fine. I´m using it now with my Focus FK-2002 . Unfortunately the model F is not responding at all. I took it apart, looks fine except for the cable shield. Any ideas?
- Attachments
-
- modelF-c.jpg (228.67 KiB) Viewed 3175 times
- Hypersphere
- Location: USA
- Main keyboard: Silenced & Lubed HHKB (Black)
- Main mouse: Logitech G403
- Favorite switch: Topre 45/55g Silenced; Various Alps; IBM Model F
- DT Pro Member: 0038
It would be good to test the continuity.
-
- Location: Belgium, land of Liberty Wafles and Freedom Fries
- Main keyboard: G80-3K with Clears
- Favorite switch: Capacitative BS
- DT Pro Member: 0049
Can the conical part on the cable slide around?
If I recall correctly, the black rectangle and that conical part are supposed to be one plastic part functioning as strain relief. If it got so worn that it broke (for example if the cable was too tightly wound around the keyboard while in storage), the cable itself might have suffered some damage.
Can you take a multi-meter with built-in continuity tester and check if the cable is still fine?
EDIT: Seems I spent too long digging up pictures of the strain relief, Hypershere beat me to posting.
Here's a picture of that strain relief, found on http://www.epiguru.com/2012/04/model-f- ... sassembly/
If I recall correctly, the black rectangle and that conical part are supposed to be one plastic part functioning as strain relief. If it got so worn that it broke (for example if the cable was too tightly wound around the keyboard while in storage), the cable itself might have suffered some damage.
Can you take a multi-meter with built-in continuity tester and check if the cable is still fine?
EDIT: Seems I spent too long digging up pictures of the strain relief, Hypershere beat me to posting.
Here's a picture of that strain relief, found on http://www.epiguru.com/2012/04/model-f- ... sassembly/
- seebart
- Offtopicthority Instigator
- Location: Germany
- Main keyboard: Rotation
- Main mouse: Steelseries Sensei
- Favorite switch: IBM capacitive buckling spring
- DT Pro Member: 0061
- Contact:

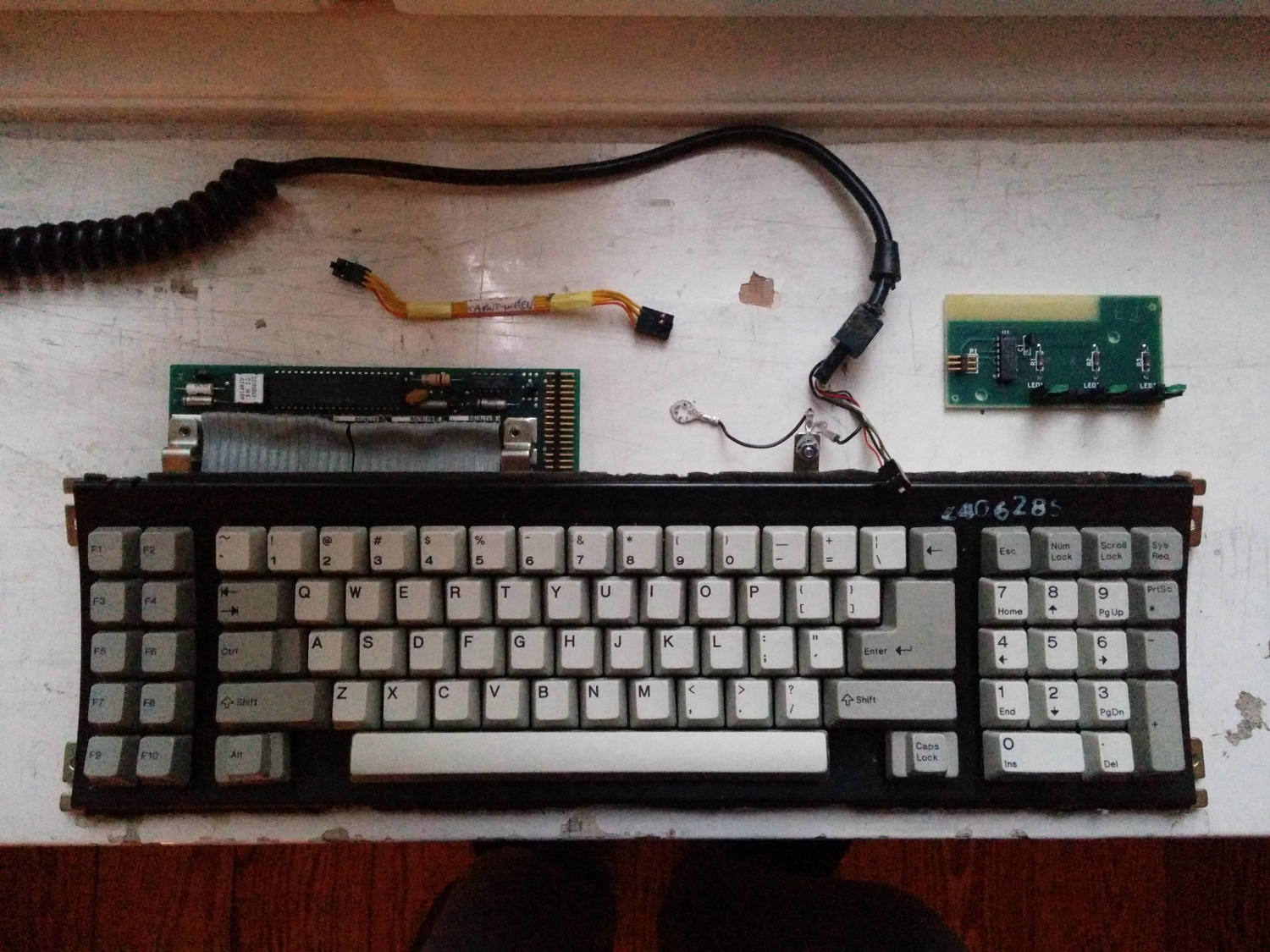

not in my opinion, BUT I am not experienced in this, you guys take a look:Hm...do look any of the components look weird? Does something look burned or broken? Or the common bulging capacitors....
That´s some solid information in that link JBert, thanks for that !! I don´t have the tools for the continuity test now, it will have to wait.
Looks like this is gonna be a long-term project for me, I was hoping it would run "out of the box" but hell the keyboard is 29 years old!
- Attachments
-
- modelF-d.jpg (285.91 KiB) Viewed 3159 times
- Icarium
- Location: Germany
- Main keyboard: These fields just
- Main mouse: opened my eyes
- Favorite switch: I need to bring stuff to work
- DT Pro Member: -
I'm with JBert. Just check the cable it's probably not a big deal.seebart wrote:not in my opinion, BUT I am not experienced in this, you guys take a look:Hm...do look any of the components look weird? Does something look burned or broken? Or the common bulging capacitors....
That´s some solid information in that link JBert, thanks for that !! I don´t have the tools for the continuity test now, it will have to wait.
Looks like this is gonna be a long-term project for me, I was hoping it would run "out of the box" but hell the keyboard is 29 years old!
-
- Main keyboard: POKER 2
- Main mouse: G9X
- Favorite switch: clear
- DT Pro Member: -
white V
black G
red and brown c d or d c .
PS2 is OK.
black G
red and brown c d or d c .
PS2 is OK.
- Hypersphere
- Location: USA
- Main keyboard: Silenced & Lubed HHKB (Black)
- Main mouse: Logitech G403
- Favorite switch: Topre 45/55g Silenced; Various Alps; IBM Model F
- DT Pro Member: 0038
Before I got a multimeter, I used to test continuity using a battery, light bulb, and a piece or two of wire.seebart wrote: ↑<snip>Hm...do look any of the components look weird? Does something look burned or broken? Or the common bulging capacitors....
I don´t have the tools for the continuity test now, it will have to wait.
<snip>
