by brunoboi
05 Sep 2017, 16:54
Forum: Workshop
Topic: [WIP] KeyBoi DT60 - a 60% ortholinear GH60 case compatible
Replies: 6
Views: 3467

... My suggestion is if you want to do a Group Buy, add more layouts, for example: that it is possible to split the 2u key in 2 1u keys and more options for the bottom row... What do you think about those alternatives: KLE editor . That would bring that board close to something like that: http://i....
by brunoboi
01 Sep 2017, 09:07
Forum: Workshop
Topic: [WIP] KeyBoi DT60 - a 60% ortholinear GH60 case compatible
Replies: 6
Views: 3467

Hello everyone. There's an update. I made some slight changes to the PCB: ISP connector added changed cherry connectors to 5 pin (PCB mounted) http://i.imgur.com/E8nahbb.png http://i.imgur.com/qhCG4fD.png By the way, a feature I did not mention: dt68 will have the same speaker that JH's OLKBs have. ...
by brunoboi
29 Jun 2017, 09:45
Forum: Workshop
Topic: [WIP] KeyBoi DT60 - a 60% ortholinear GH60 case compatible
Replies: 6
Views: 3467

Hello everyone ! After thoughts, I don't see how a Poker case could handle a teensy (some may fit but not all cases). Here is a PCB I designed with an atmega32u4. That's my very first PCB design ever, please don't laugh :-D http://i.imgur.com/w3KOtPh.png http://i.imgur.com/tYqjj8Q.png Any of you see...
by brunoboi
22 Jun 2017, 10:54
Forum: Workshop
Topic: [WIP] KeyBoi DT60 - a 60% ortholinear GH60 case compatible
Replies: 6
Views: 3467

Hello hypkx. Thanks for your interest. I do not plan to start a group buy. Adding layout alternatives is a good idea ;-) But if I want to keep the compatibility with poker cases, I probably do not want to lose the fit with the middle center screw support. I think these alternatives should fit: http:...
by brunoboi
21 Jun 2017, 07:45
Forum: Workshop
Topic: [WIP] KeyBoi DT60 - a 60% ortholinear GH60 case compatible
Replies: 6
Views: 3467

[WIP] KeyBoi DT60 - a 60% ortholinear GH60 case compatible

Hello everyone ;-) I am Bruno and I am an IT developer from Belgium. I am seeking for years a keyboard that fit all my requirements... As I've never found it, let's build it ! It will be my very first custom board. Those are my requirements: ortholinear/non-staggered layout (inspired by OLKB boards)...
by brunoboi
30 Dec 2016, 15:28
Forum: Keyboards
Topic: Post a picture of your ideal keyboard layout!
Replies: 480
Views: 145433

Is that the result of seeing JH's Subatomic teaser? http://i.imgur.com/EWrY7Be.png Not at all ;-) EDIT: But, that's true that I built my layout with the idea of having max 70 keys and so a 14x5 matrix was my choice. I just discovered the world of custom mechanical KB few days ago. It's been a while...
by brunoboi
29 Dec 2016, 18:43
Forum: Keyboards
Topic: Post a picture of your ideal keyboard layout!
Replies: 480
Views: 145433

Hello guys !

I prefer ortholinear layouts, also half-separated.

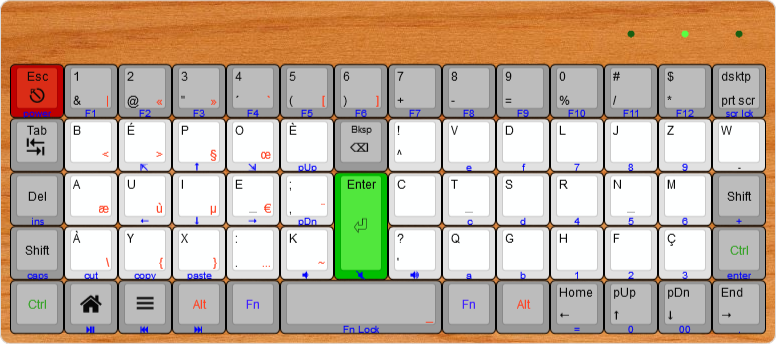

So this is what I would build:

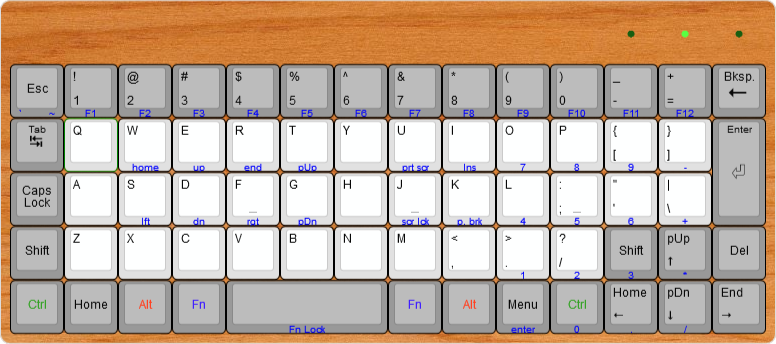

I made another version with the QWERTY layout, but it's not half-separated:
What do you think ?
