Search found 13 matches

by relcc
04 Feb 2013, 22:47
Forum: Workshop
Topic: TMK keyboard firmware collection
Replies: 303
Views: 48232

I'm experiencing heavy bbbounce on the keyboarrd. Changing the BOUNCE rate doesnt help. Isn't there a better bounce algorithm?
by relcc
03 Feb 2013, 21:33
Forum: Keyboards
Topic: KBT Pure firmware/controler
Replies: 30
Views: 4494

The alpha is Arial 20. Getting them centered properply seems to be abit problematic in the final result however. The B seems a bit off.

Modifiers is Arial 20, other Arial 12 + Arial 14
by relcc
01 Feb 2013, 18:25
Forum: Keyboards
Topic: KBT Pure firmware/controler
Replies: 30
Views: 4494

Those are wasdkeyboards.com . My own design
by relcc
01 Feb 2013, 12:21
Forum: Keyboards
Topic: KBT Pure firmware/controler
Replies: 30
Views: 4494

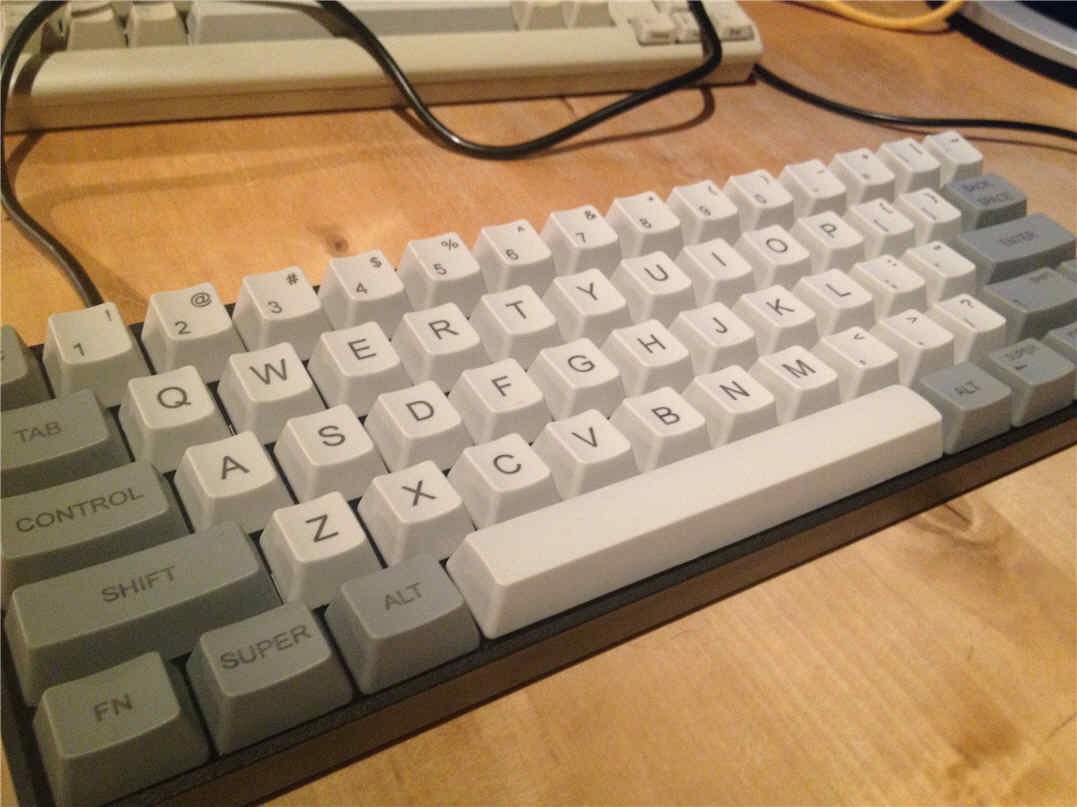

The final result with key caps
by relcc
14 Jan 2013, 11:27
Forum: Workshop
Topic: TMK keyboard firmware collection
Replies: 303
Views: 48232

You would probably have to many rows/columns for a Teensy 2.0, so you could check if you could merge columns/rows. Then you connect each row and column to an input. You can make a copy of a desired version in the keyboard section and apply your own port connections. Then you should enter the matrix ...
by relcc
13 Jan 2013, 13:36
Forum: Group buys
Topic: Cherry MX and Matias switches
Replies: 4661
Views: 277023

Been waiting for 10 days now #0143
by relcc
11 Jan 2013, 03:37
Forum: Workshop
Topic: TMK keyboard firmware collection
Replies: 303
Views: 48232

I understand it should come up as a serial USB device. I'll try changing VID.

I'm still awaiting key caps, but the mod is described here : http://deskthority.net/keyboards-f2/kbt ... t4598.html
by relcc
11 Jan 2013, 02:39
Forum: Workshop
Topic: TMK keyboard firmware collection
Replies: 303
Views: 48232

I just modded a KBT Pure with a Teensy and 2-button backspace replacement and used tmk_keyboard for the firmware to mimic my HHKB. I created a new keyboard PureHHKB in my copy of the repository. It works great. I'm having trouble with the debug console however. If I enable CONSOLE_ENABLE in Makefile...
by relcc
10 Jan 2013, 19:28
Forum: Keyboards
Topic: KBT Pure firmware/controler
Replies: 30
Views: 4494

The keyboard is now fully functional using an adaptation of the tmk_keyboard source files. Still awaiting new keycaps...
by relcc
08 Jan 2013, 21:53
Forum: Keyboards
Topic: KBT Pure firmware/controler
Replies: 30
Views: 4494

Here are some of my findings. I used a multimeter to chart the columns and rows of the PURE PCB. I used (colored) letters for the columns (the ones that are connected directly to the keys), and numbers for the rows (the ones that are connected via a diode). pure_re.png The chip on the right is the c...
by relcc
08 Jan 2013, 12:22
Forum: Keyboards
Topic: KBT Pure firmware/controler
Replies: 30
Views: 4494

I have analysed the matrix, merged some rows, modded ther PCB for 2 buttons instead of backspace and added a Teensy and modded the (plastic) case yesterday. I will post my findings, the matrix and pictures later today. I might do some programming on the Teensy this evening.
by relcc
06 Jan 2013, 23:11
Forum: Keyboards
Topic: KBT Pure firmware/controler
Replies: 30
Views: 4494

Soldering on the Pure is actually quite easy if you attach wires to the keys directly. The controller can be removed. There is another chip whcih may be a driver for the leds, but as you come from the HHKB you probably dont care about the leds. You even may be able to reuse the usb connector on the ...
by relcc
03 Jan 2013, 21:36
Forum: Keyboards
Topic: KBT Pure firmware/controler
Replies: 30
Views: 4494

Same problem here. Going from HHKB (lite) to Pure -> layout problems. Did you find a solution?
