KeyTronic Magnetic Reed Keypad

[OldIsNew]

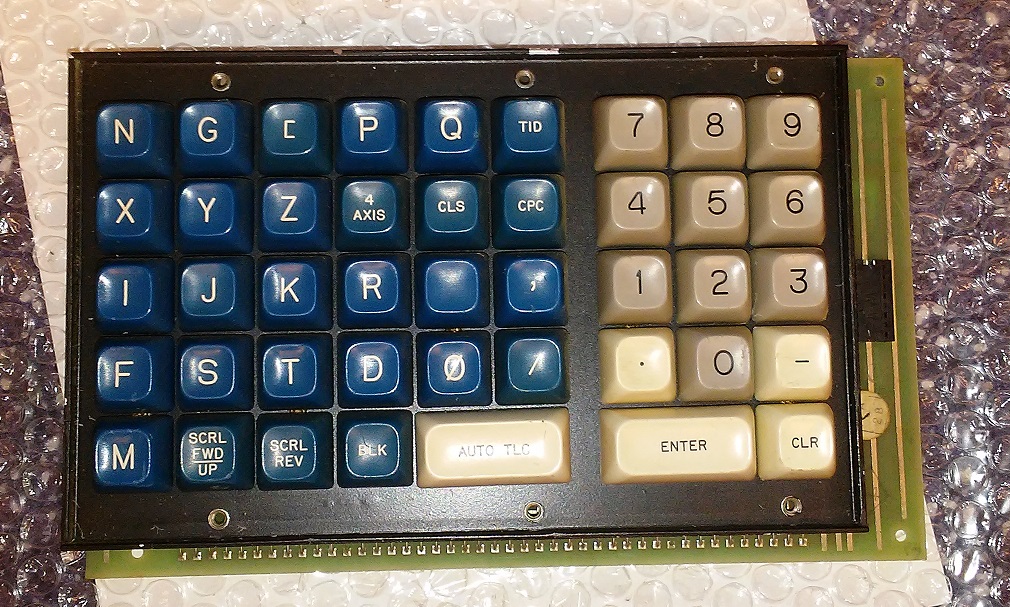

I came across this little KeyTronic magnetic reed switch board:

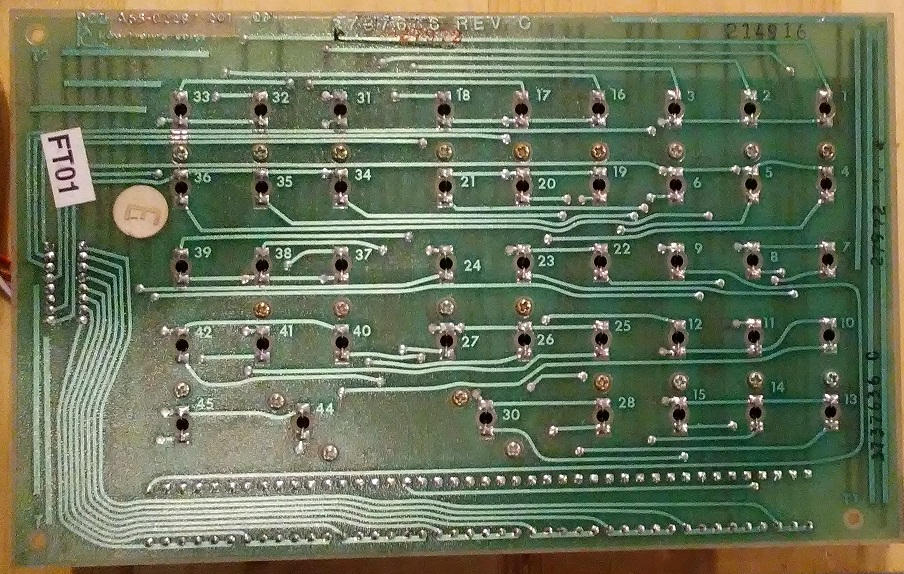

PCB back.jpg (306.01 KiB) Viewed 2064 times

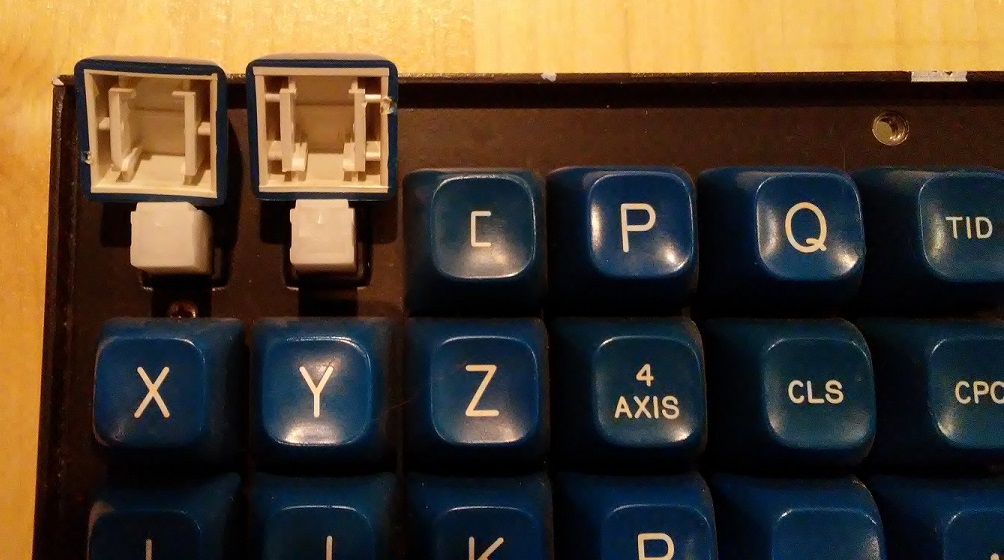

pulled cap.jpg (175.03 KiB) Viewed 2064 times

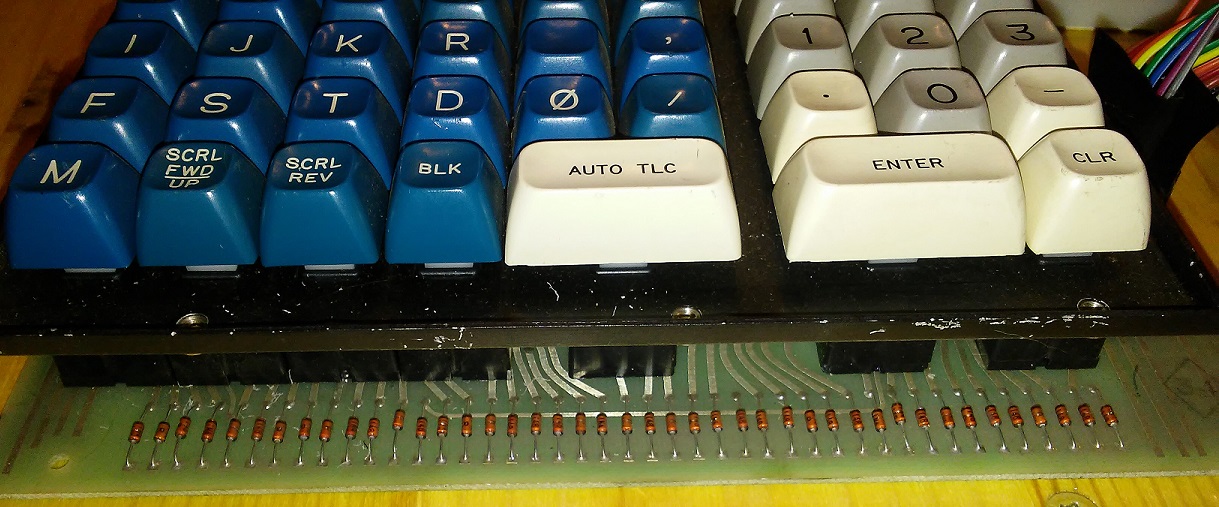

Row of diodes, one for each key:

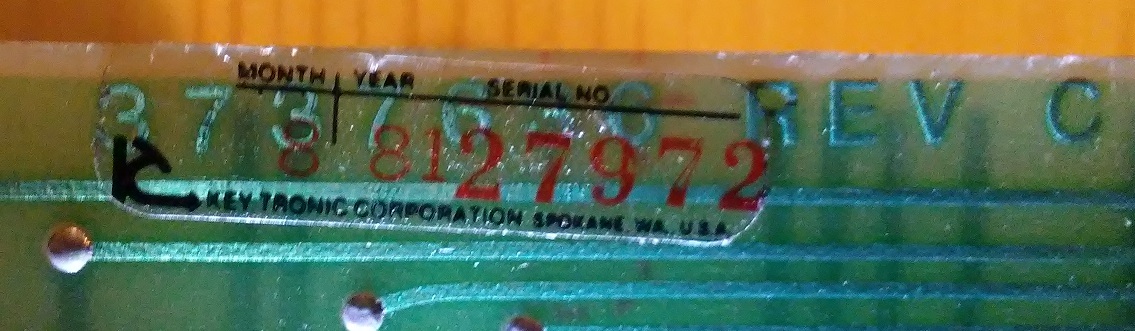

It's dated 8/81:

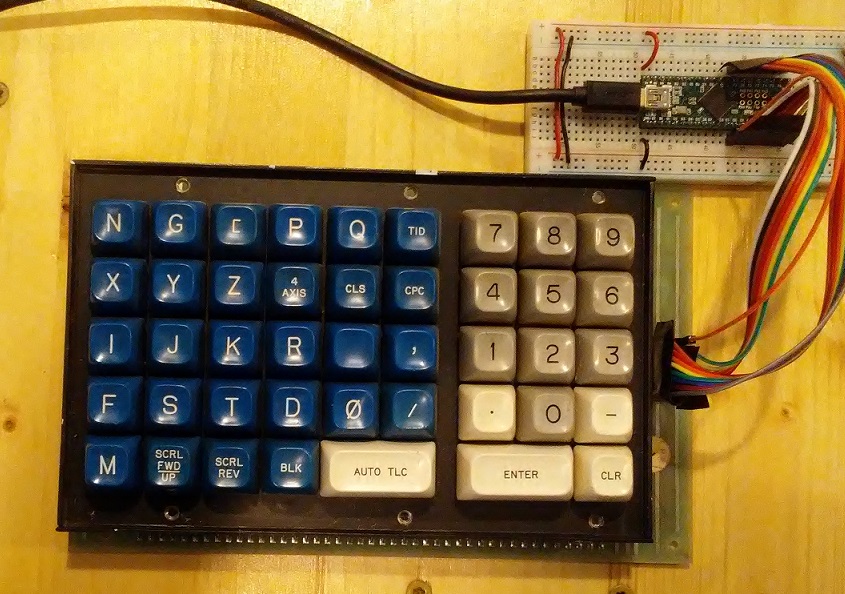

This one was easy to hook up - no on-board controller components, just the key matrix connected to a 16 pin socket - so straight to the Teensy:


I don't know what this board came from, but given the "4 AXIS" key it might have been a 4 axis milling machine of some sort.

I've programmed the keys to the letters and numbers as they are on the board and set the other keys to various nav cluster keys for now. I'm not really sure exactly what I'm going to do with it, but it's just kind of a neat little board and I really like the blue keycaps - too bad it's not a full set!
