Can someone identify this aftermarket Model M controller?

User avatar
Bitteneite

13 Jun 2021, 19:21

I found this Model M controller as I was browsing a Chinese site.
Seems to have a Type-C port and a solenoid header.
What's the name of it? Does anyone know a thread or any documentation about it?



Any help is appreciated.

User avatar
Weezer

13 Jun 2021, 19:32

I've not seen that one before. Interesting. Might be QMK?

jmaynard

14 Jun 2021, 14:27

Is that a 20-pin matrix socket on the left? Looks like the carrier board can handle multiple keyboards and multiple controllers.

User avatar
Bitteneite

14 Jun 2021, 15:24

I got this other picture from the seller. Way clearer too.
Seems to be a more recent revision as well: 24-May-2021
Not sure if it's of any help though.

https://i.imgur.com/GAEF9Cz.jpeg

User avatar
Bitteneite

14 Jun 2021, 15:30

jmaynard wrote:
14 Jun 2021, 14:27
Is that a 20-pin matrix socket on the left? Looks like the carrier board can handle multiple keyboards and multiple controllers.
Ooo, good eye!
I do recall my M Battleships having a longer socket, which would actually make sense if he was aiming for a one-size-fits-all controller.

jmaynard

14 Jun 2021, 16:29

Bitteneite wrote:
14 Jun 2021, 15:30
Ooo, good eye!
I do recall my M Battleships having a longer socket, which would actually make sense if he was aiming for a one-size-fits-all controller.
Yup. I'm working on multiple M122s, and while the clearer picture shows only a 16-pin socket, there's space for a 20.

Where'd you see this? I might snag one and see if it saves me having to make them myself.

User avatar
Bitteneite

14 Jun 2021, 16:48

jmaynard wrote:
14 Jun 2021, 16:29
Where'd you see this? I might snag one and see if it saves me having to make them myself.
It's a listing from Xianyu, which is based on Taobao, I believe.
It's all in Chinese, and I have no clue what the buttons do, but I just accidentally stumbled on it after clicking on many related IBM listings.

624245305

30 Jun 2021, 17:36

pcb....
Attachments
type-c-M101.7z
(632.62 KiB) Downloaded 113 times

User avatar
an_achronism

30 Jun 2021, 18:00

The idea of putting a solenoid in a Model M is extremely funny to me and I hope somebody has done it and/or is going to do it

User avatar
Go-Kart

30 Jun 2021, 18:36

an_achronism wrote:
30 Jun 2021, 18:00
The idea of putting a solenoid in a Model M is extremely funny to me and I hope somebody has done it and/or is going to do it
Why not be the first yourself :twisted:

User avatar
Bitteneite

30 Jun 2021, 18:46

Go-Kart wrote:
30 Jun 2021, 18:36
Why not be the first yourself :twisted:
(Rolls sleeves)
Just you wait ;)

User avatar
Bitteneite

30 Jun 2021, 20:48

I got my hands on it :twisted:

User avatar
Bjerrk

30 Jun 2021, 21:02

Bitteneite wrote:
30 Jun 2021, 20:48
I got my hands on it :twisted:
Haha! That is wicked :D

User avatar
raoulduke-esq

30 Jun 2021, 21:15

Screw a floss mod; I'm tryin' to get on this level!

User avatar
Go-Kart

30 Jun 2021, 21:47

Glorious!

624245305

01 Jul 2021, 15:58

firmware
Attachments
ibm-m101-via.7z
(48.81 KiB) Downloaded 72 times

tiltowait

04 Aug 2021, 20:57

Is there any easy way to buy this in the US?

User avatar
Bitteneite

07 Aug 2021, 04:46

tiltowait wrote:
04 Aug 2021, 20:57
Is there any easy way to buy this in the US?
I had to send it through a proxy, which took a while before I got it in my hands.

User avatar
RoastPotatoes

09 Nov 2022, 15:18

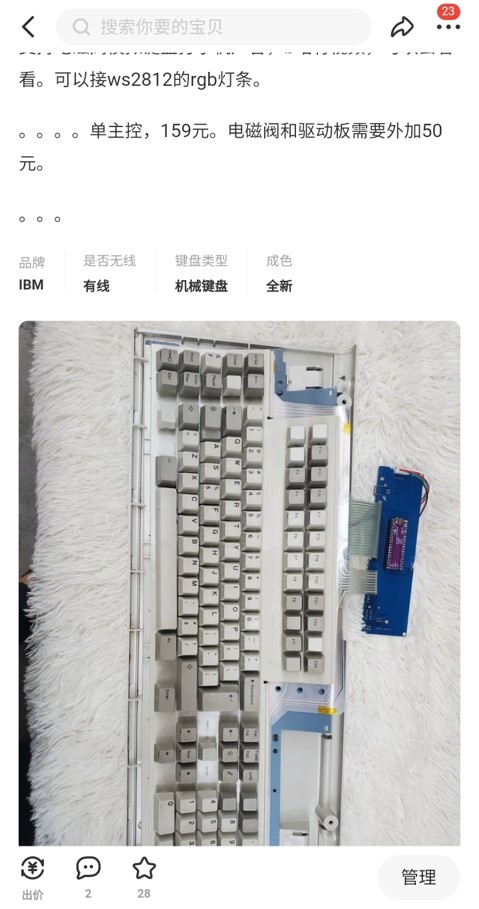

Can anyone help track down the taobao link for this controller? I emailed the creator but was just sent a new picture of the listing, but I'm not able to track down the listing from the image.

User avatar
Crizender

09 Nov 2022, 15:22

RoastPotatoes wrote:
09 Nov 2022, 15:18
Can anyone help track down the taobao link for this controller? I emailed the creator but was just sent a new picture of the listing, but I'm not able to track down the listing from the image.
https://h5.m.goofish.com/item?id=656161 ... 011849.0.0

I believe this is it, correct me if I'm wrong.

User avatar
RoastPotatoes

09 Nov 2022, 15:24

Crizender wrote:
09 Nov 2022, 15:22
RoastPotatoes wrote:
09 Nov 2022, 15:18
Can anyone help track down the taobao link for this controller? I emailed the creator but was just sent a new picture of the listing, but I'm not able to track down the listing from the image.
https://h5.m.goofish.com/item?id=656161 ... 011849.0.0

I believe this is it, correct me if I'm wrong.
Wow, that was quick! Looks to be it, thank you.

User avatar
RoastPotatoes

16 Dec 2022, 18:27

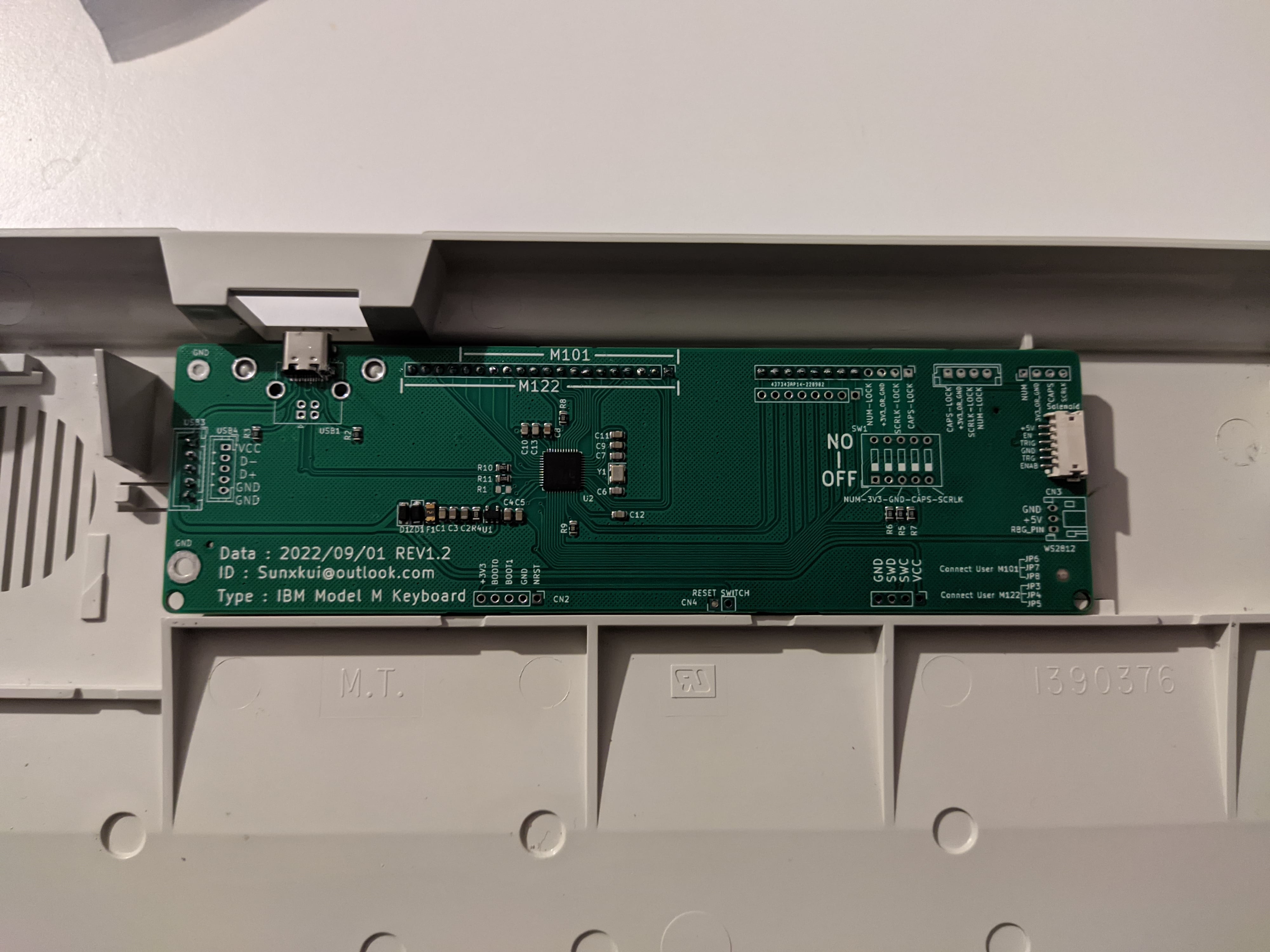

So I got one! Unfortunately it doesn't fit in the SSK case.

User avatar
RoastPotatoes

16 Dec 2022, 18:59

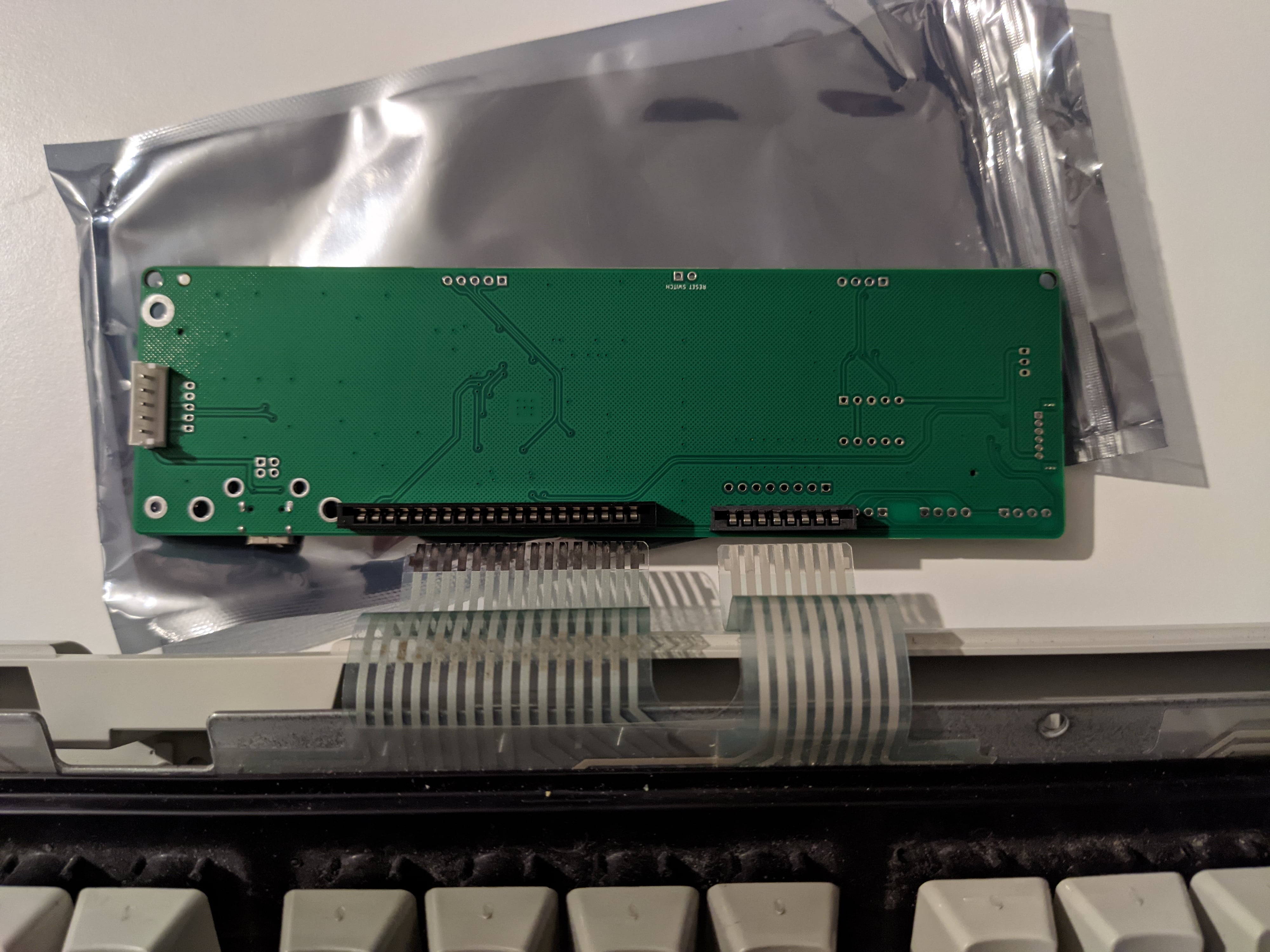

Am I being stupid or is this design slightly upside down? It is as pictured tbf but the old revision makes sense with the cable sockets on the top.
Do you think if I remove and solder the sockets to the top this will work?

User avatar
RoastPotatoes

18 Dec 2022, 14:53

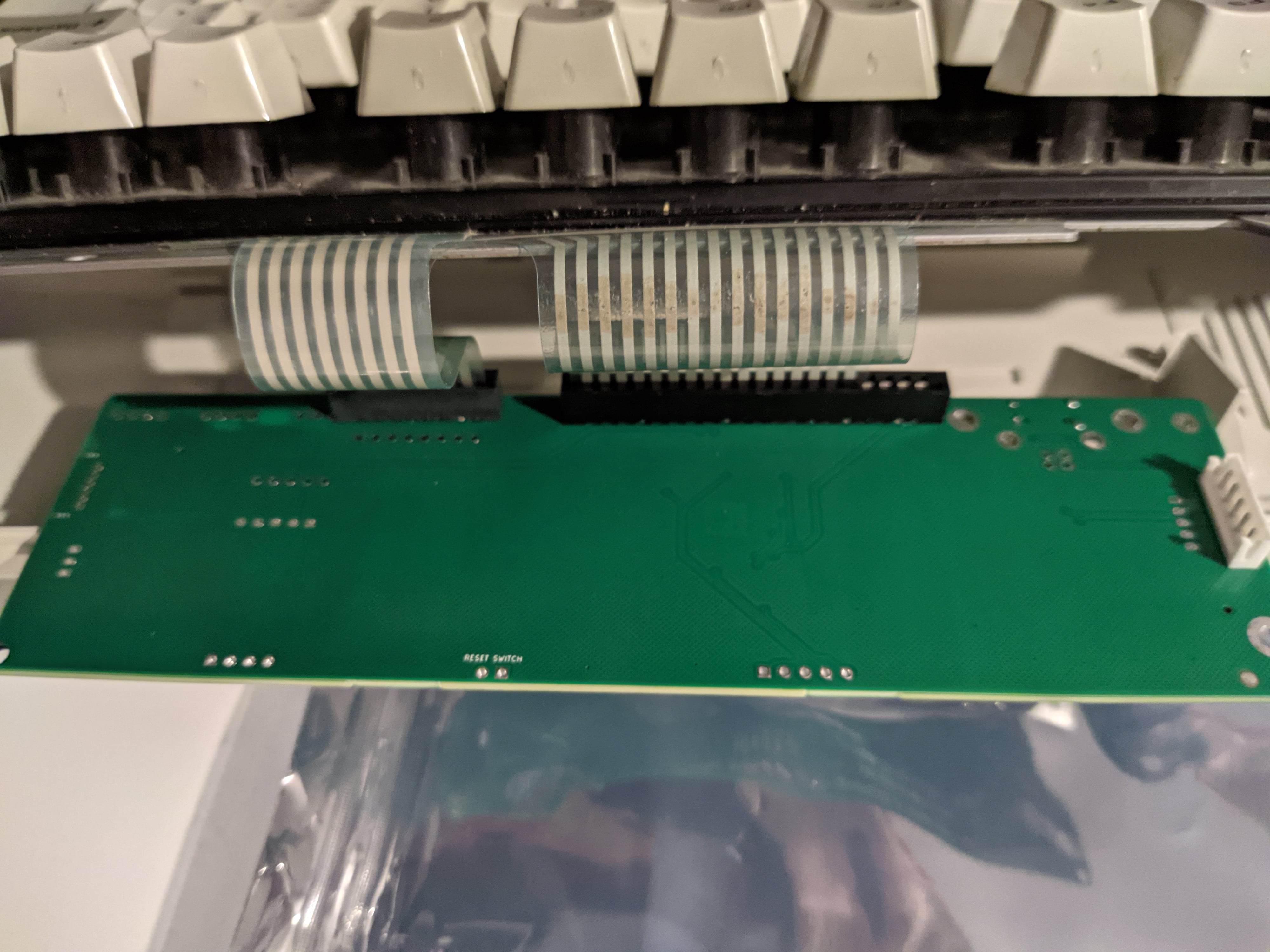

So I've flipped the sockets to the other side and it still works as much as it did before I think.
Now I need to figure out the firmware.
624245305 wrote:
01 Jul 2021, 15:58
firmware
Do you have the firmware for this revision?

User avatar
RoastPotatoes

22 Dec 2022, 10:46

Fully up and running! Going to try get this added to qmk repo.
EDIT: wrote about this on my blog
