Honeywell Micro Switch keyboard

User avatar
snuci
Vintage computer guy

20 Feb 2017, 19:48

Here’s an interesting keyboard with a ghostly white colour scheme. I’m not exactly sure what terminal this goes with but it is a Honeywell keyboard. The original owner modified it to work with a more recent computer so you can see some additions.

Internally, it is a Micro Switch keyboard mechanism with SD series hall-effect key switches and the usually thick key caps.

Here are some pics:

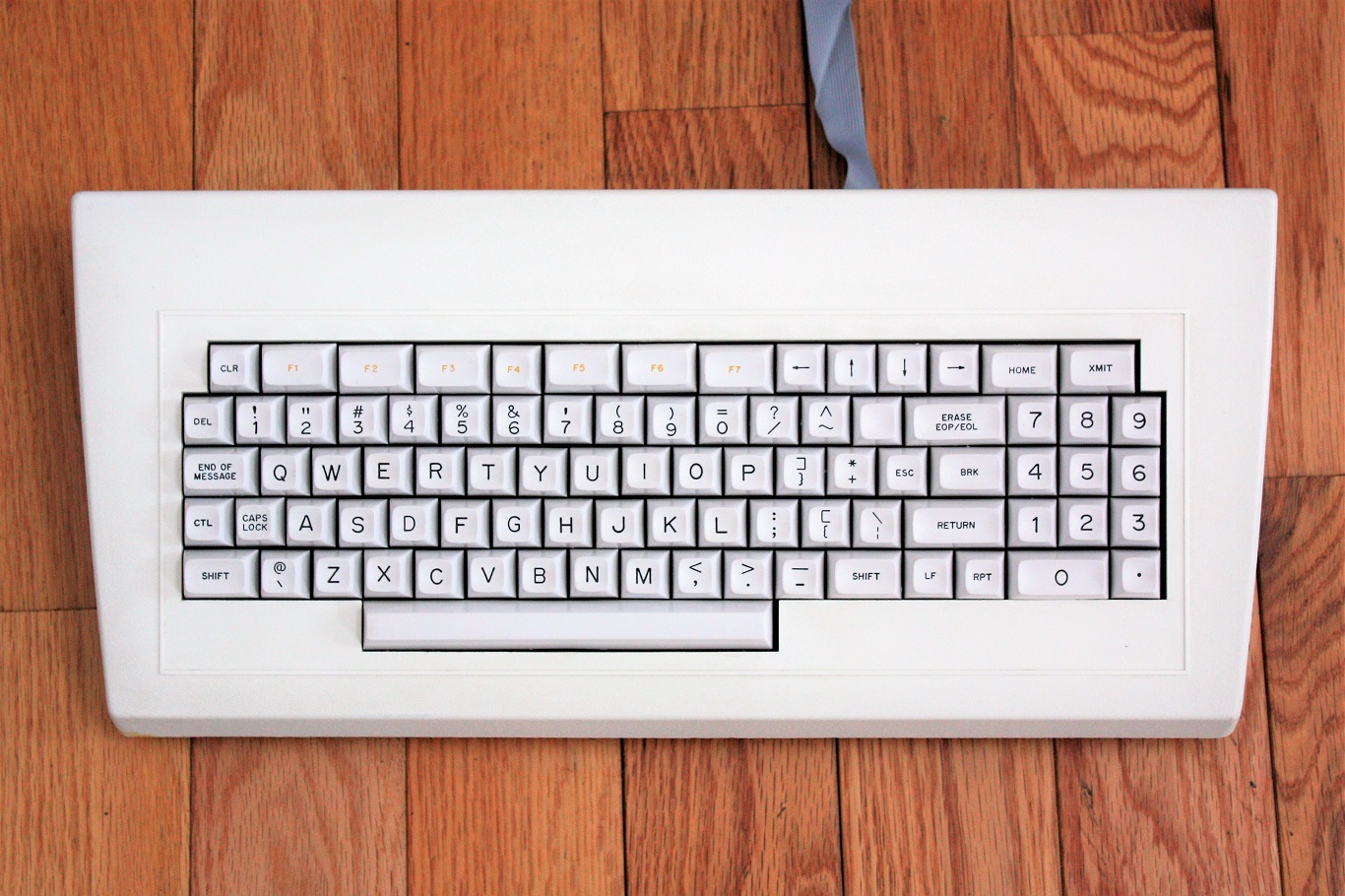

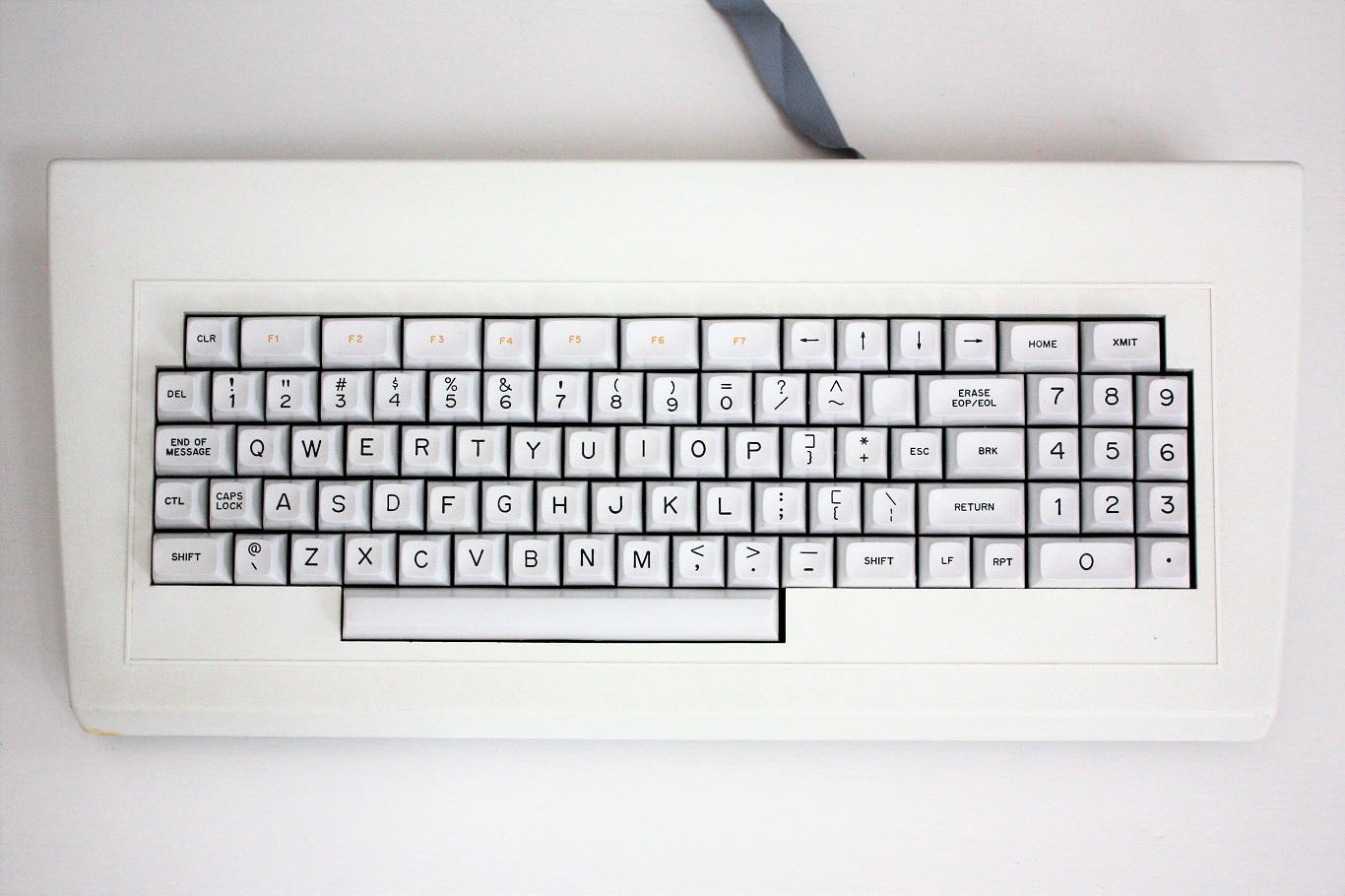

Honeywell Micro Switch - keyboard top
Honeywell Micro Switch - keyboard top
TI Micro Switch - keyboard top.JPG (323.69 KiB) Viewed 1216 times
Honeywell Micro Switch - keyboard with dark background
Honeywell Micro Switch - keyboard with dark background
TI Micro Switch - keyboard with dark background.JPG (436.71 KiB) Viewed 1216 times

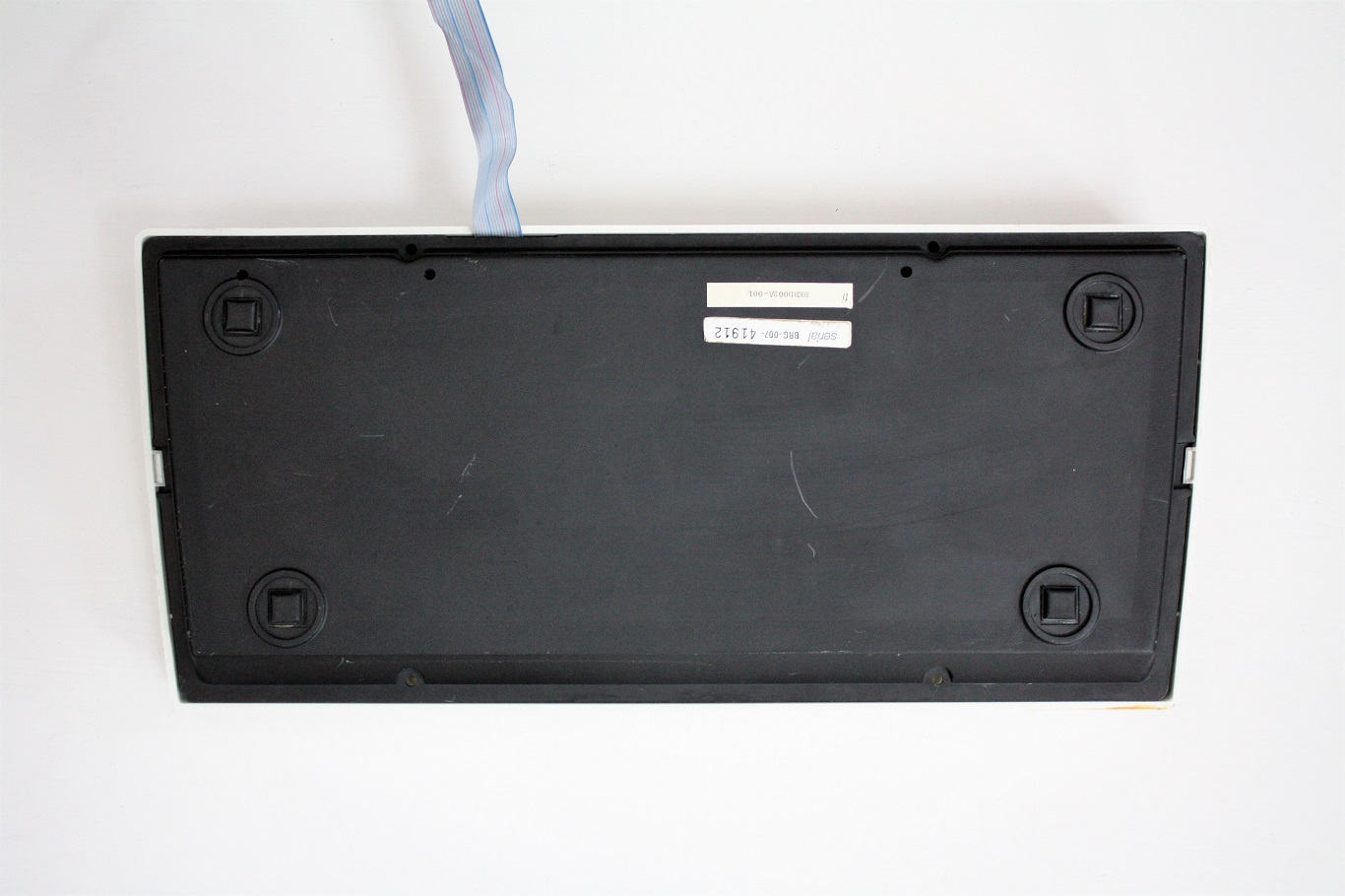

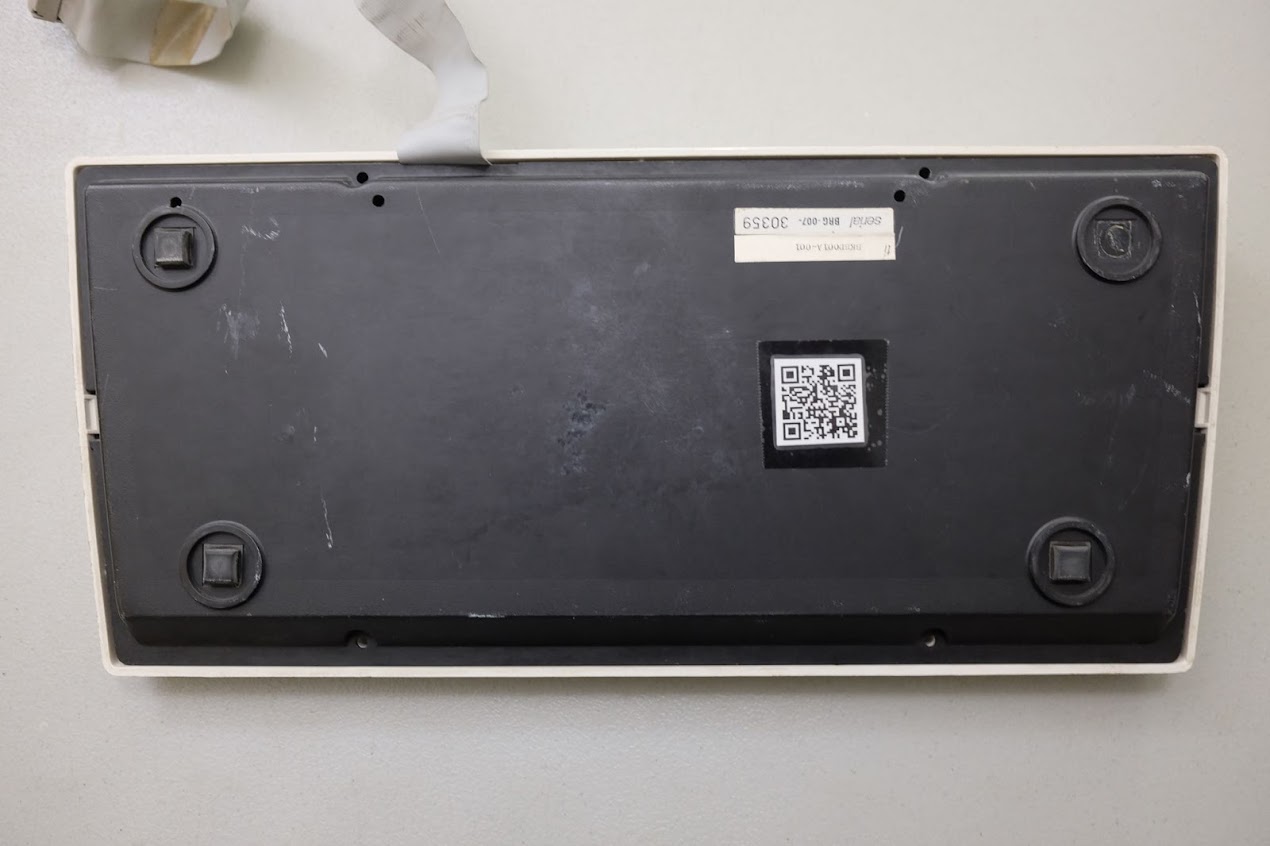

Honeywell Micro Switch - keyboard back
Honeywell Micro Switch - keyboard back
TI Micro Switch - keyboard back.JPG (247.64 KiB) Viewed 1216 times

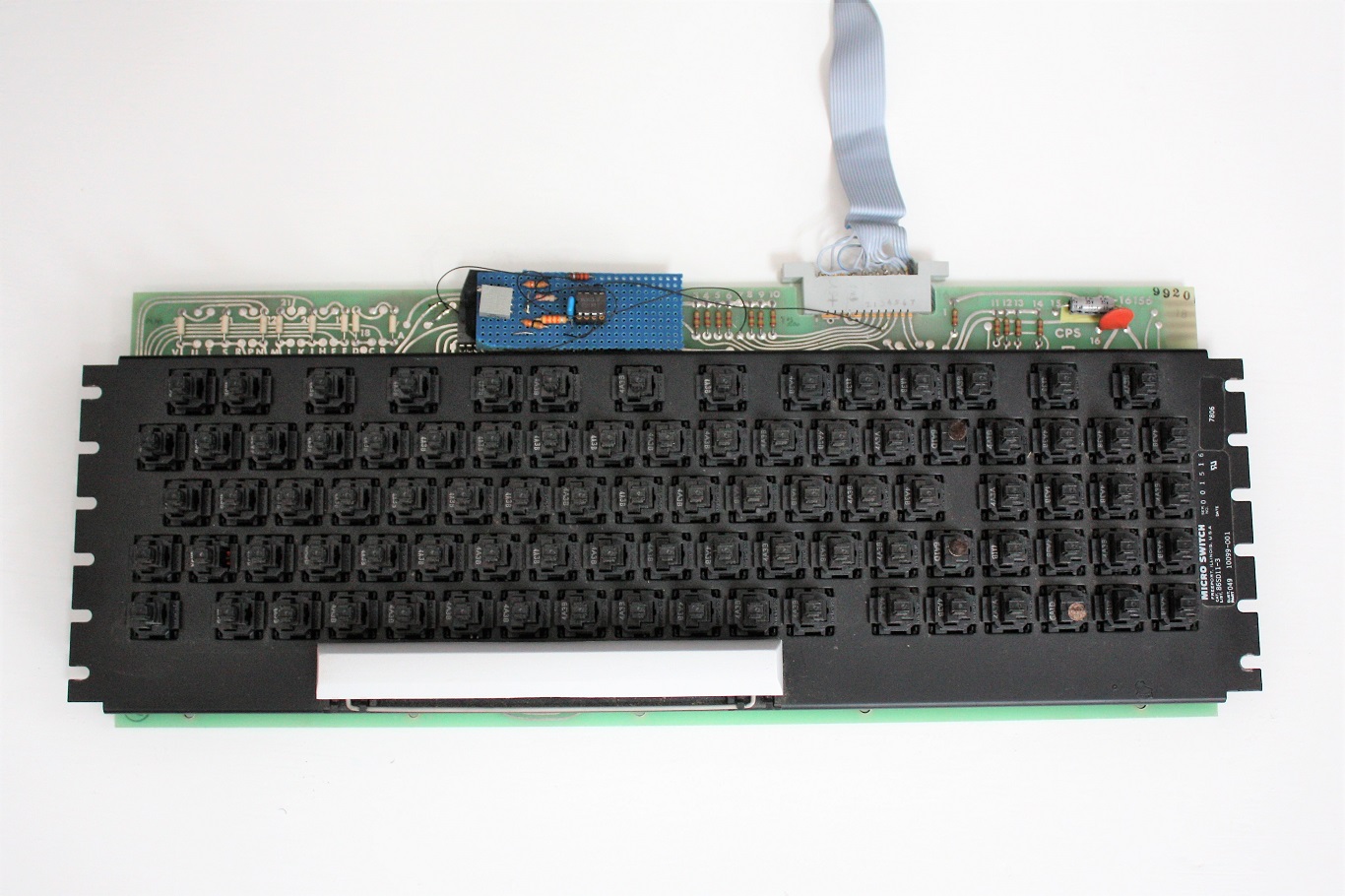

Honeywell Micro Switch - keyboard mechanism top
Honeywell Micro Switch - keyboard mechanism top
TI Micro Switch - keyboard mechanism top.JPG (320.21 KiB) Viewed 1216 times

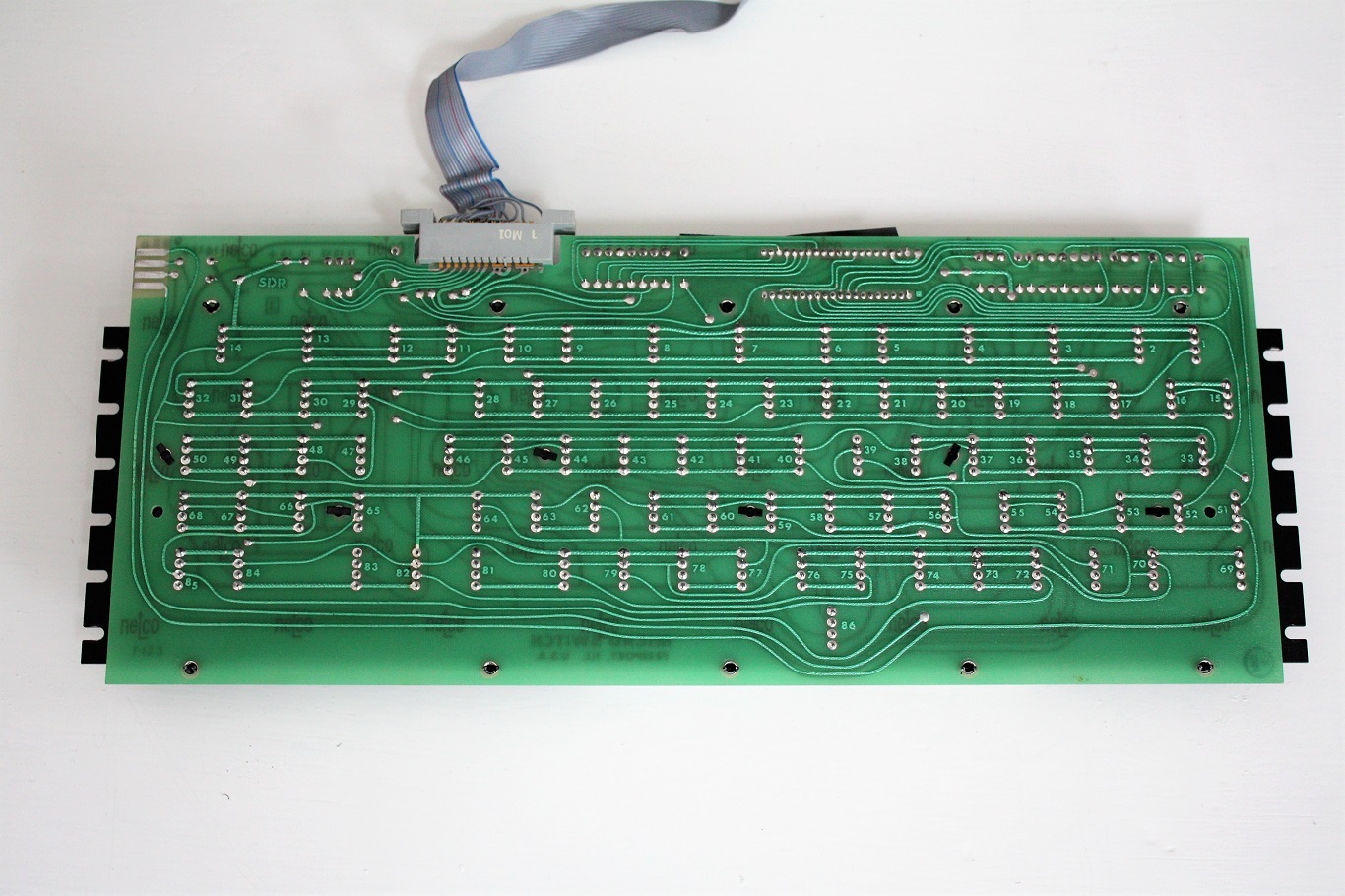

Honeywell Micro Switch - keyboard mechanism bottom
Honeywell Micro Switch - keyboard mechanism bottom
TI Micro Switch - keyboard mechanism bottom.JPG (399.48 KiB) Viewed 1216 times

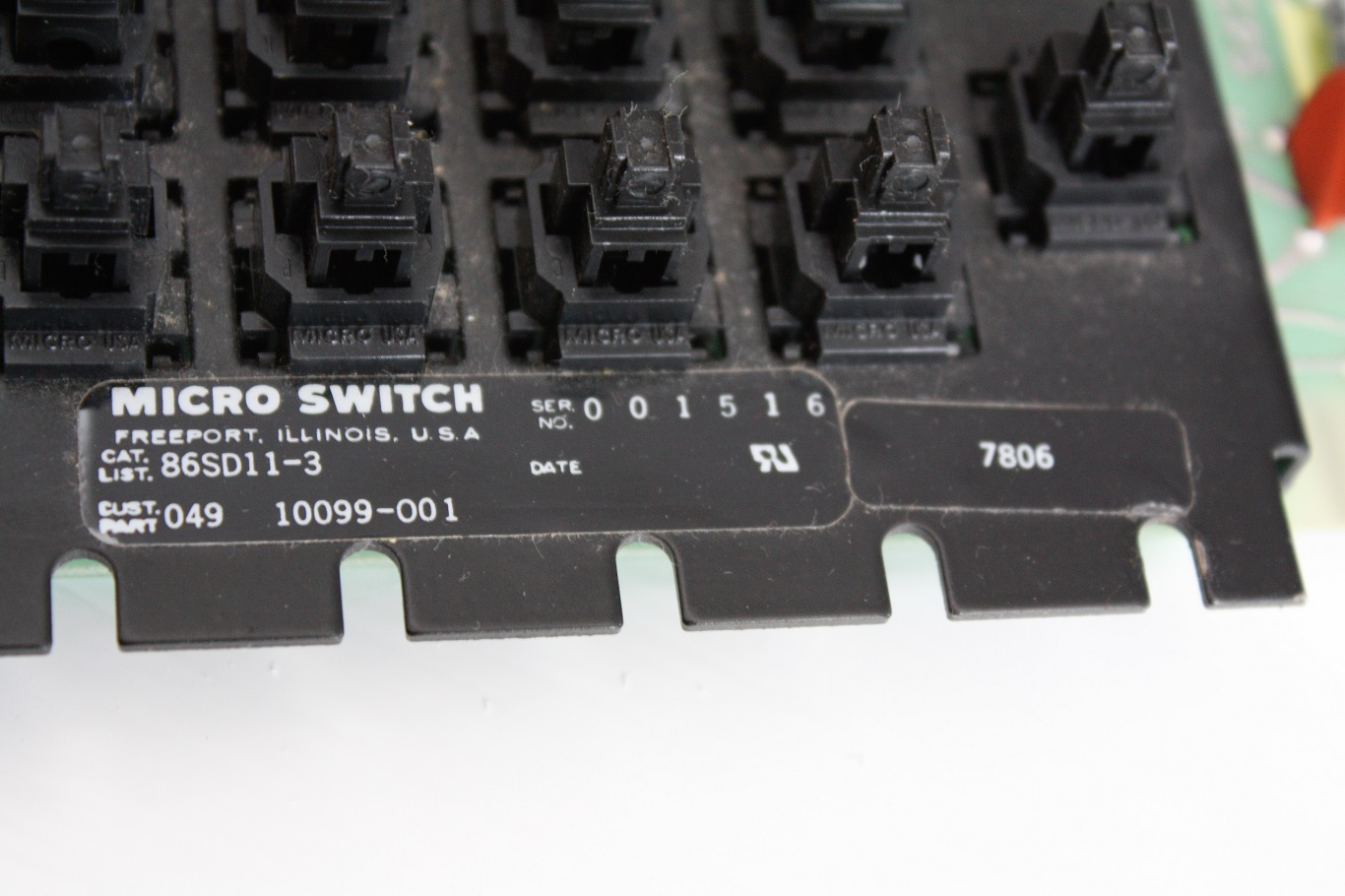

Honeywell Micro Switch - keyboard mechanism markings
Honeywell Micro Switch - keyboard mechanism markings
TI Micro Switch - keyboard mechanism markings.JPG (280.2 KiB) Viewed 1216 times

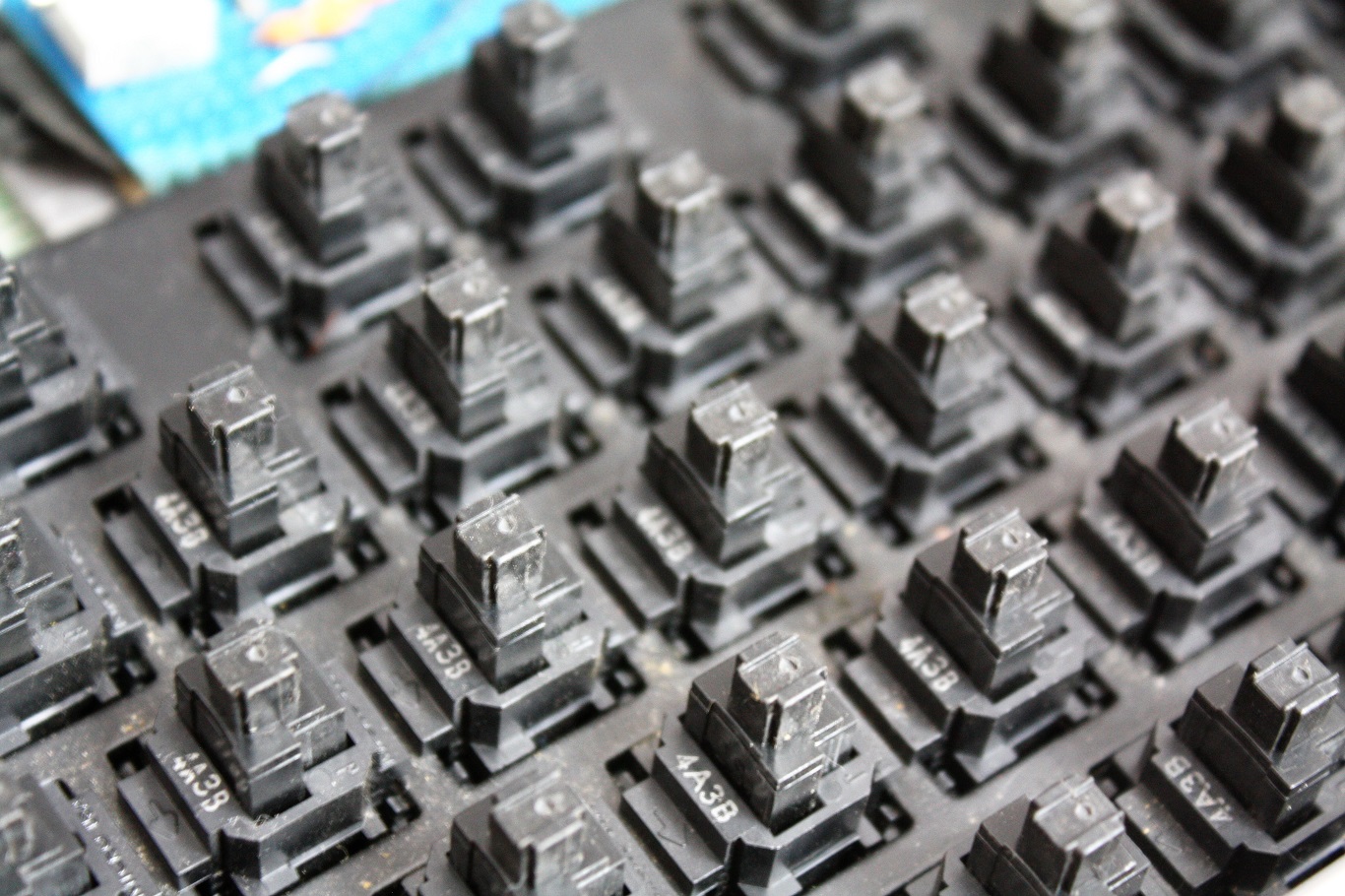

Honeywell Micro Switch - key switches
Honeywell Micro Switch - key switches
TI Micro Switch - key switches.JPG (440.64 KiB) Viewed 1216 times

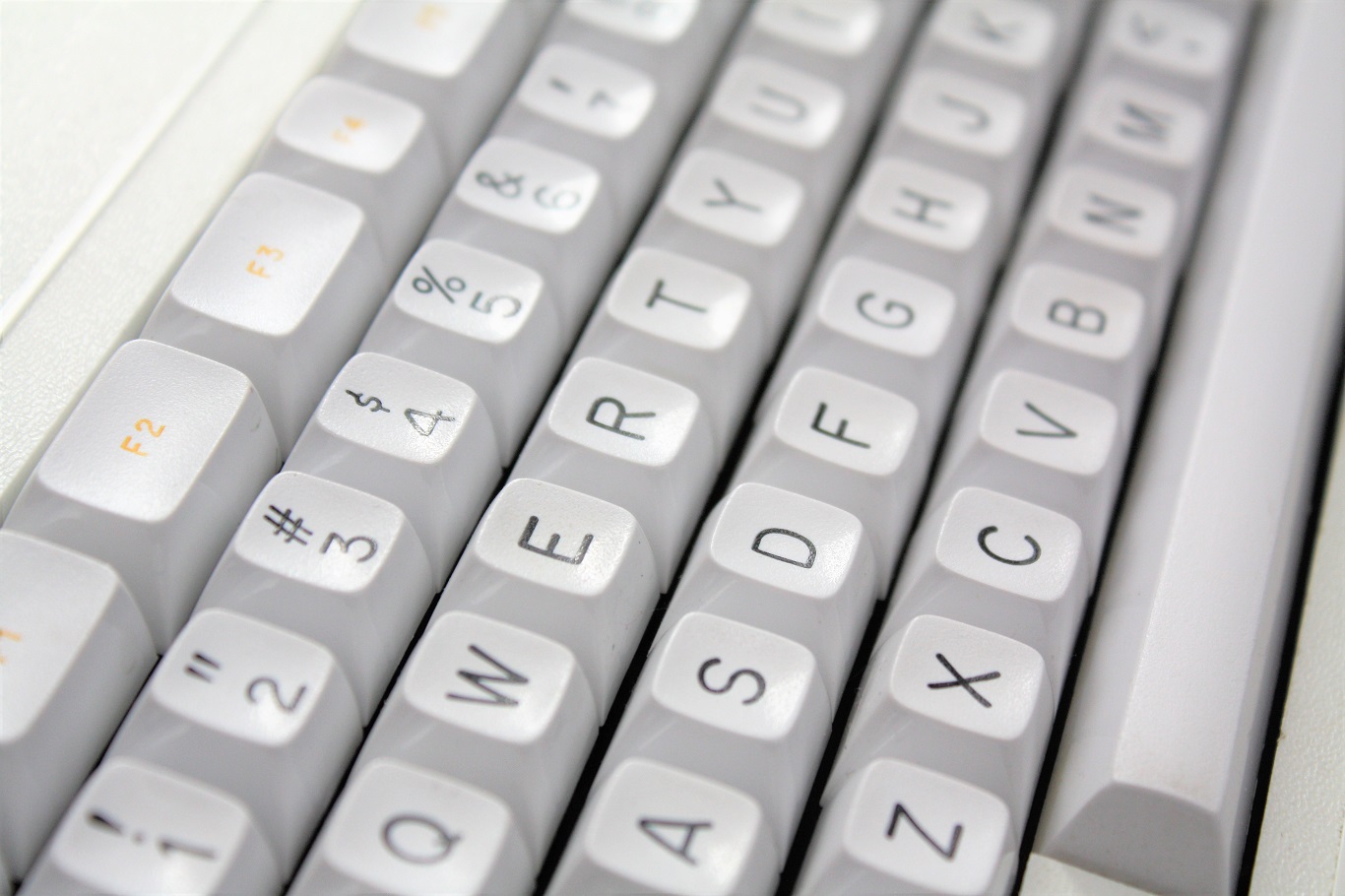

Honeywell Micro Switch - key tops
Honeywell Micro Switch - key tops
TI Micro Switch - key tops.JPG (264.86 KiB) Viewed 1216 times

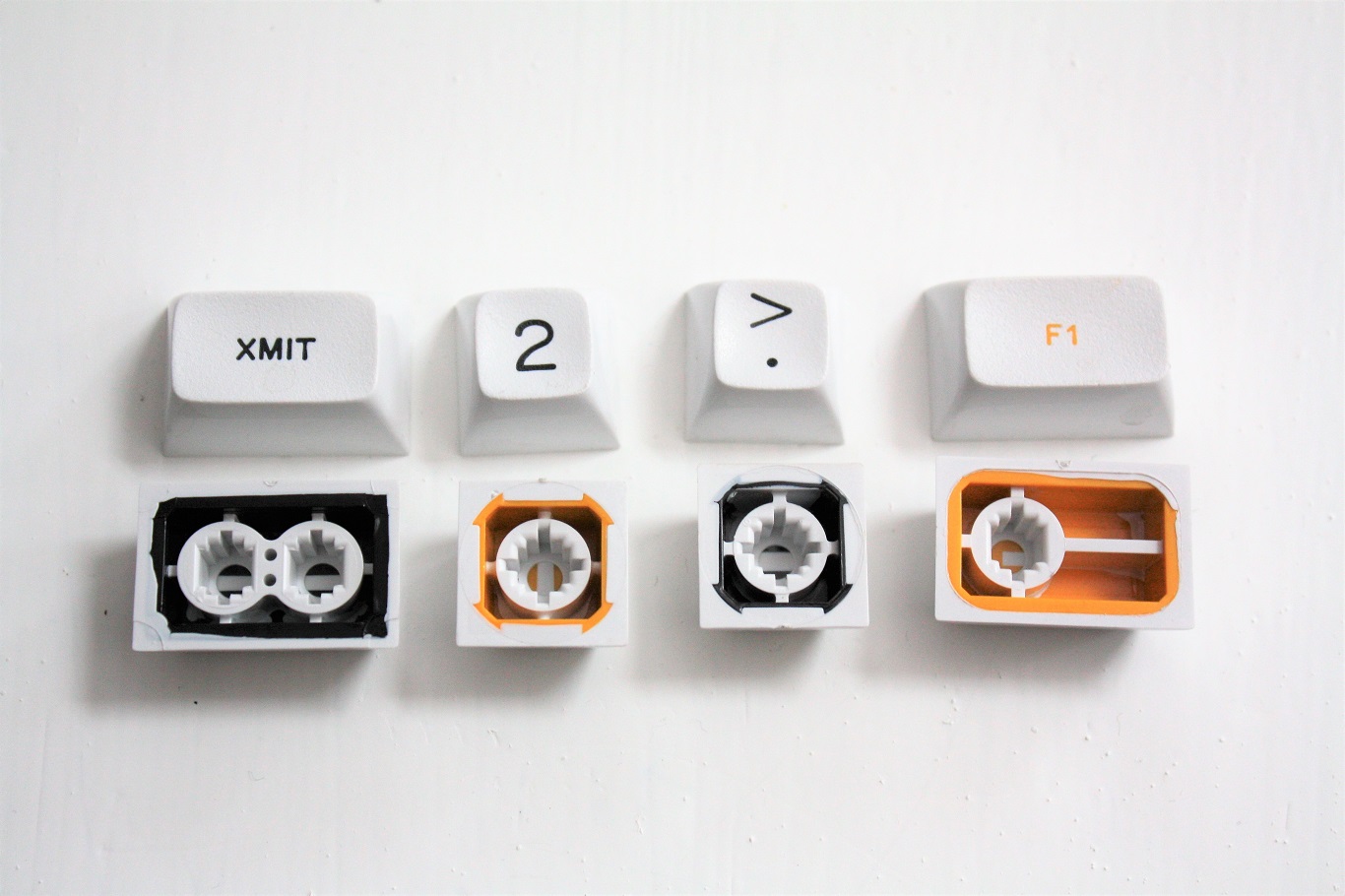

Honeywell Micro Switch - key caps
Honeywell Micro Switch - key caps
TI Micro Switch - key caps.JPG (252.87 KiB) Viewed 1216 times
Honeywell Micro Switch - keyboard markings
Honeywell Micro Switch - keyboard markings
TI Micro Switch - keyboard markings.JPG (381.58 KiB) Viewed 1216 times
Last edited by snuci on 20 Feb 2017, 20:25, edited 2 times in total.

User avatar
XMIT
[ XMIT ]

20 Feb 2017, 20:07

Ooh, a white XMIT key!

This is a Honeywell BRG terminal keyboard. I think the TI marking is not Texas Instruments but perhaps "terminal identifier".

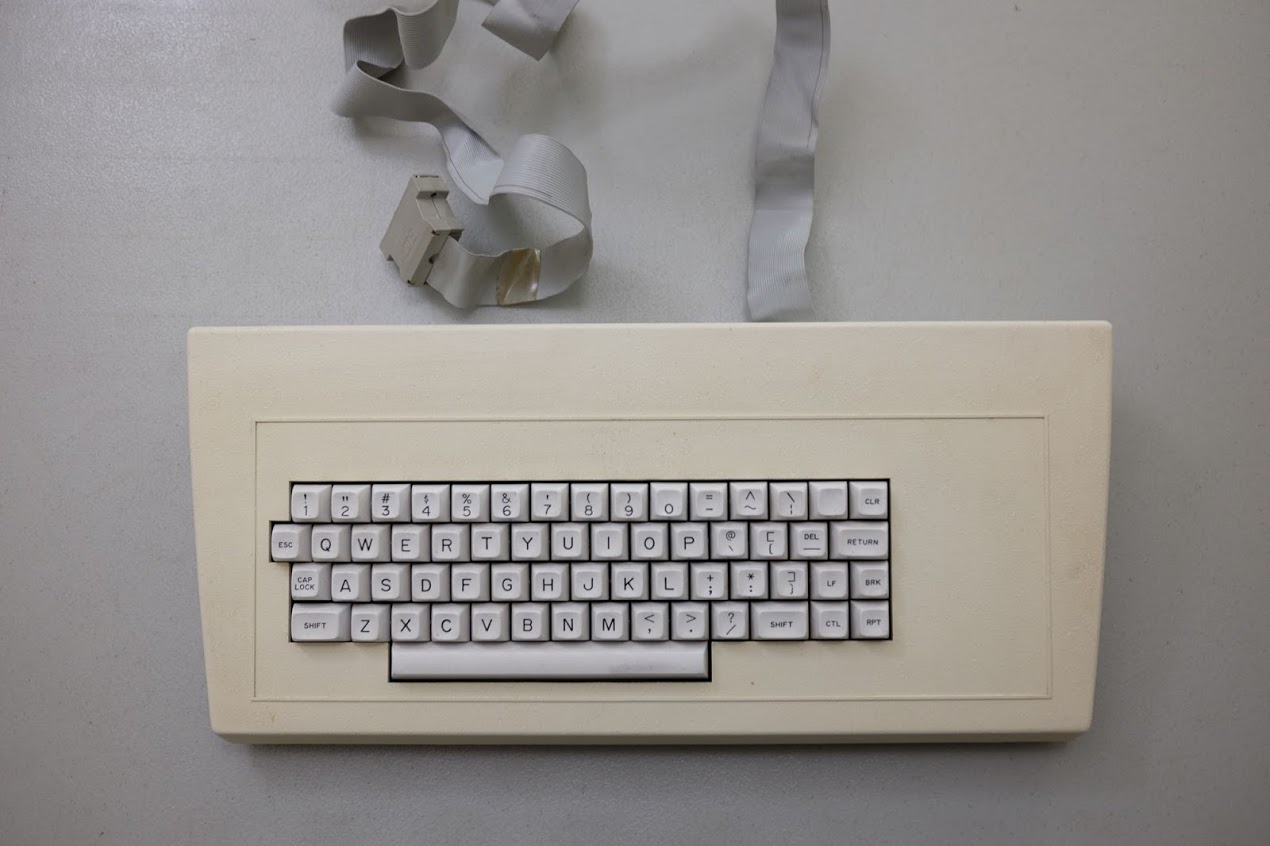

XMIT136 looks quite a lot like this board. It also has Micro Switch Hall Effect switches and non-profiled double shot spherical key caps.

User avatar
snuci
Vintage computer guy

20 Feb 2017, 20:23

Well, I think yours is the same line minus the function keys, numeric keypad and the white XMIT key :). I think you may be right. I checked my Honeywell VIP terminal and the bottom of the keyboard has a similar "ti" label.

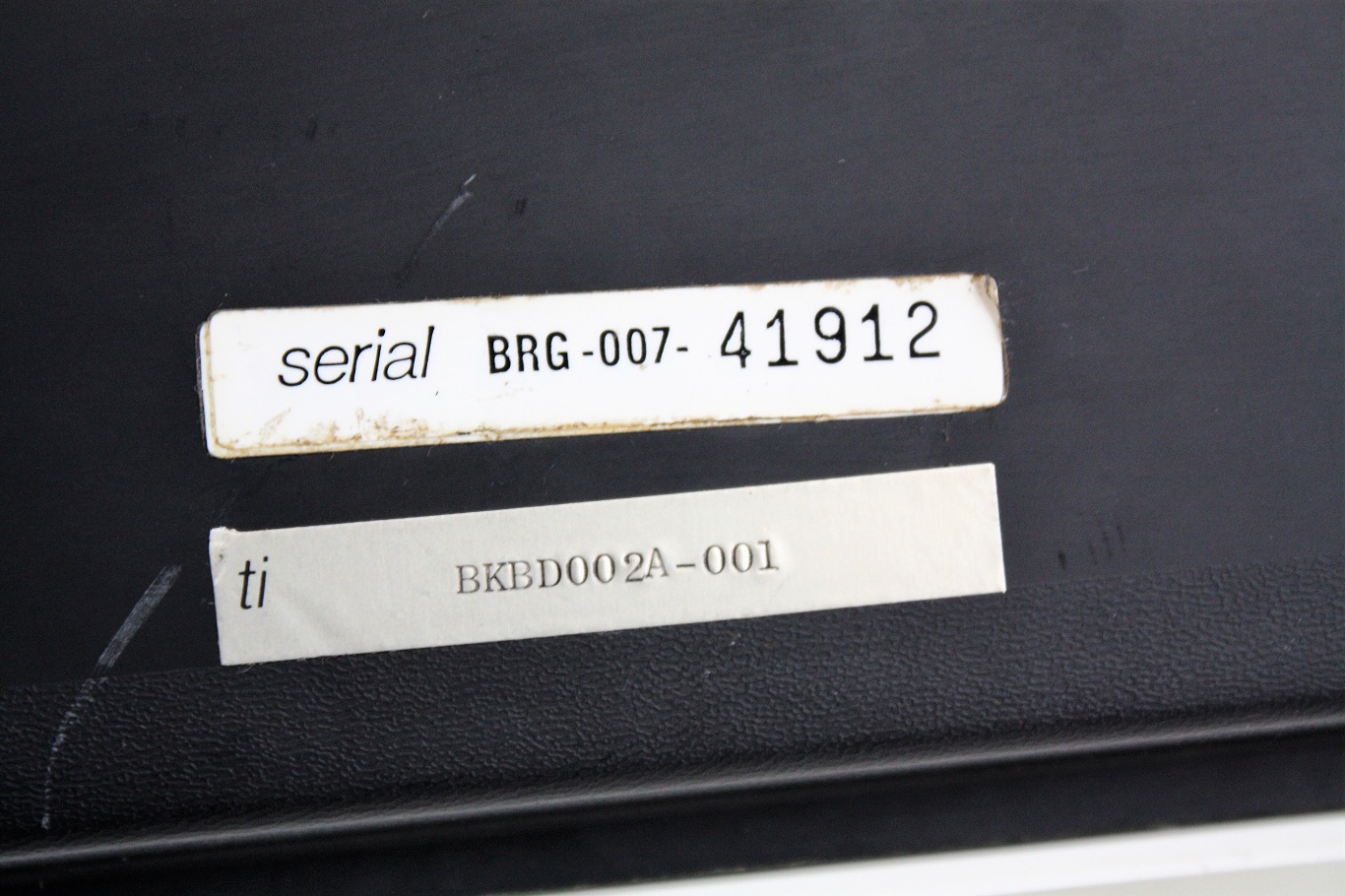

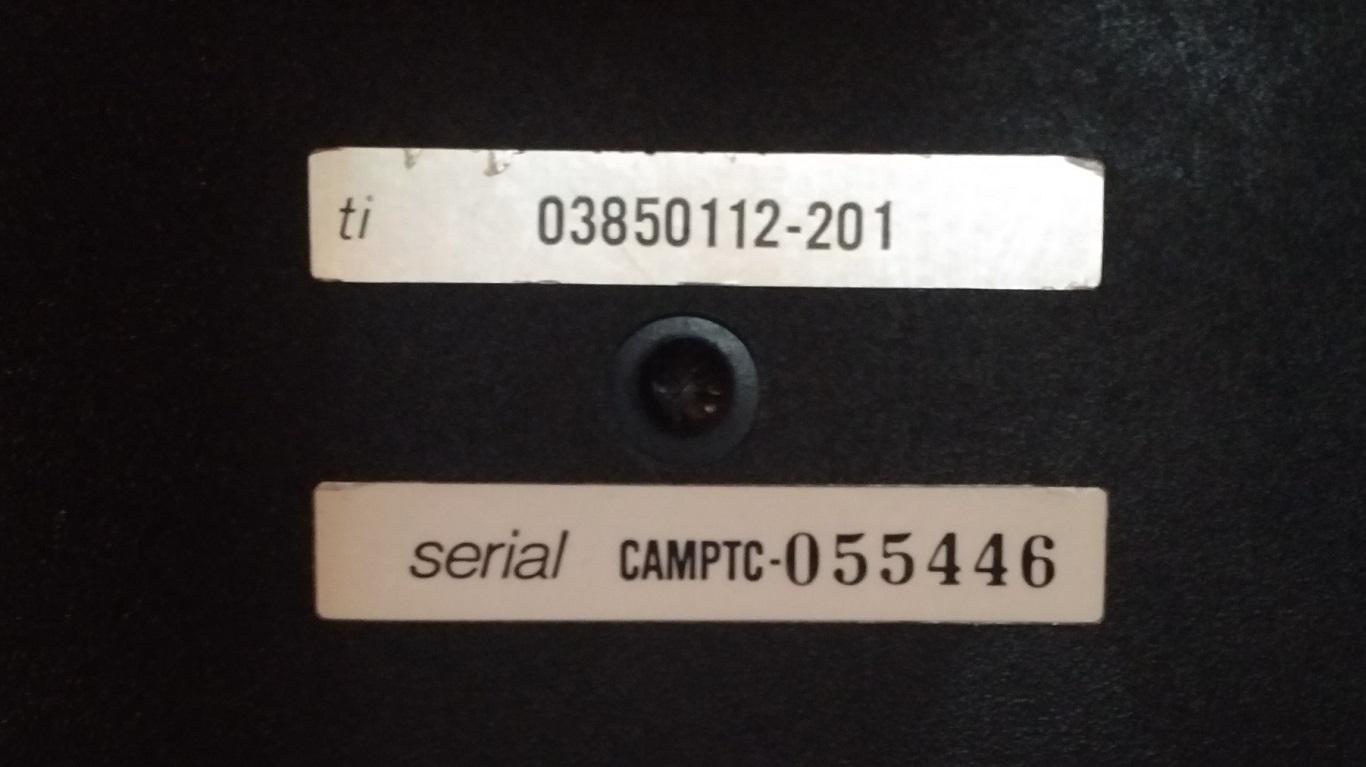

Honeywell VIP terminal keyboard bottom labels
Honeywell VIP terminal keyboard bottom labels
Honeywell Terminal keyboard serial.jpg (190 KiB) Viewed 1200 times
Time to change he name.

User avatar
seebart
Offtopicthority Instigator

20 Feb 2017, 21:01

Nice, XMIT got the "TKL" version.

Slom

20 Feb 2017, 21:30

Nice one :)

Can you give us more details about the modifications? Was the original controller IC removed?

User avatar
zslane

20 Feb 2017, 21:34

Hey snuci, which VIP terminal(s) do you have?

User avatar
snuci
Vintage computer guy

20 Feb 2017, 21:40

Slom wrote: Nice one :)

Can you give us more details about the modifications? Was the original controller IC removed?
Sorry, camera battery is toast. I'll try to take pics but the controller, if I recall, is still there.
zslane wrote: Hey snuci, which VIP terminal(s) do you have?
Honeywell VIP 7201. Looks almost identical to my LSI ADM22 so I never took pics.

User avatar
ideus

20 Feb 2017, 23:26

What language does this support?

User avatar
XMIT
[ XMIT ]

21 Feb 2017, 02:10

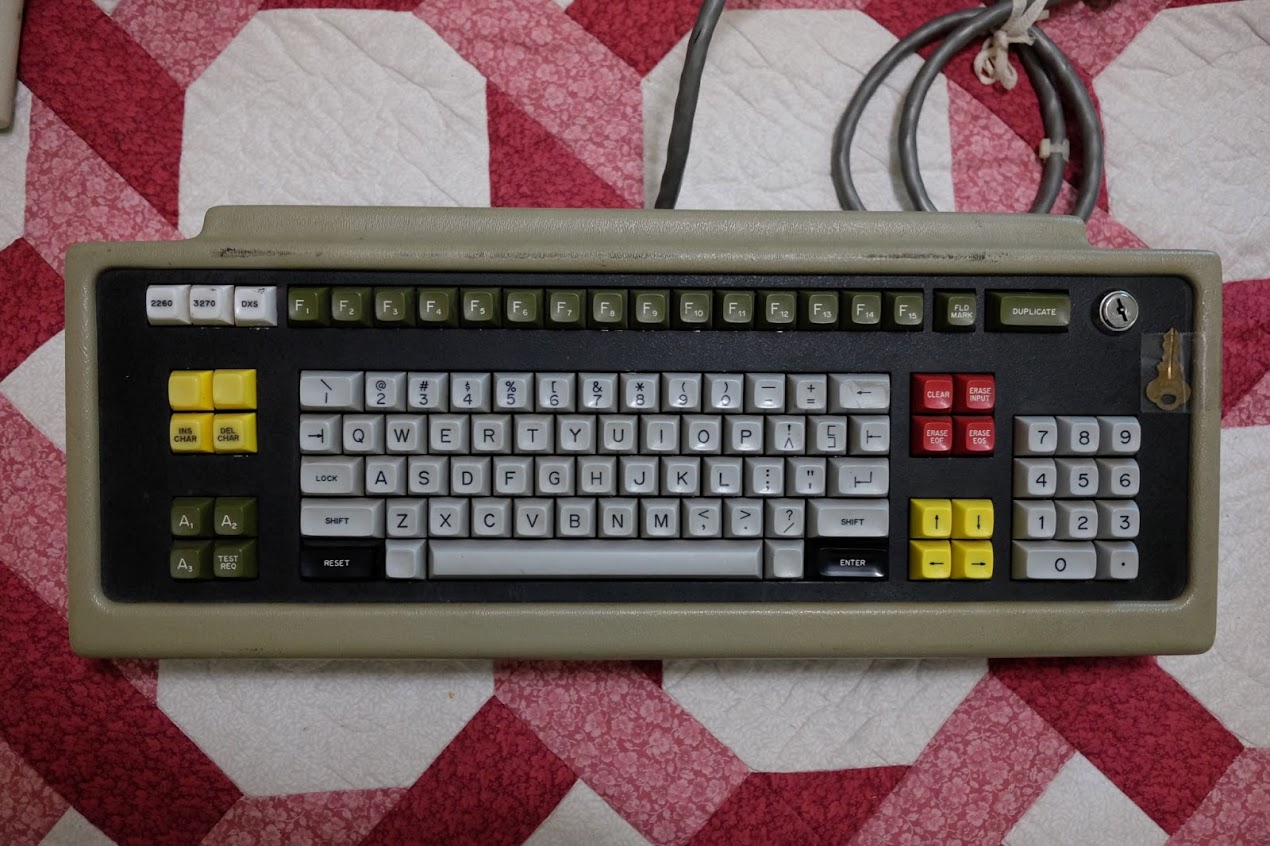

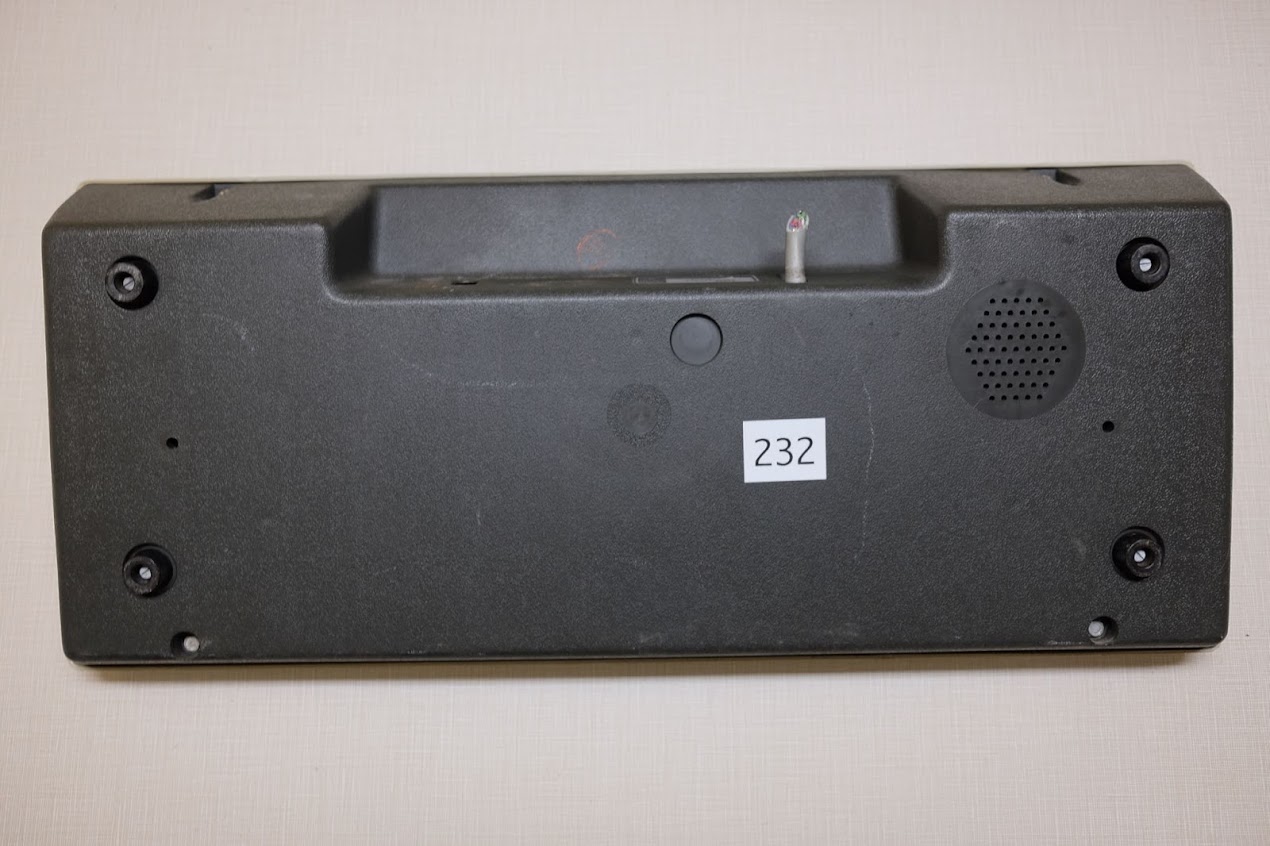

Now, if you want to see a real TI Micro Switch Keyboard, that would be XMIT232, a board that I cleaned up some for ohaimark. I think this one was from a TI 914.
Or, perhaps XMIT101, from a TI 911 terminal.

User avatar
seebart
Offtopicthority Instigator

21 Feb 2017, 11:22

I know your TI 911 terminal, I had not seen that TI 914. Most impressive, thanks for sharing.

User avatar
zslane

21 Feb 2017, 19:01

I'd love to see a photo of a VIP 7800/7801. Can't seem to find one on the interwebs anywhere.

User avatar
Harshmallow

23 Feb 2017, 04:45

All your hall effect are belong to me now.

Snuci, I love that white board, with those beautiful orange/white doubleshot F keys! It looks very symmetrical. They should have made a small case for XMIT's version, but I guess that would have cost more money (or would it actually be less in the long run? Bahh).
