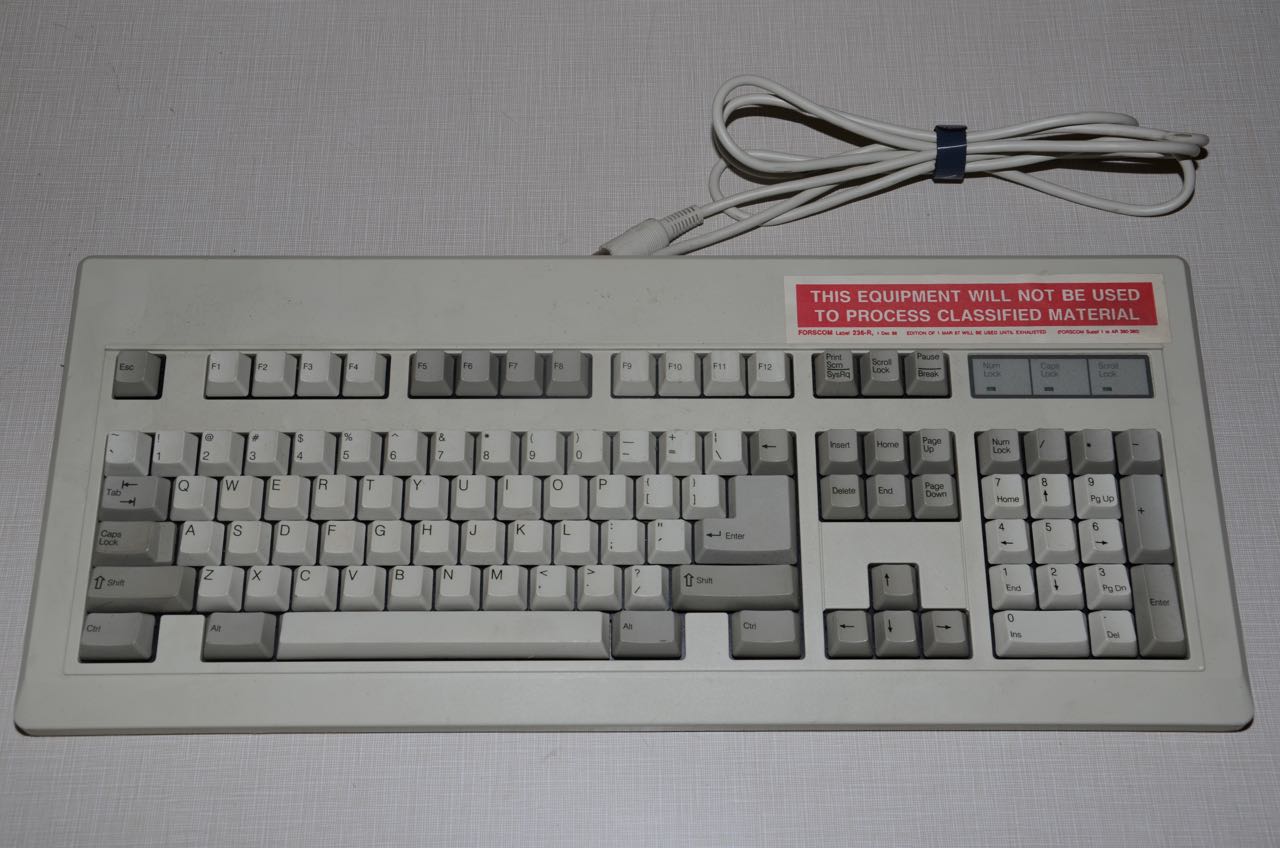

NMB HiTek Space Invaders Black Keyboard

User avatar
XMIT
[ XMIT ]

23 Feb 2015, 04:11

[Full resolution photos are at https://plus.google.com/photos/10439222 ... 6151048769]

I am working through about a dozen keyboards from this weekend's trip to Electronics Plus. The first I tore down was a NMB HiTek Space Invaders Black keyboard. We've seen this one before so more than anything this was practice for me in taking photos with a new flash (thanks Cindy!) and just seeing what I could do. Photo tips for future keyboard rounds welcome. Also please let me know if there is anything I missed.

30 photos total. Let's jump right in shall we?

The keyboard came from a government user. Surprisingly pristine for what I'm guessing by the date is a late 1980s keyboard. I did not clean it after picking it up:

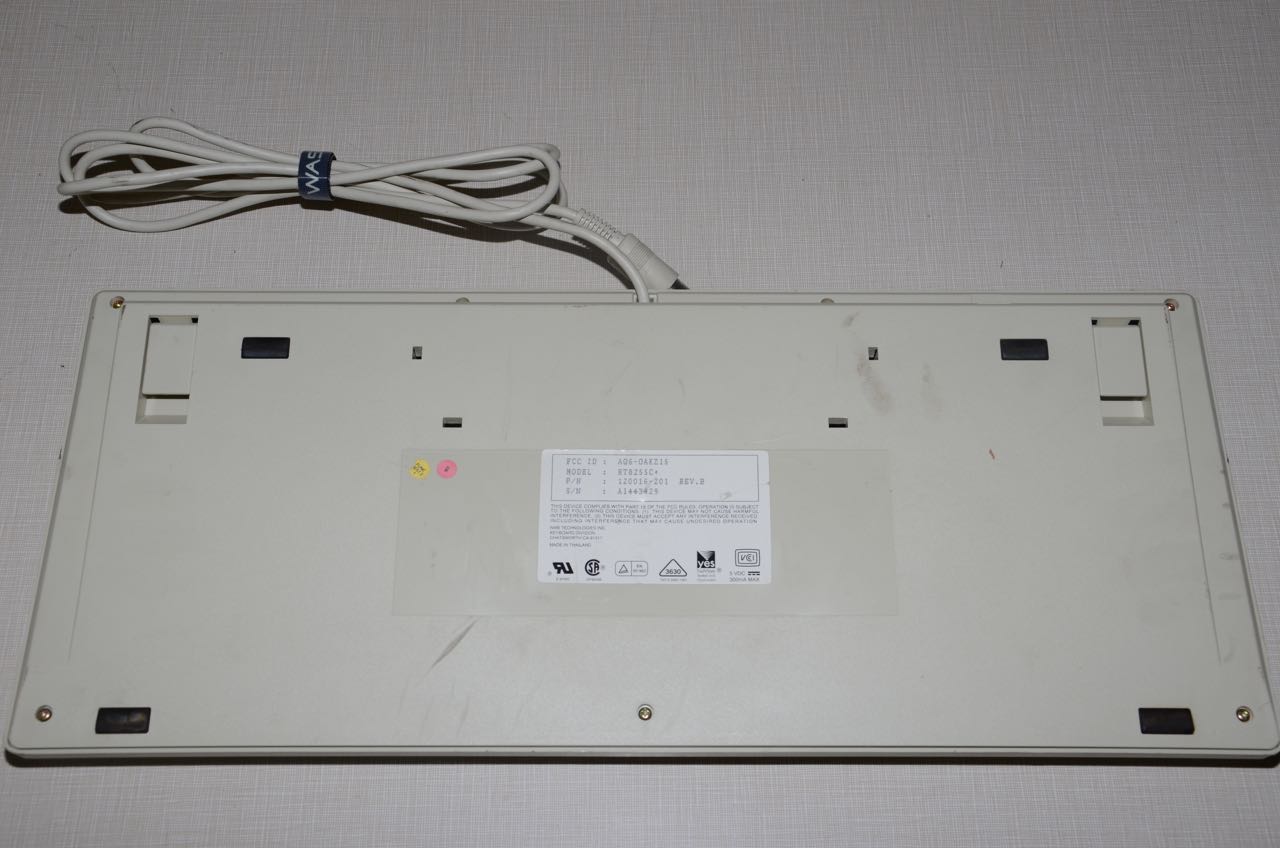

A photo of the back...

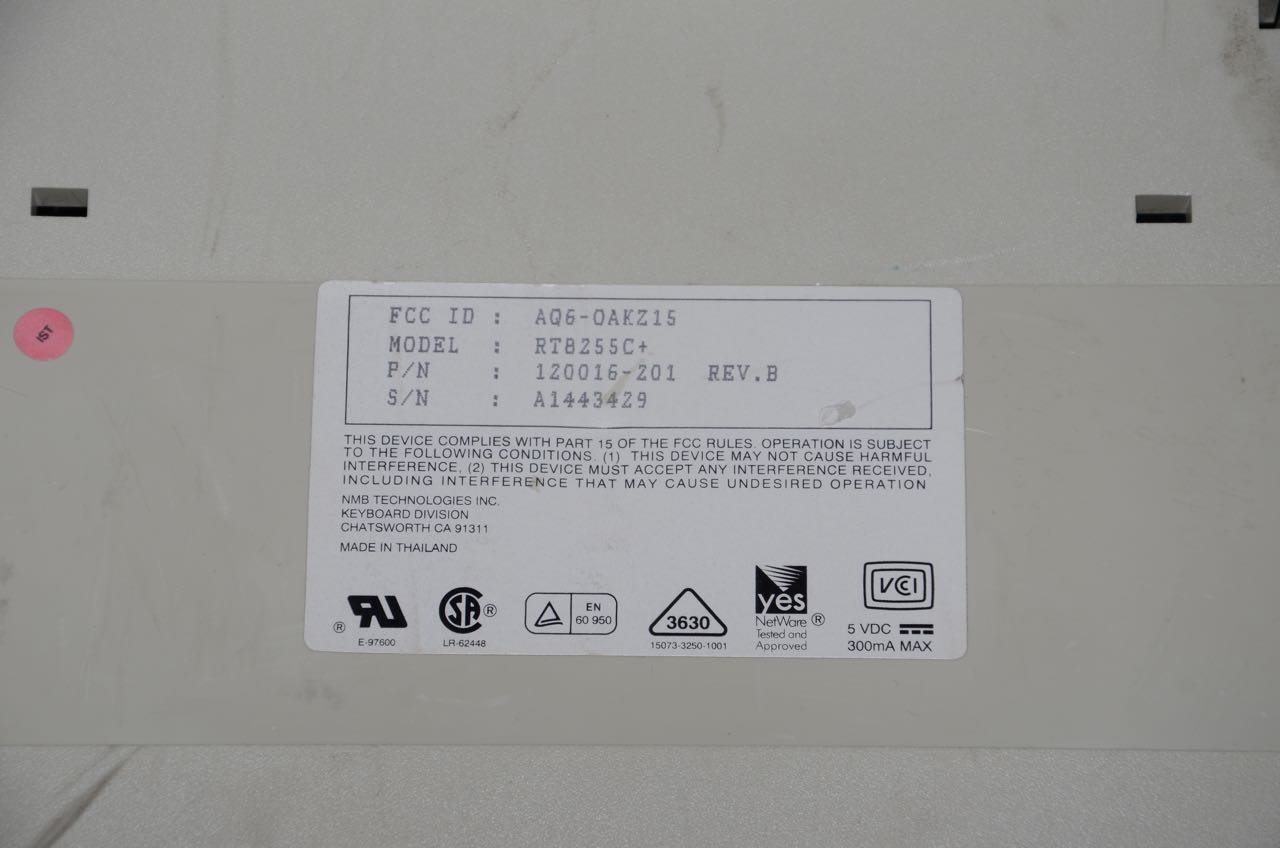

...and a close-up of the label:

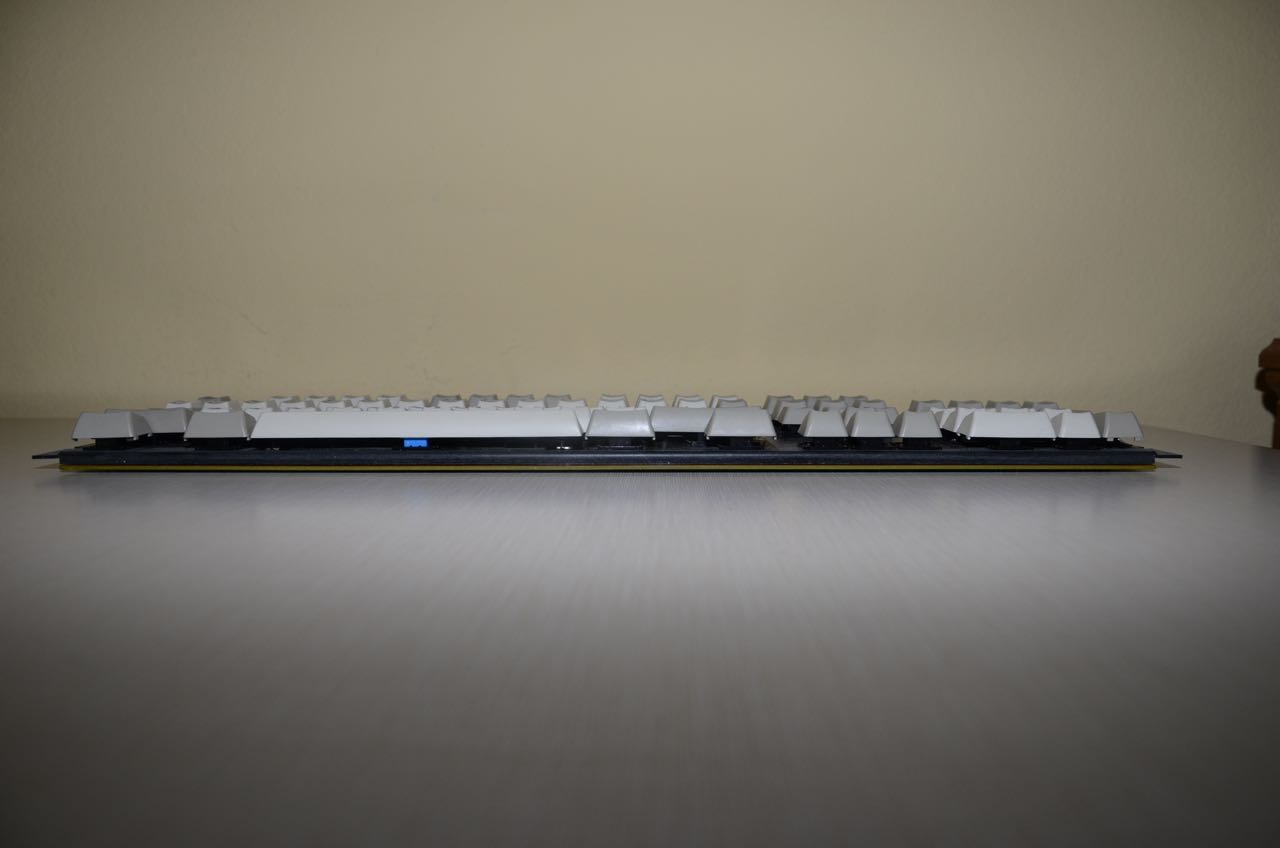

Space Invader key caps tend to pull the switch top with them. It goes right back in fortunately. To get just they key cap hold the hey puller upright, tilt 45 degrees to the left or right, and pull gently. The spring and the "praying hands" contacts are clearly visible. PBT dye sublimated key caps, decently thick.

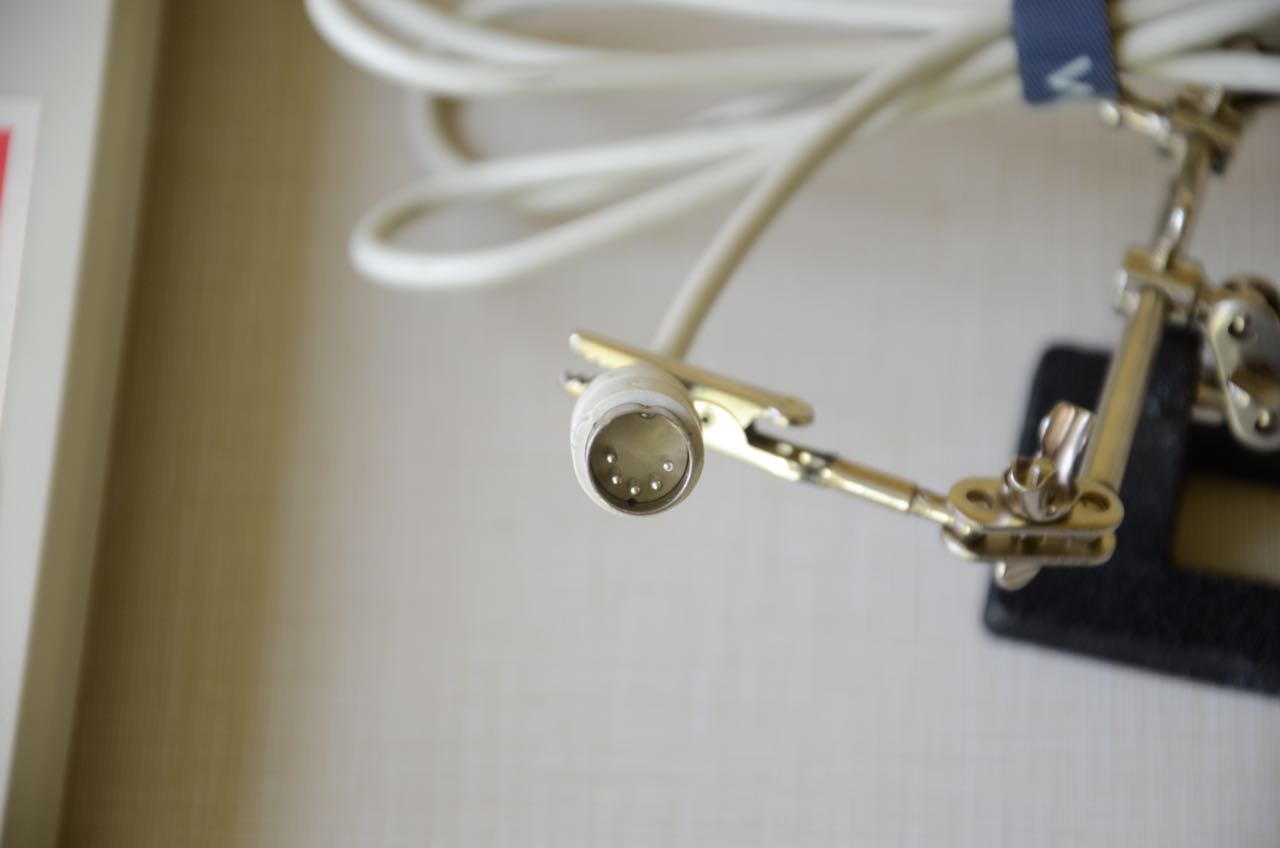

This is a regular five pin AT keyboard. I have not yet plugged it in - forgot to bring home an AT-PS/2 adapter.

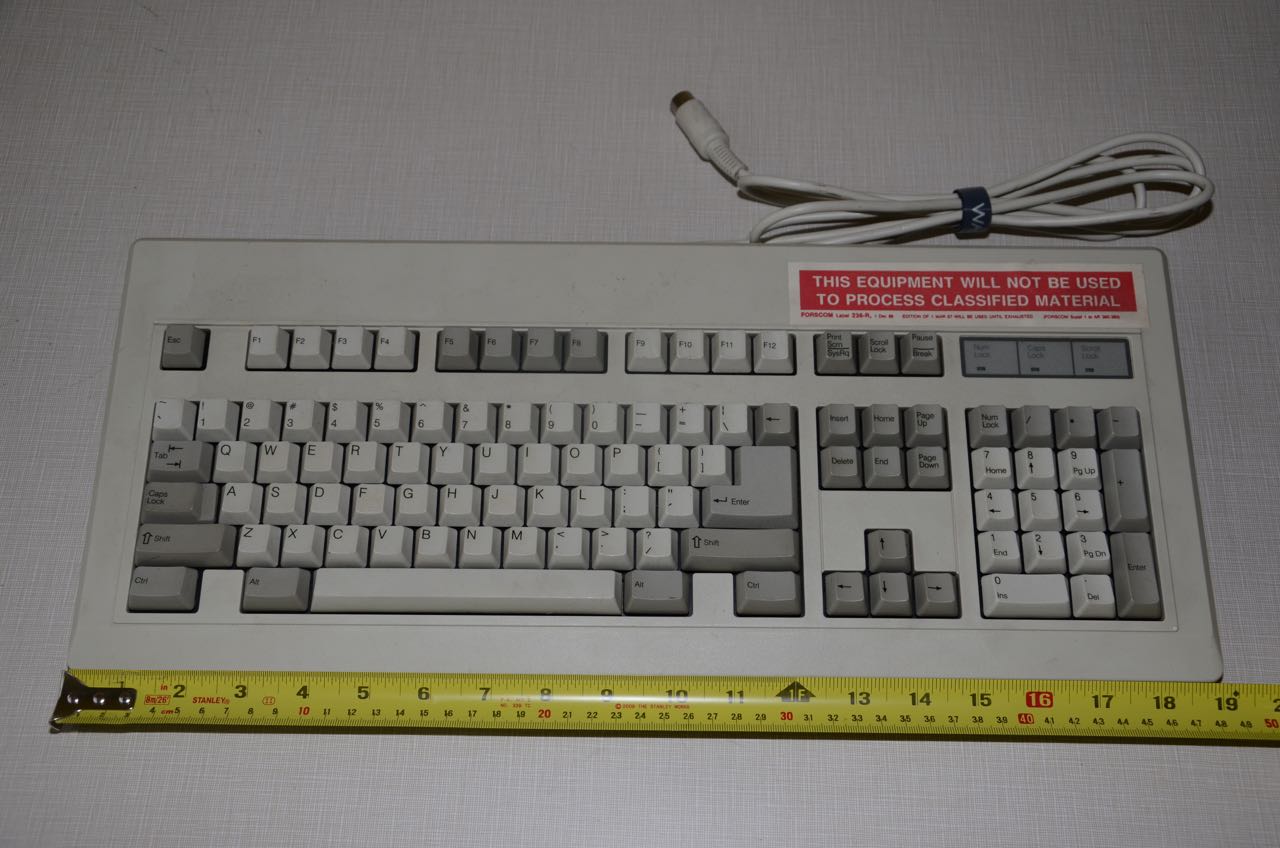

Just over 48cm wide...

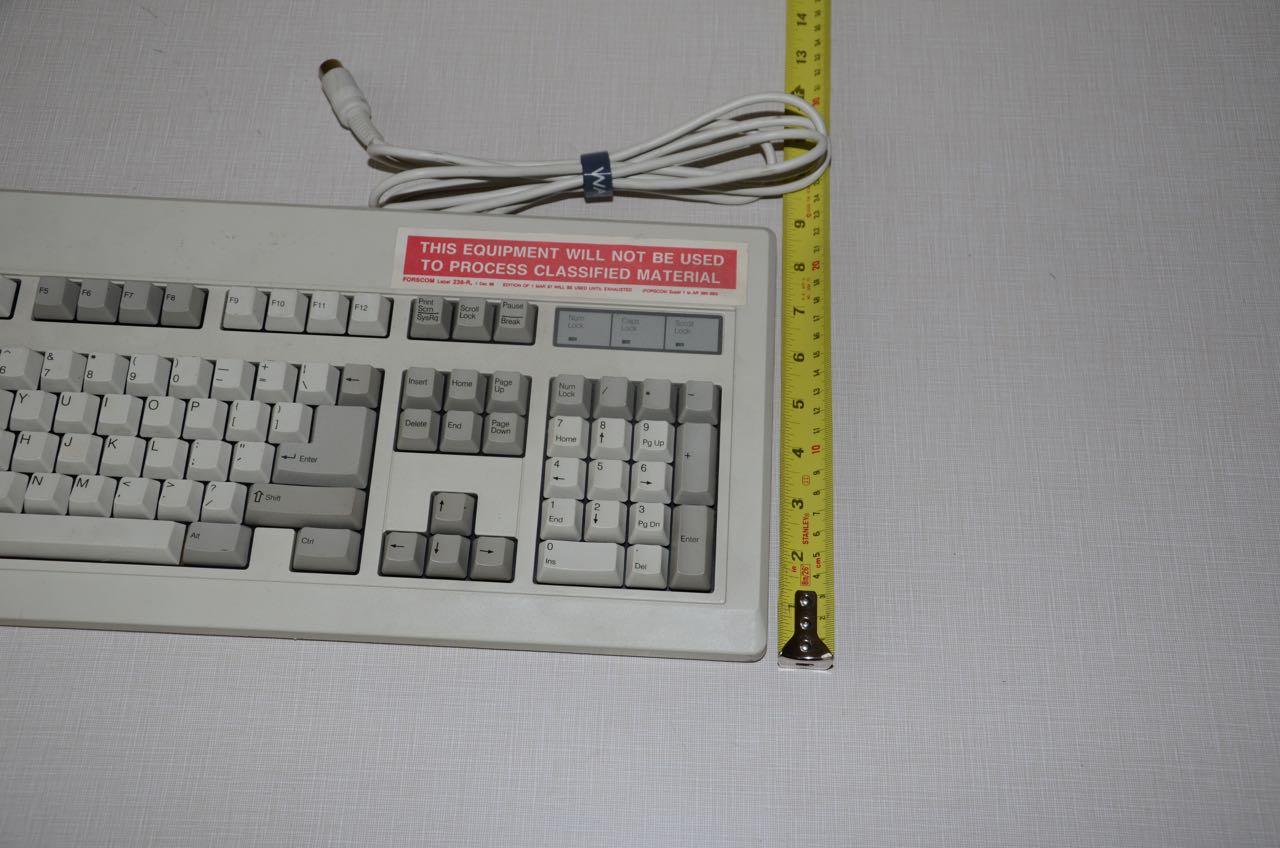

...21cm deep...

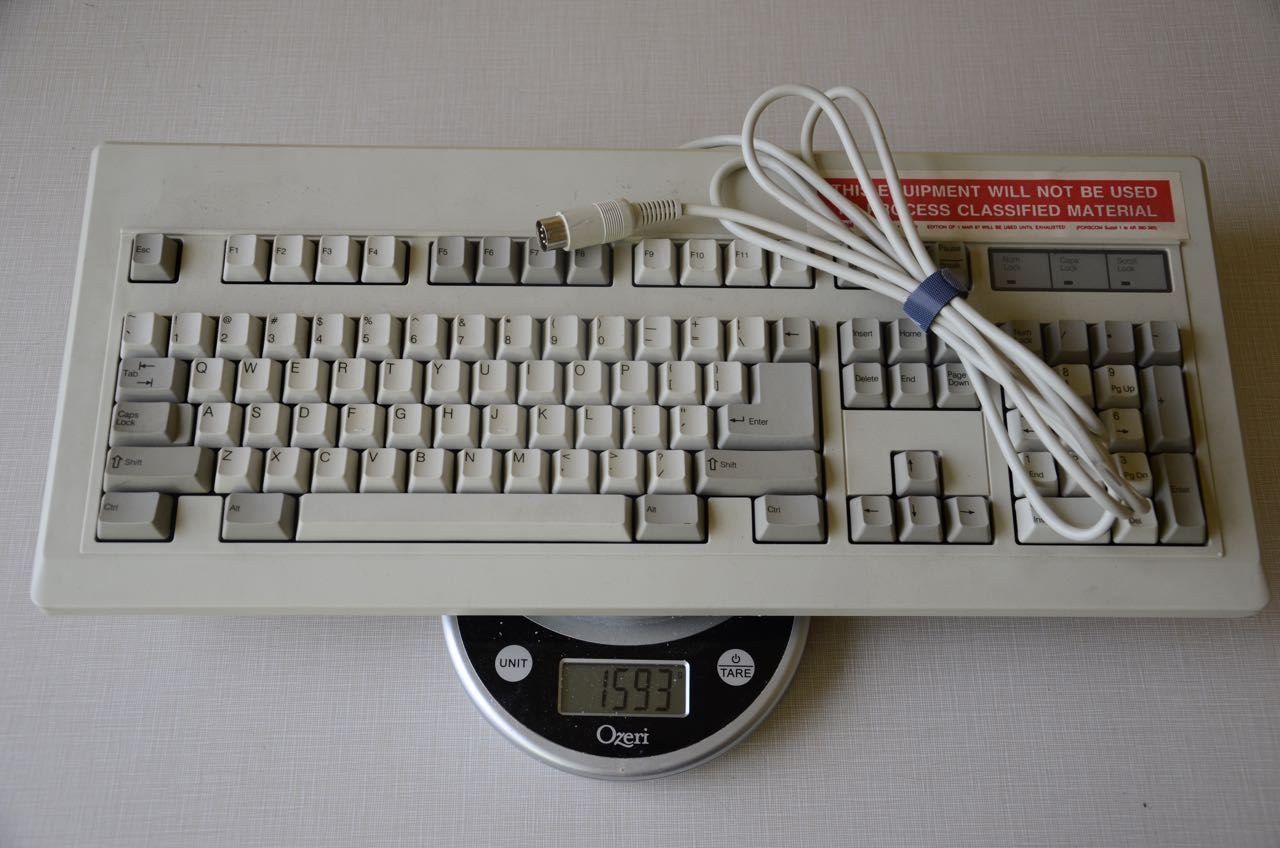

...and weighing in at 1593 grams. Not super heavy like a Model M but not super light.

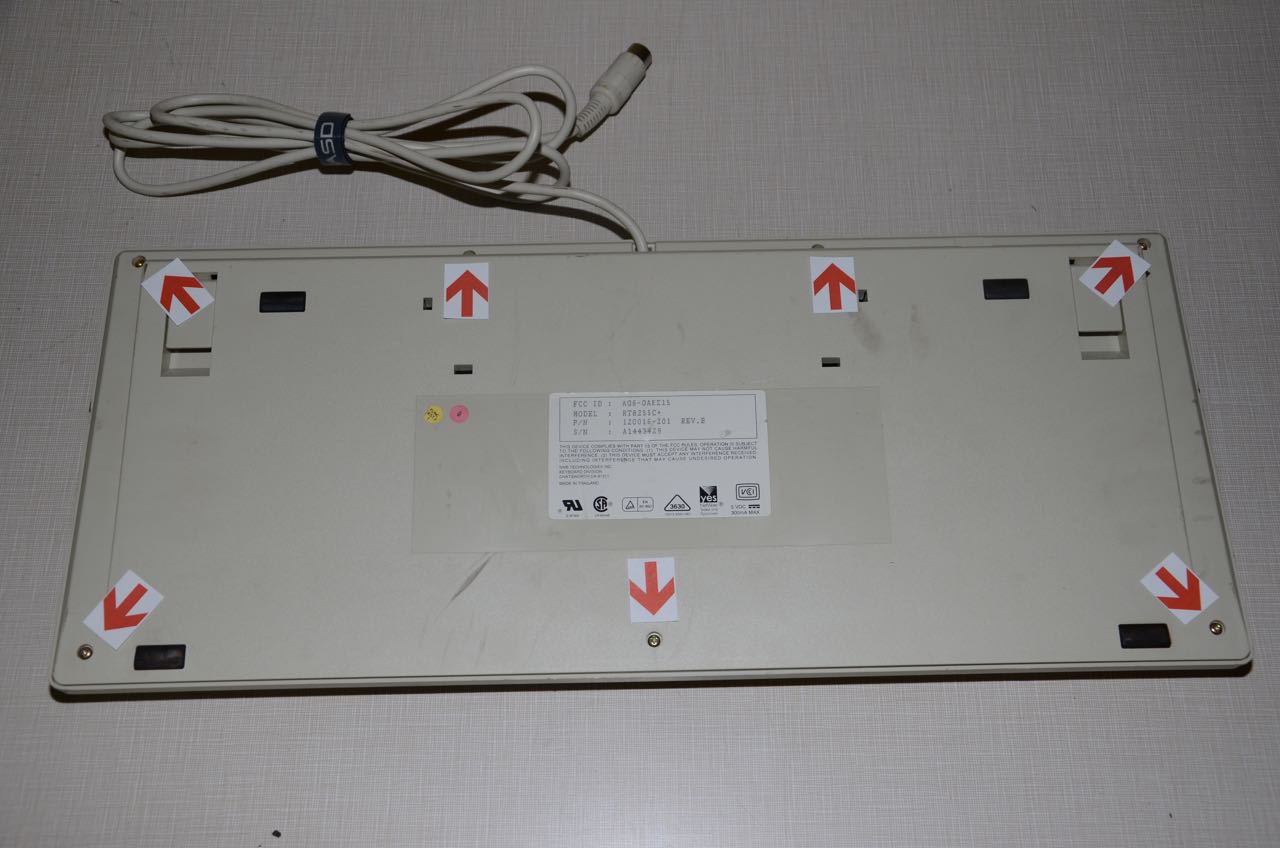

Disassembly begins with removing these seven screws.
Lifting carefully, the front of the keyboard case remains on the desk.
More photos below!

User avatar
XMIT
[ XMIT ]

23 Feb 2015, 04:11

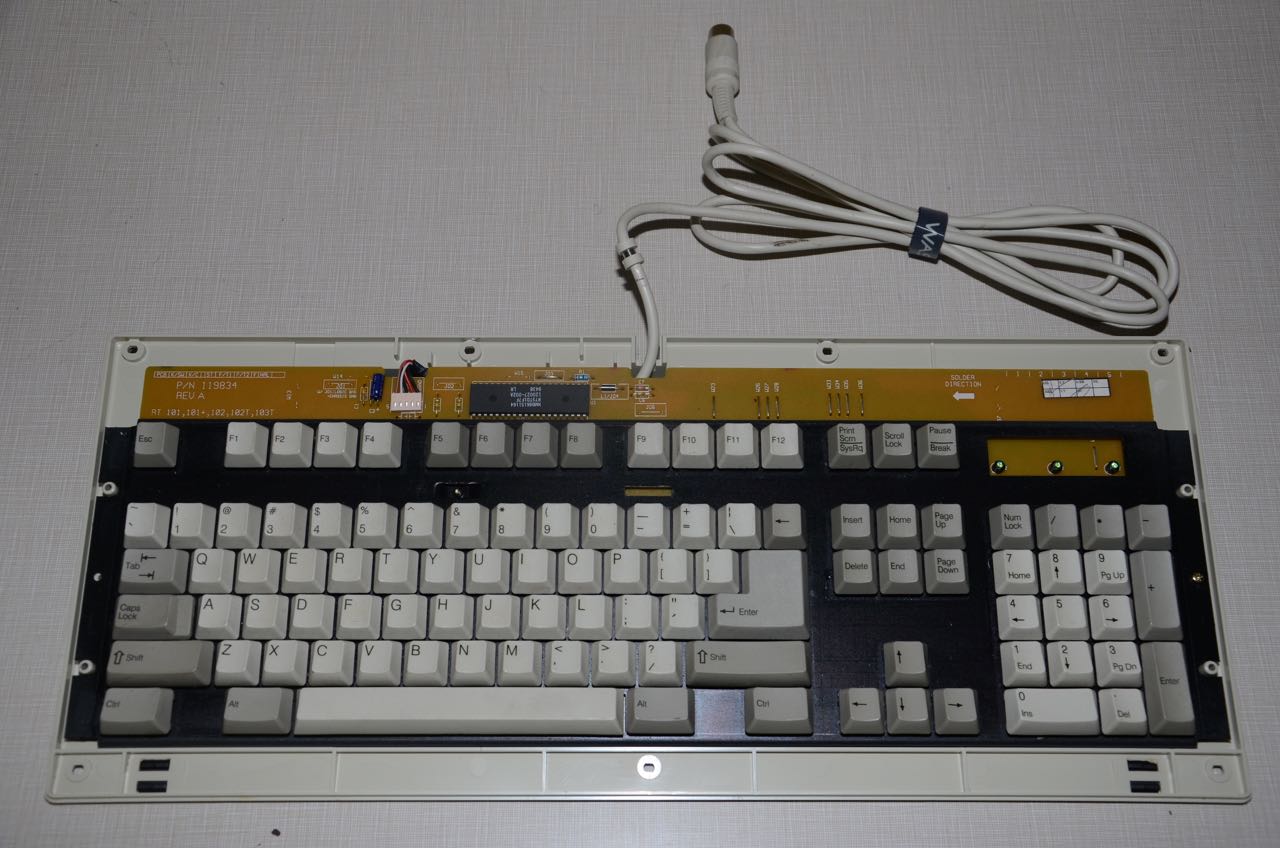

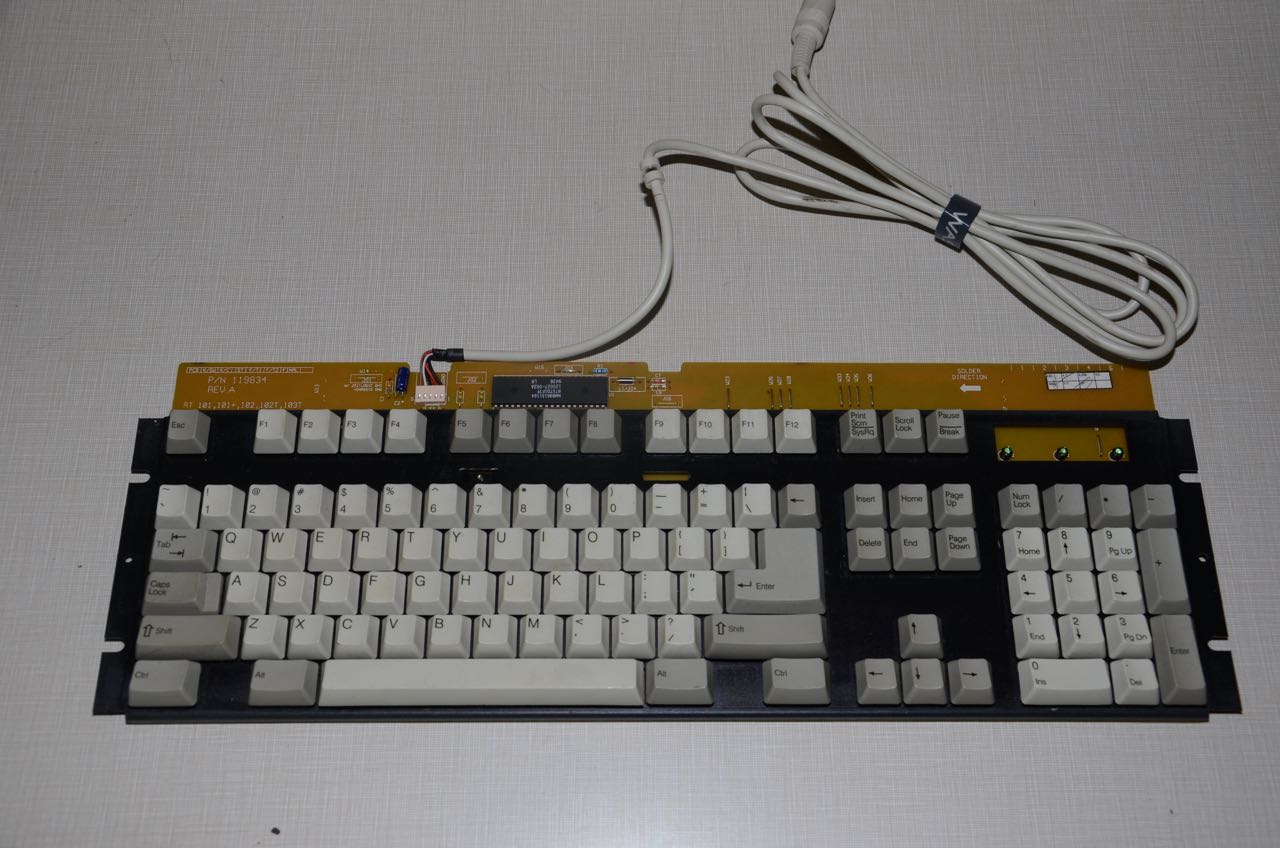

Removing the front of the case reveals a single sided PCB, a relatively simple controller board, and plate mounted switches.

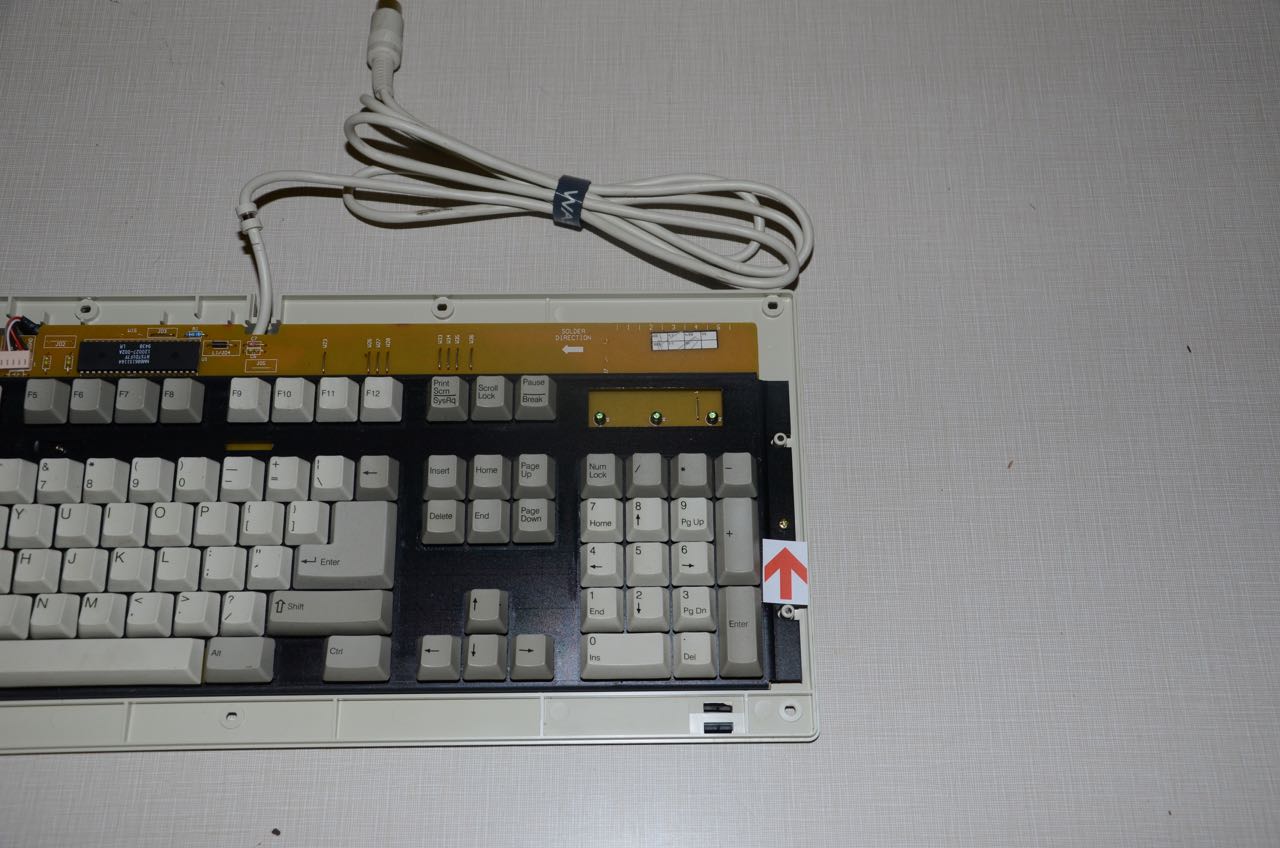

Remove a single screw to free the back of the case.

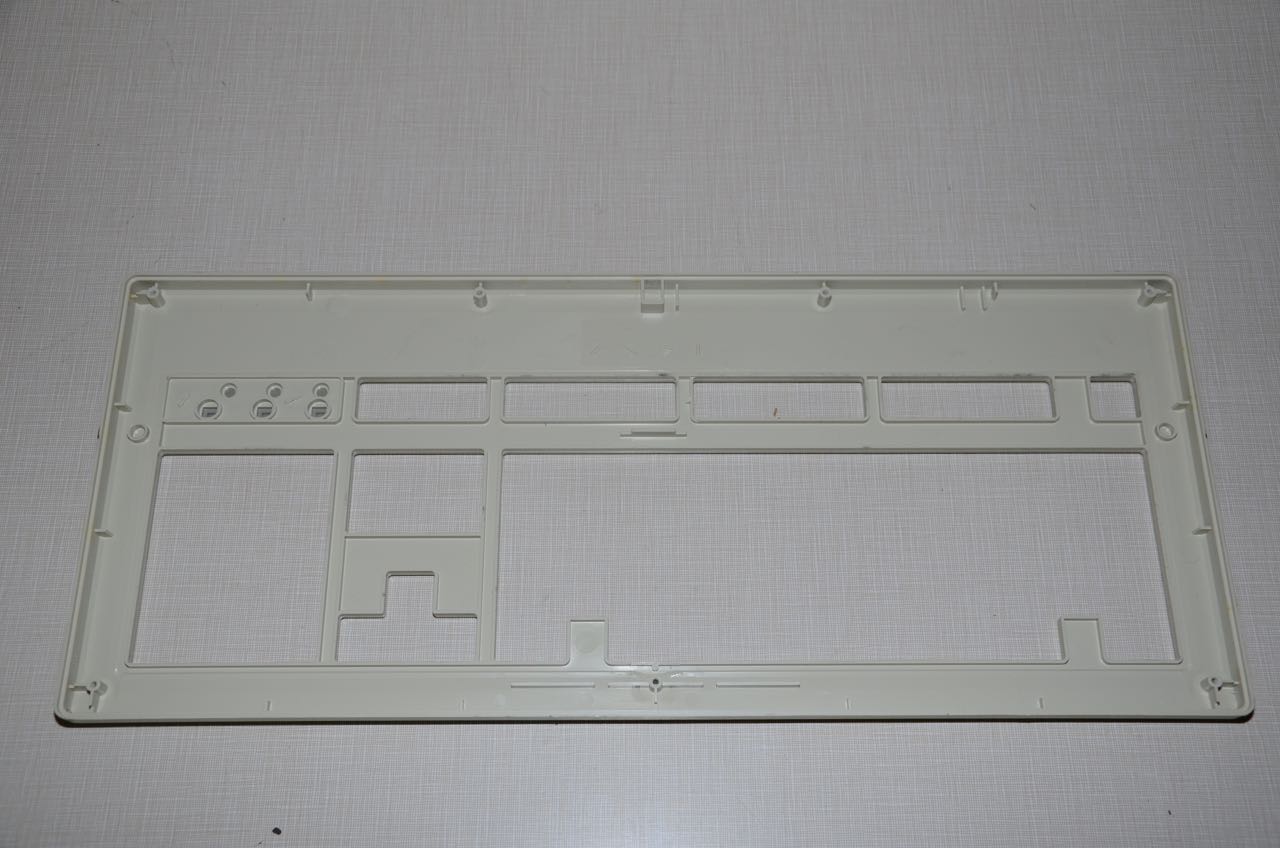

The back of the case. I believe this, and the front, are also PBT.
The base plate and PCB without the case.

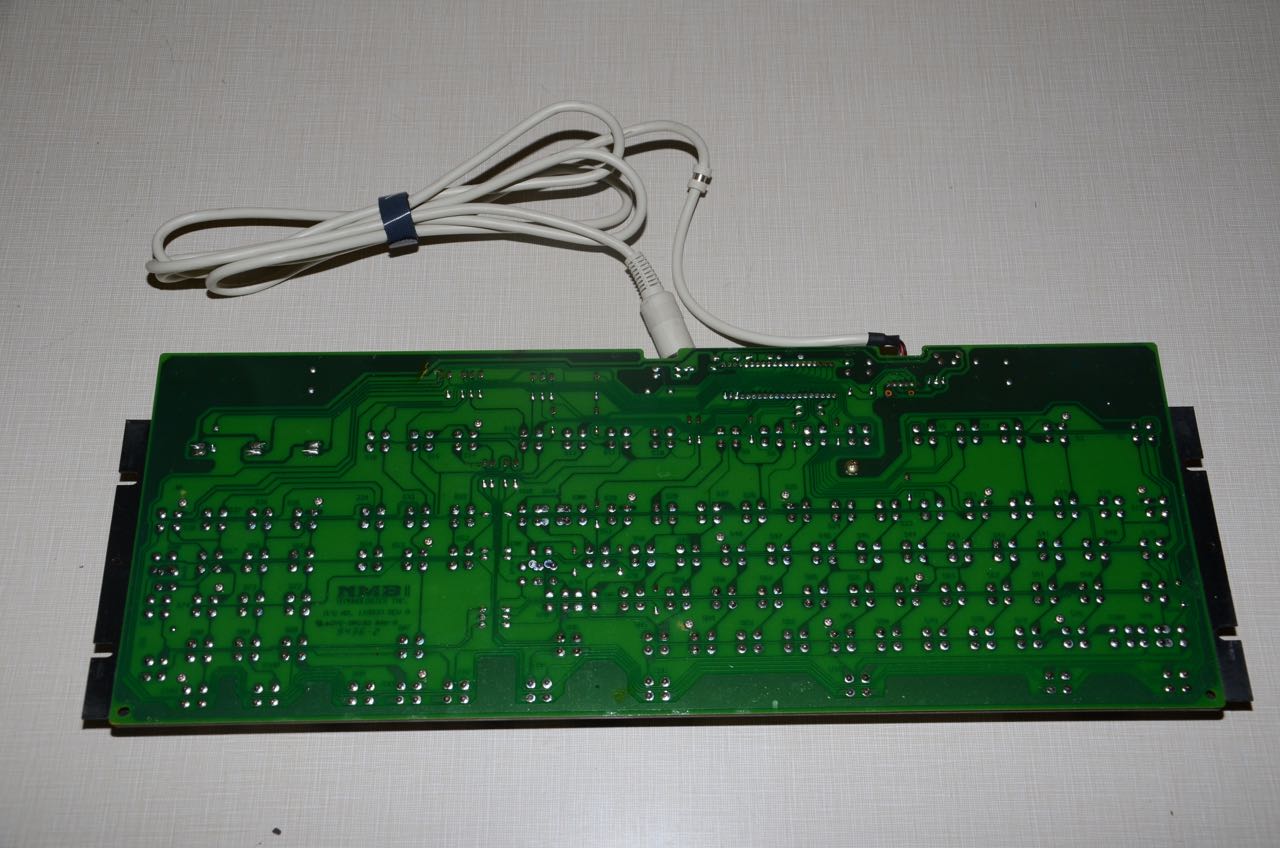

The rear of the PCB showing traces and solder mask. Each switch has four holes, so, I assume this keyboard is *not* NKRO. I do not see any signs of diodes.

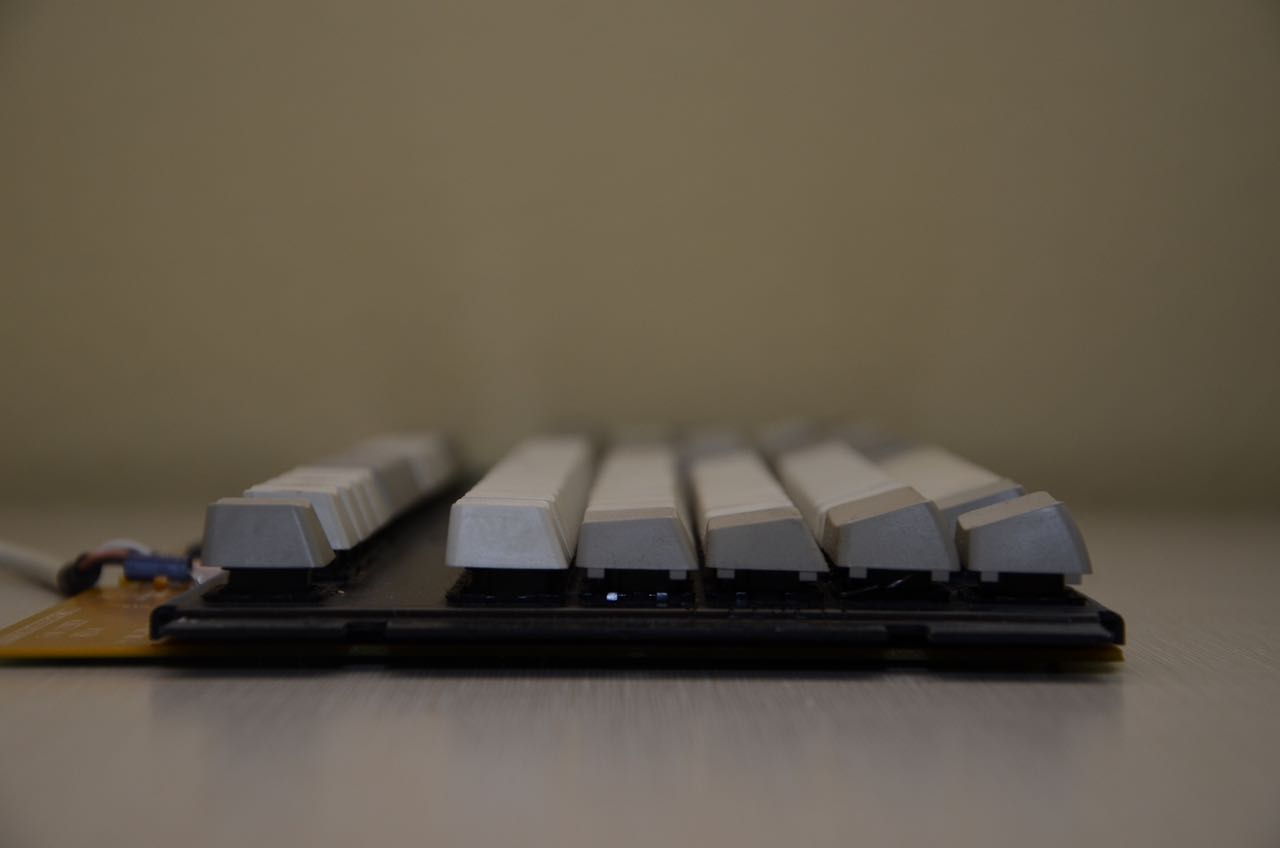

Key profile. The lower two rows are angled aggressively.

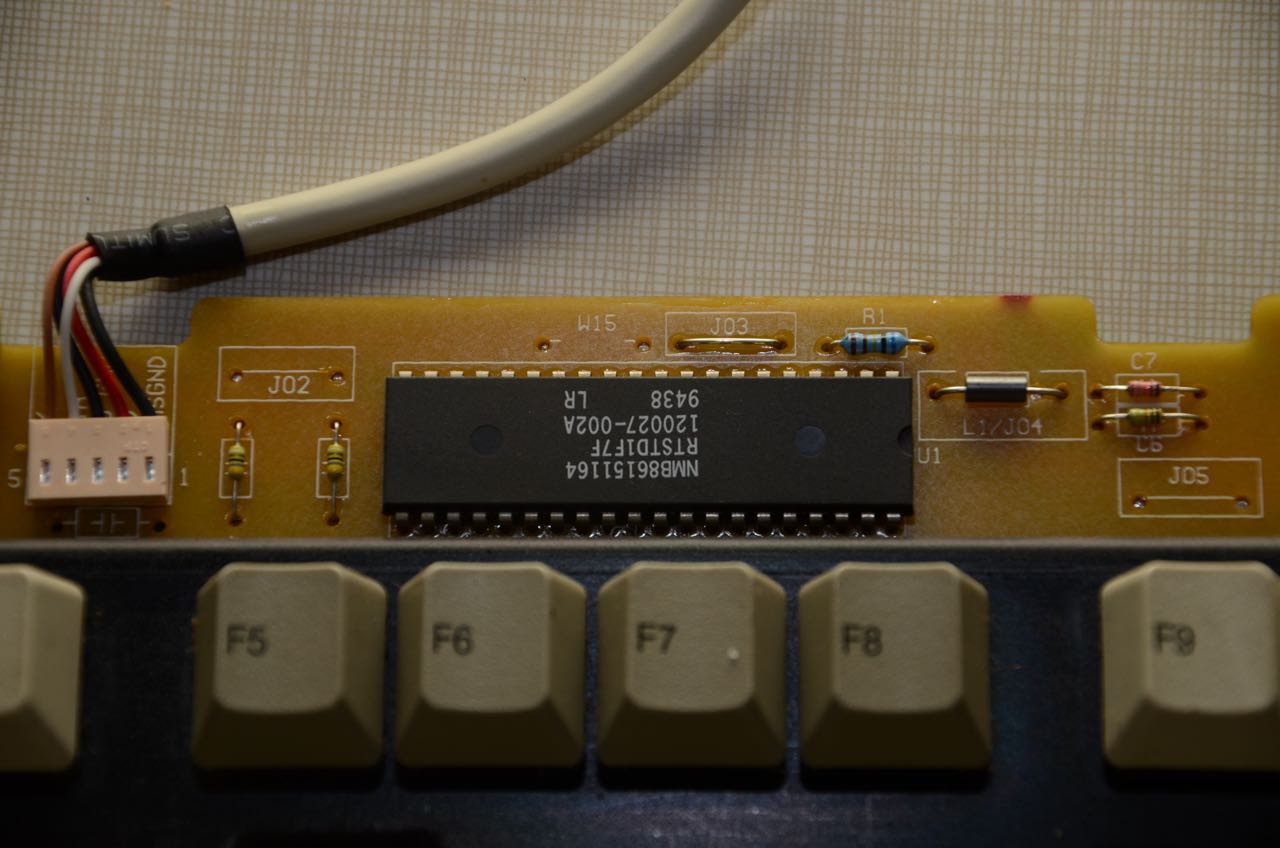

Close up of the controller, a Motorla NMB86151164 microcontroller according to https://octopart.com/nmb86151164-motorola-15163564.

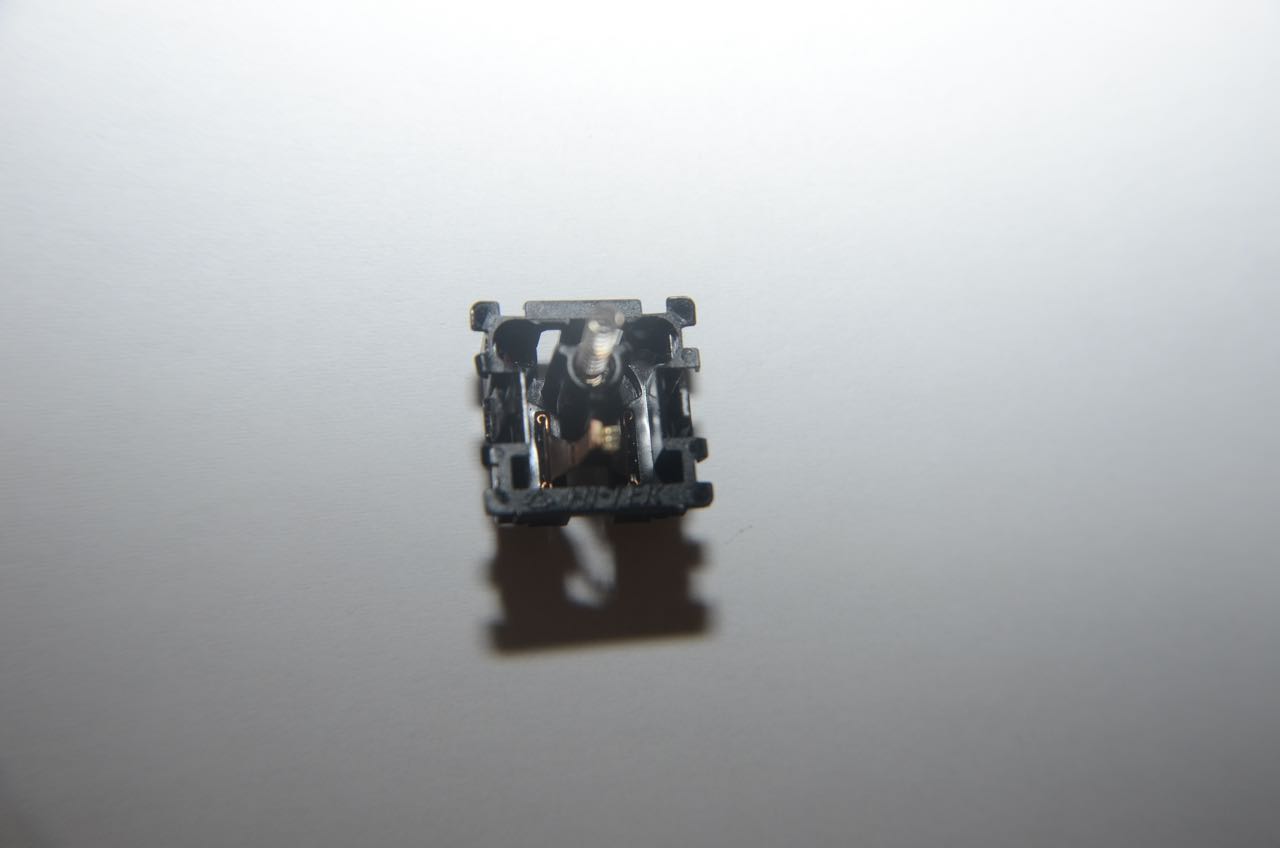

Another switch close-up, with internal switch elements and plate mount visible.

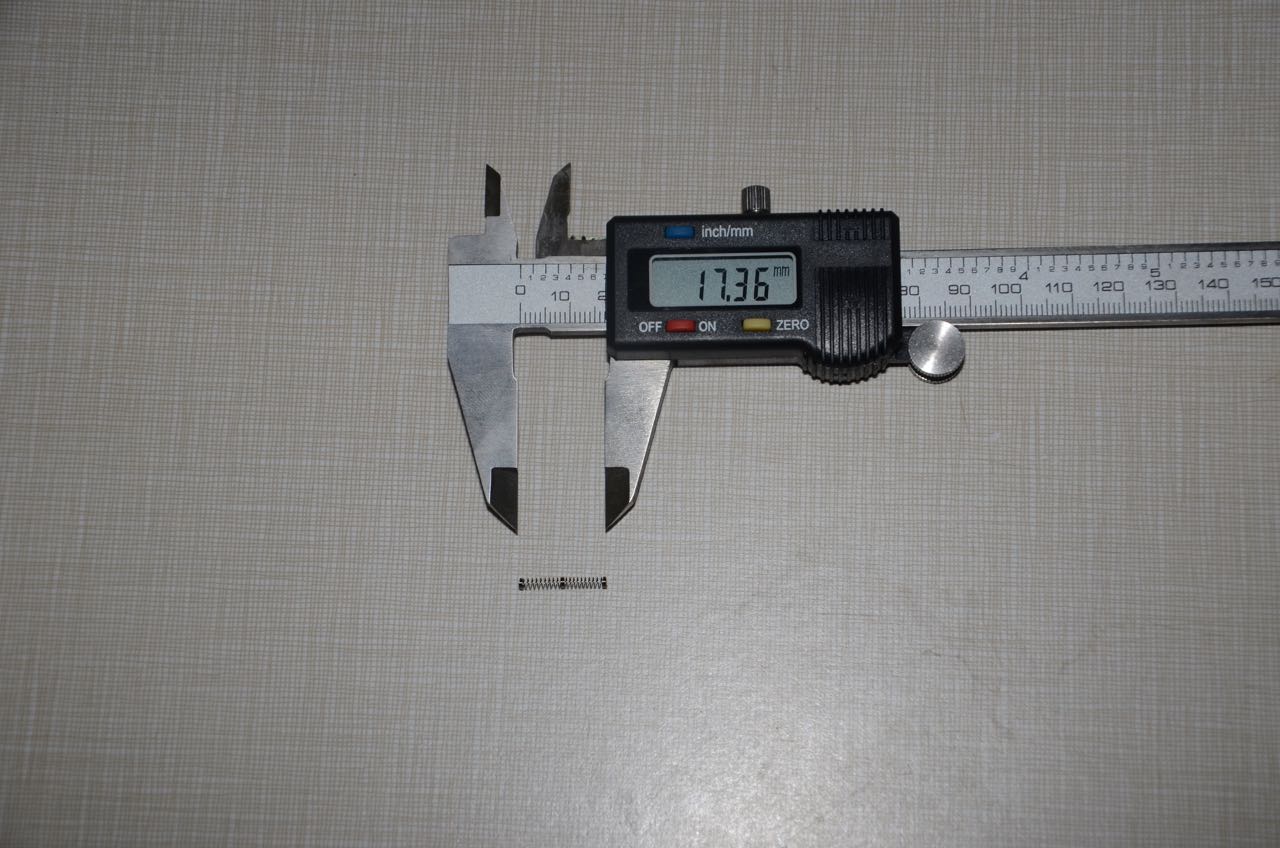

The springs, of unknown weight, are 17.36mm long...

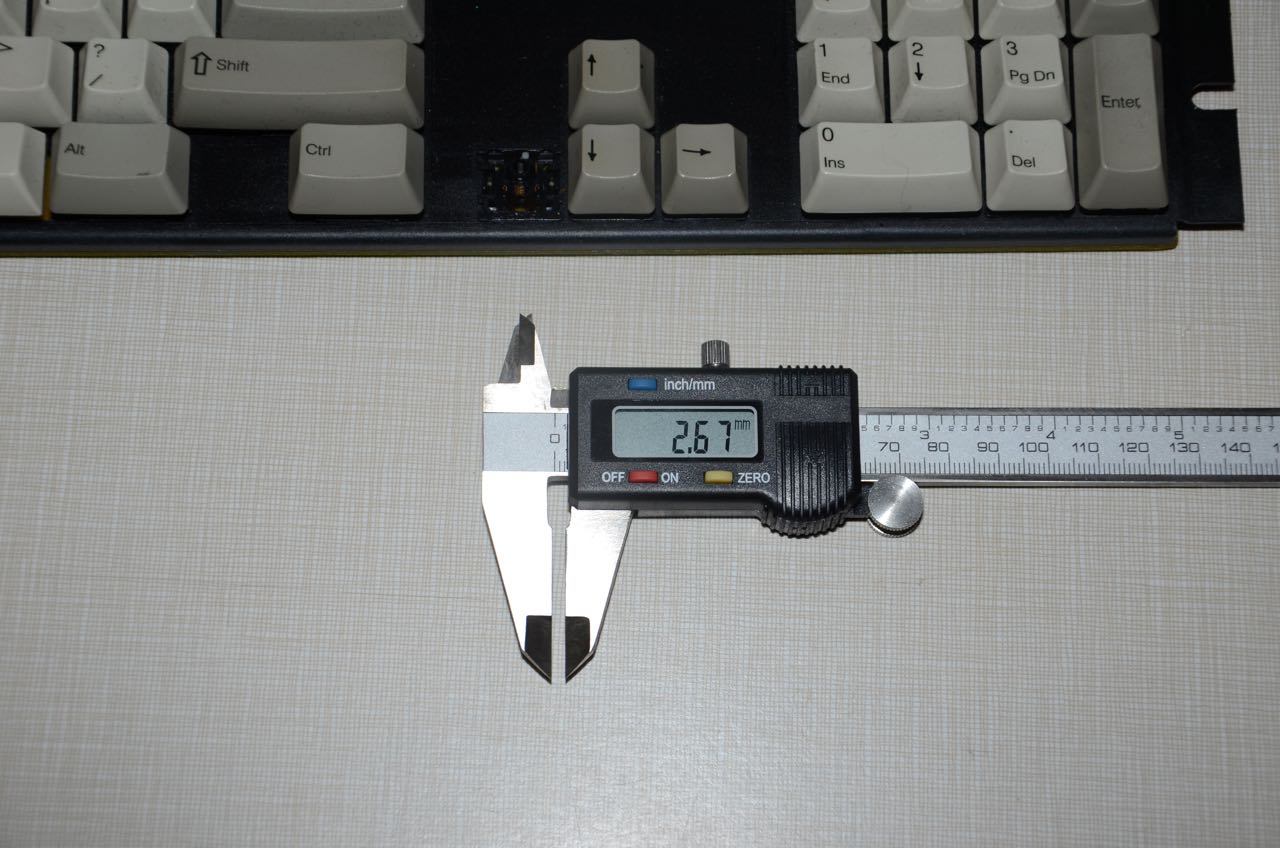

...and likely 2.5mm across, as they must clear a space 2.67mm across.
Last edited by XMIT on 23 Feb 2015, 04:20, edited 2 times in total.

User avatar
XMIT
[ XMIT ]

23 Feb 2015, 04:11

The extra-large Enter key is well stabilized.
These are cylindrical key caps.

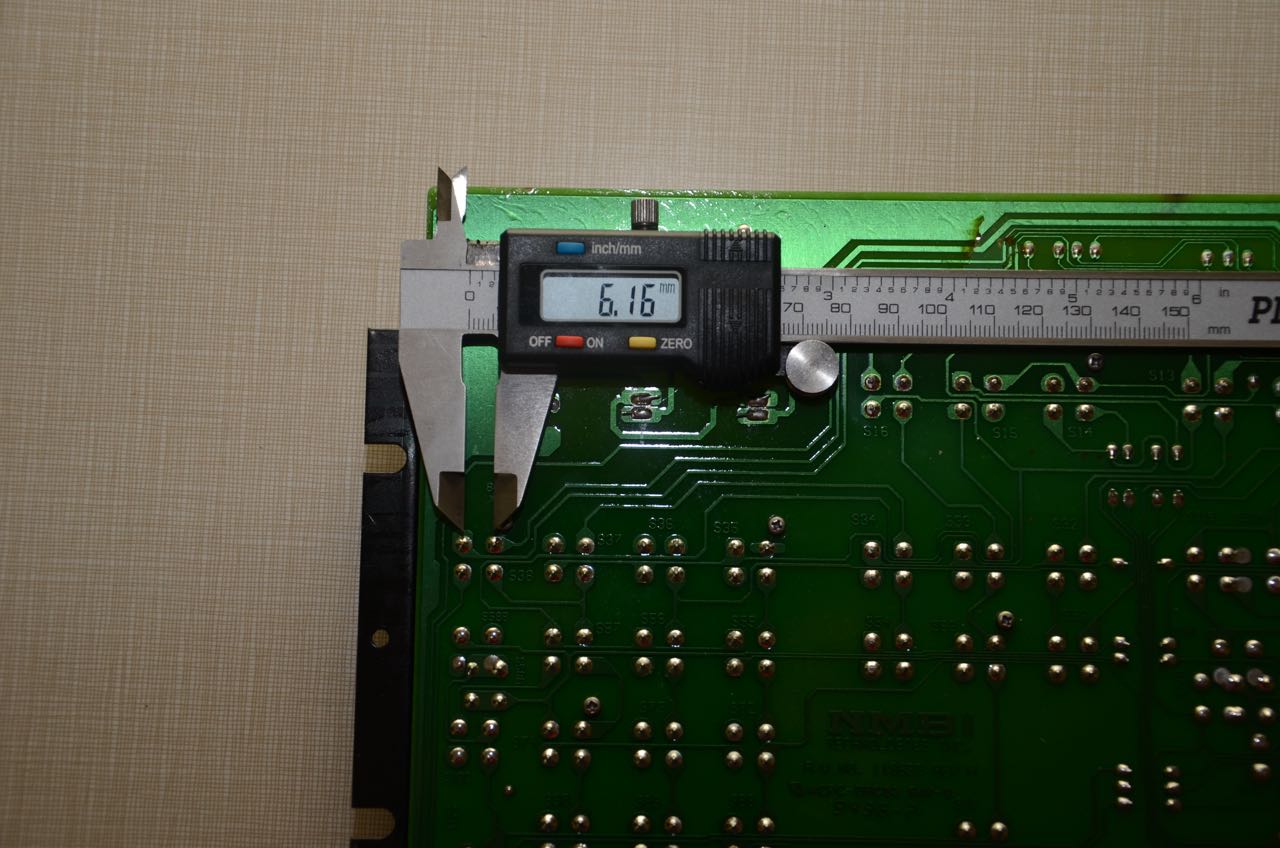

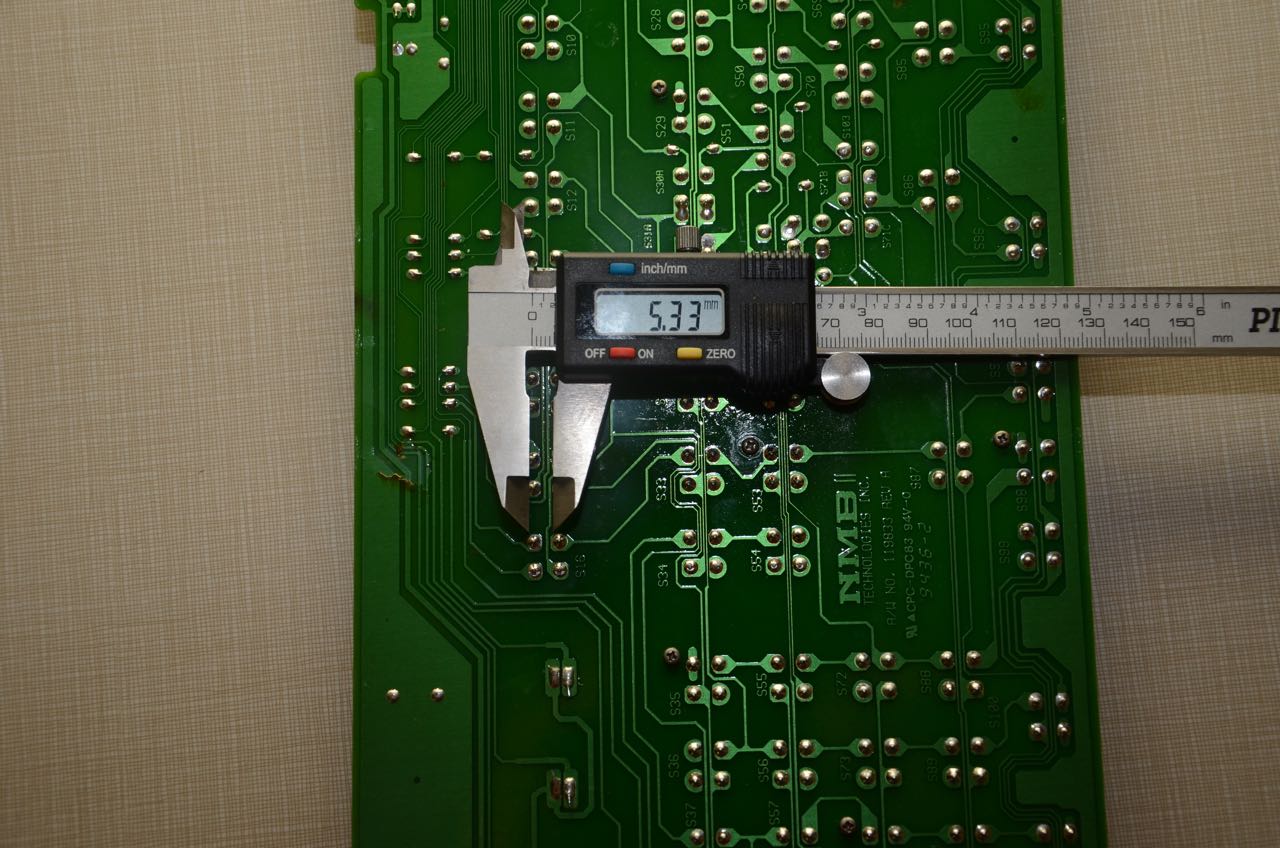

The switch pins are about 6.16mm apart in the X direction...
...and 5.33mm apart in the Y direction.

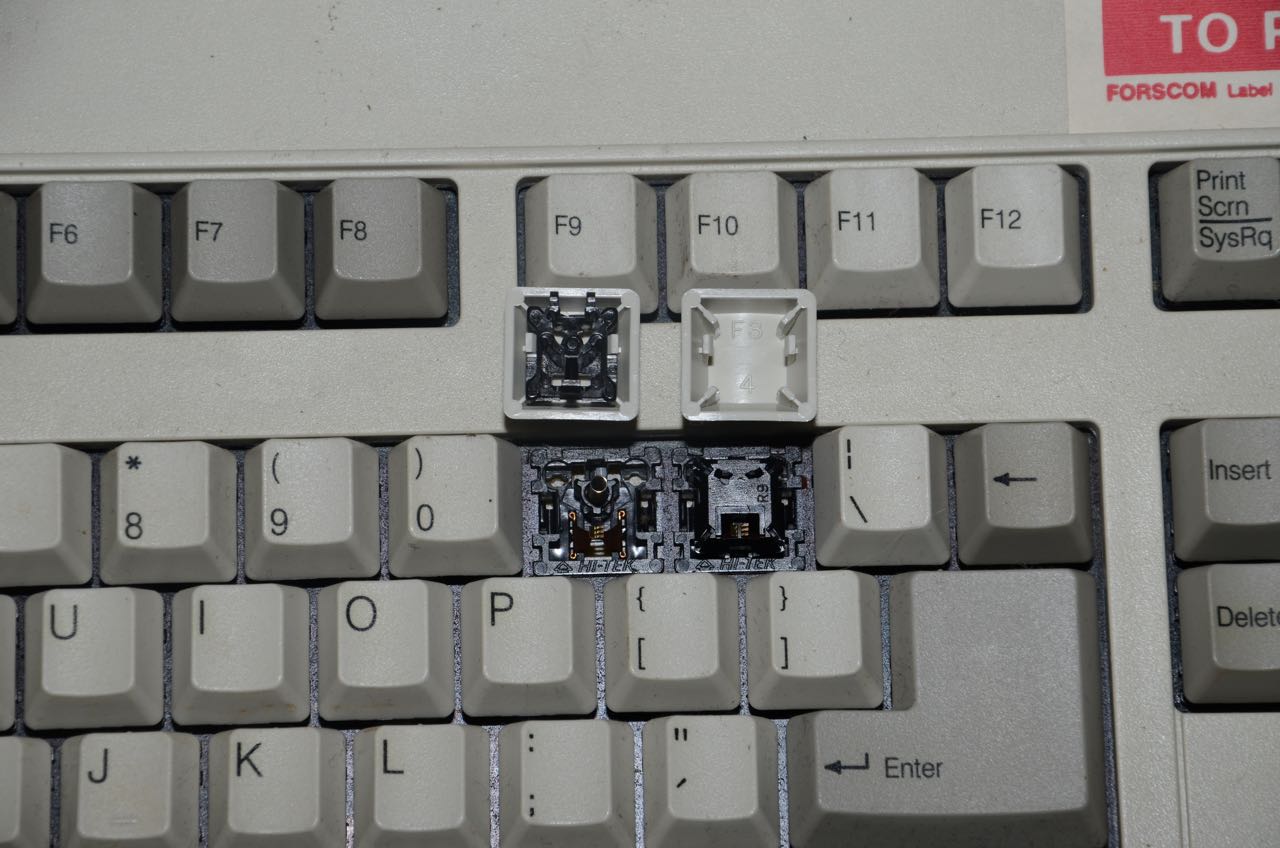

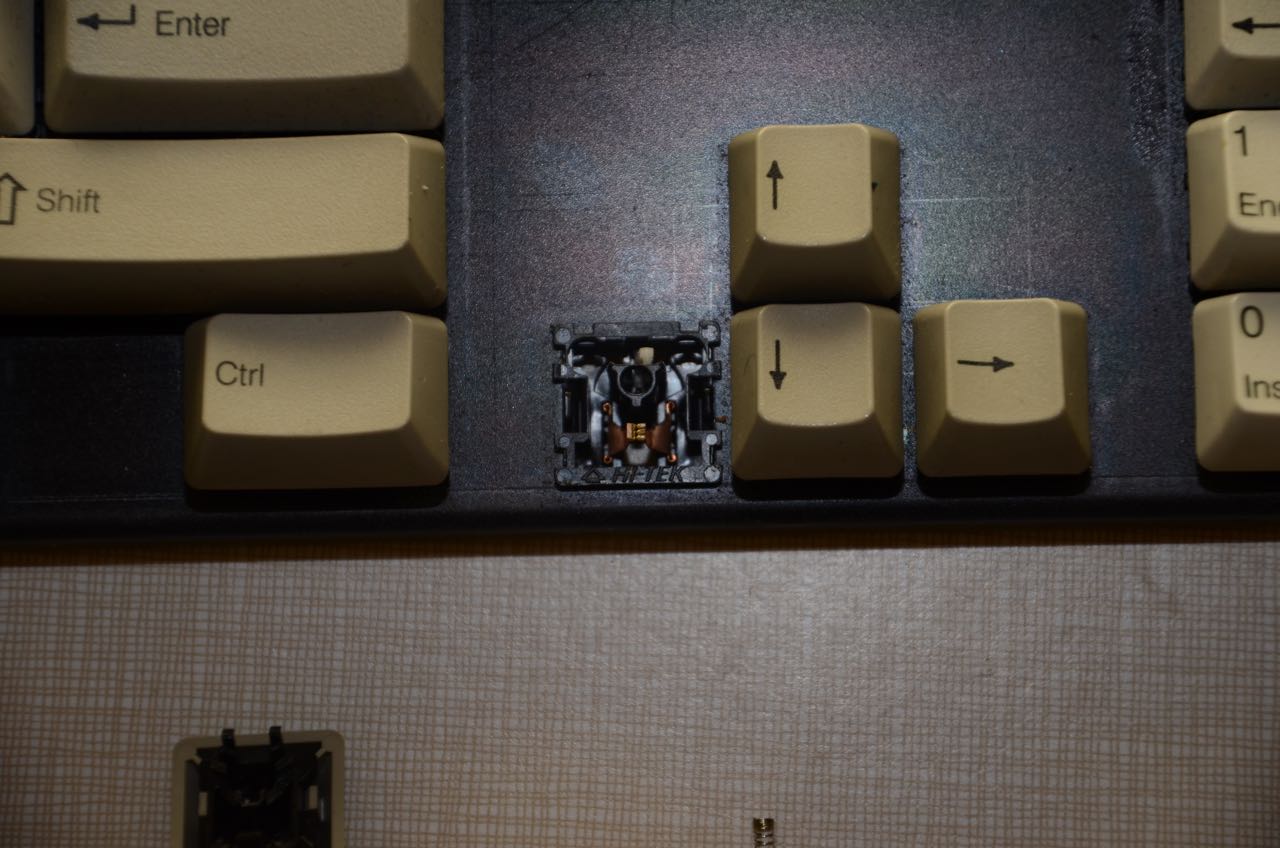

One switch removed, after about 15 minutes of fiddling. These are not fun to remove. Desoldering was the easy part with a good solder sucker but the plastic clips are tight and the space between keys is minimal. There was a screw holding this one switch in place.
The "click" is tactile, and is a small plastic spring pin sliding along a bump in the back of the switch casing. The tactile bump has nothing to do with the actuation point of the keyboard. Ideally they are in the same spot but this requires the switch leaves to be calibrated correctly. (Experimenting with macro shots, I placed a magnifying glass in front of my camera's lens.)

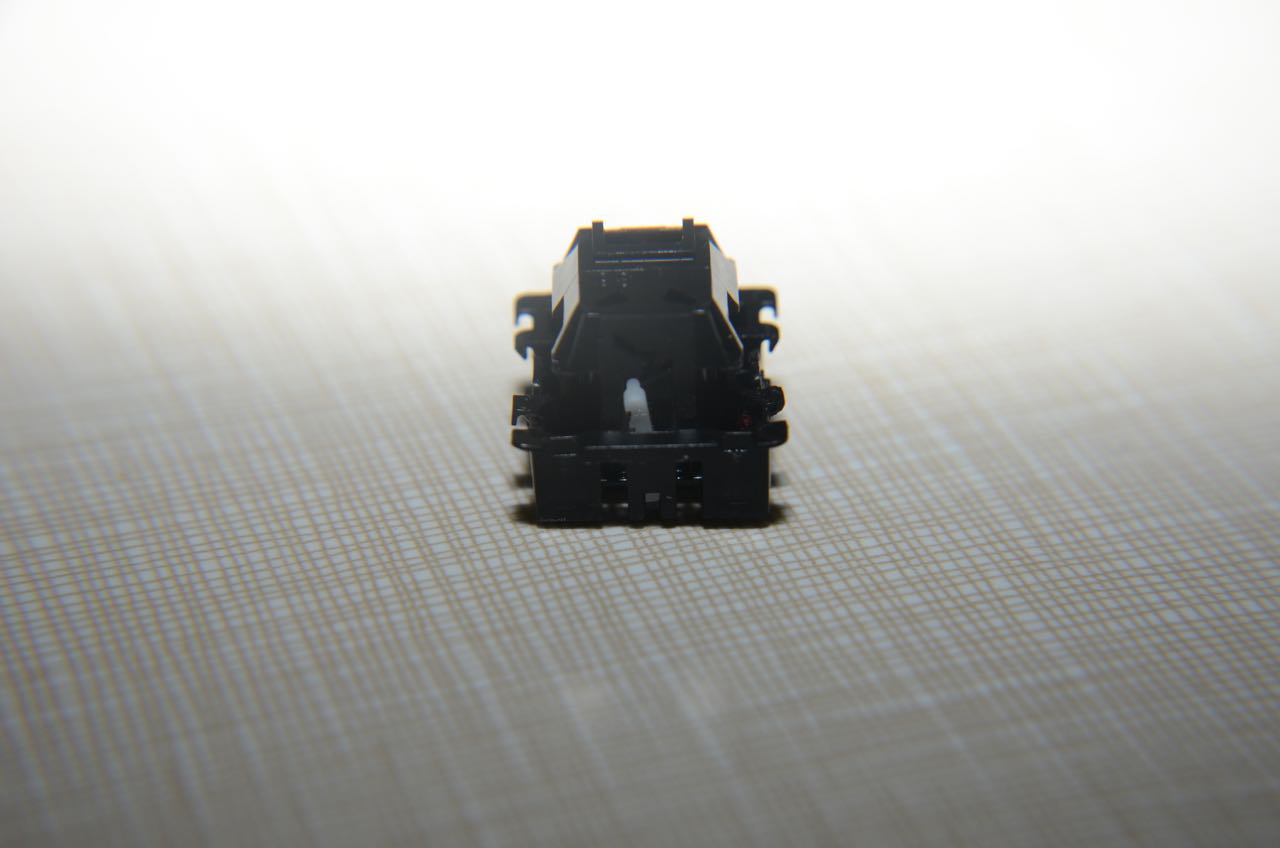

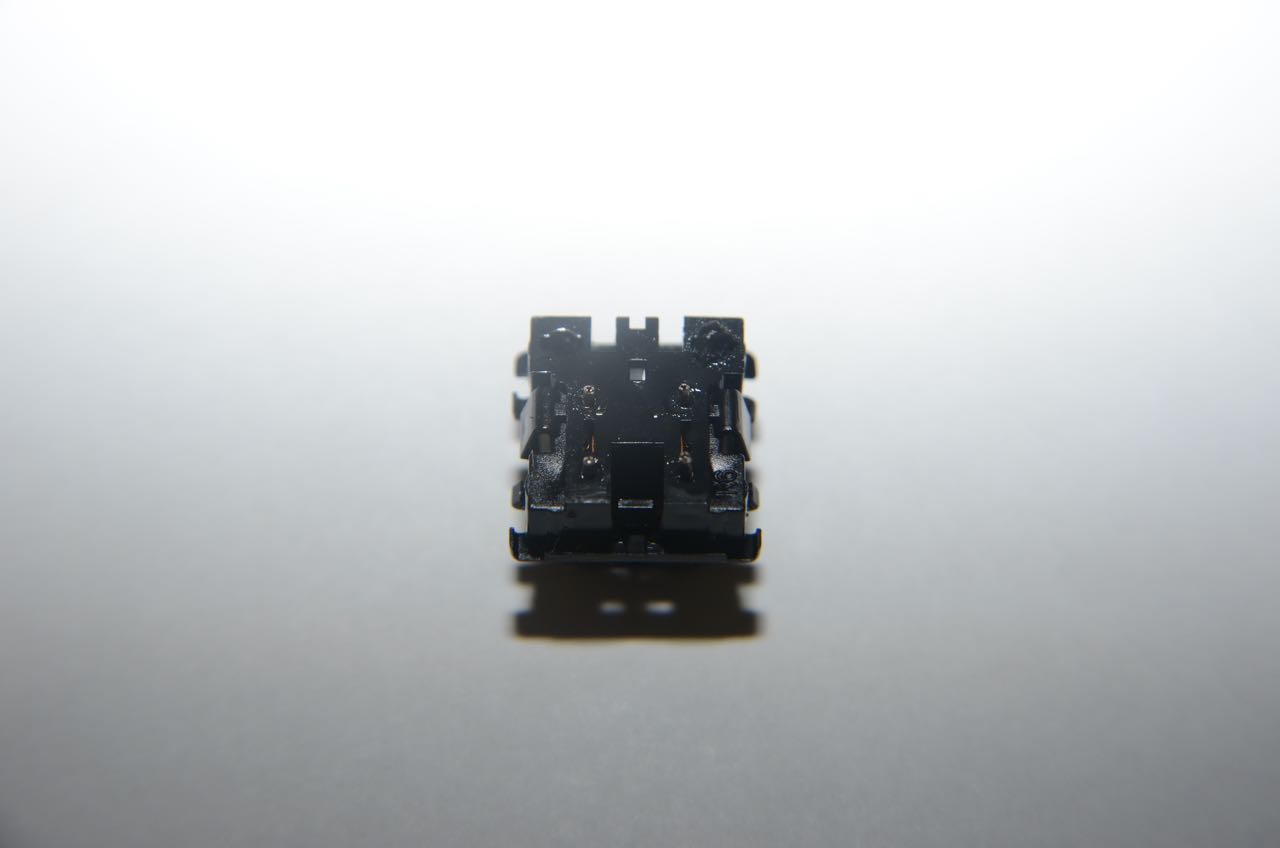

The same switch seen from the rear. No provisions for LEDs or diodes.

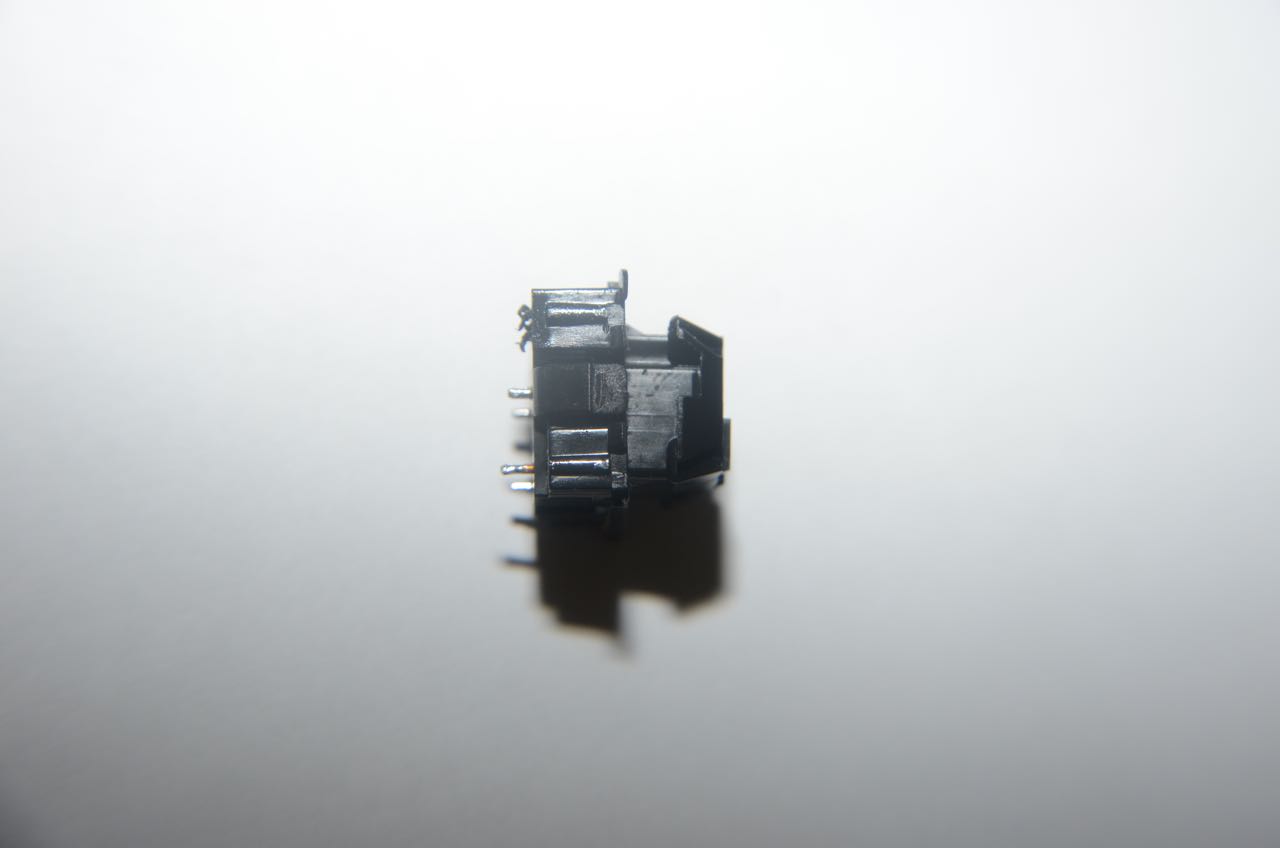

The same switch viewed from the side.
Switch internals viewed through the magnifying glass. The spring leaves also contain two pins each for soldering and come out fairly easily, though they bend easily and this throws off switch calibration (actuation point). In total each switch has six pieces: two leaves, a spring, a bottom case, a top slider, and a key caps.

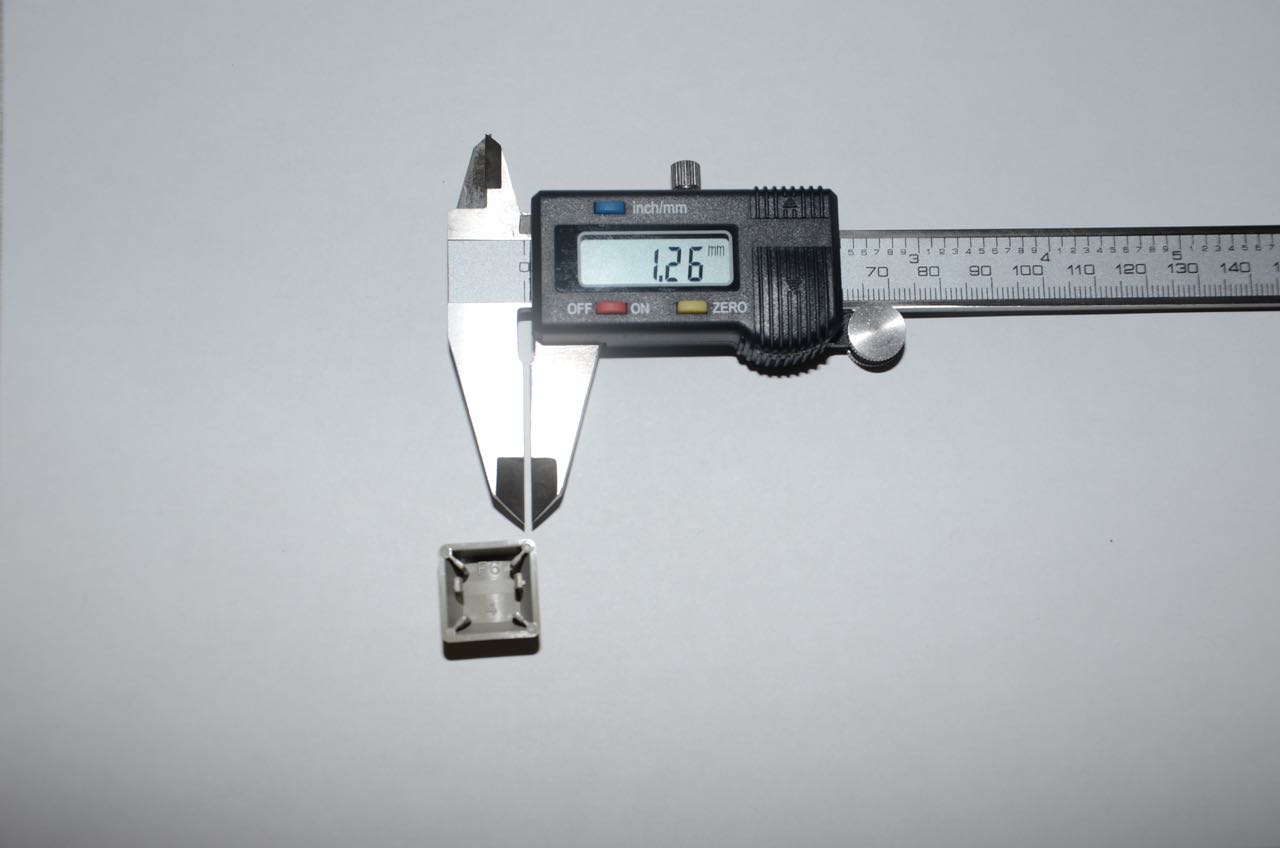

Finally, the PBT key caps are 1.26mm thick.
Assembly is the reverse of disassembly. Thanks for reading!

User avatar
Mal-2

23 Feb 2015, 06:48

jsoltren wrote: (Experimenting with macro shots, I placed a magnifying glass in front of my camera's lens.)
That's all screw-on closeup filters really are, they just eliminate the need to hold them. If you're doing this a fair bit, a set of filters at smaller sizes (like 49 mm or 52 mm) won't set you back more than $50, and also will not affect the automatic functions of the camera the way an extension tube often does.

idollar
i$

23 Feb 2015, 07:02

This is what I call a VERY good report/review/documentation !
Thanks for sharing ;)

User avatar
XMIT
[ XMIT ]

23 Feb 2015, 19:46

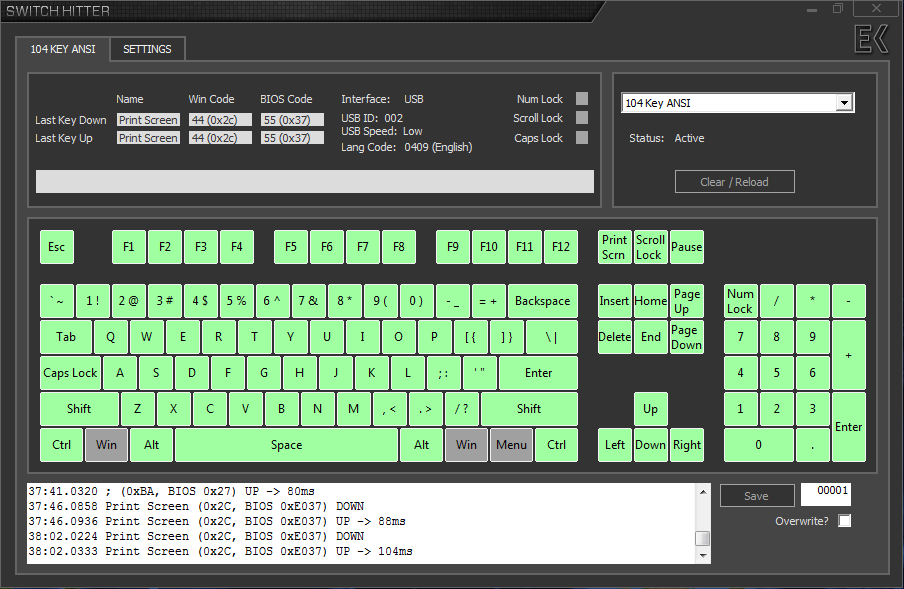

I've updated the Google Photos link with three items:
- force required to achieve actuation point: about 45 grams.
- force required to go past actuation point and bottom out: about 75 grams.
- video of typing with audio. It really makes a great sound.

User avatar
Madhias
BS TORPE

23 Feb 2015, 19:54

Great idea with the arrows!

The sticker on the front is great, i would not get rid of it.

User avatar
Redmaus
Gotta start somewhere

23 Feb 2015, 20:02

That was a very good review I definitely like the photos that were taken.

So you said that the tactile bump does not occur at the same time that the keyboard actuates so if you were to compare this to a bucking spring or cherry mx keyswitch, which relates the most to the space invaders?

User avatar
XMIT
[ XMIT ]

23 Feb 2015, 20:28

Redmaus wrote: So you said that the tactile bump does not occur at the same time that the keyboard actuates so if you were to compare this to a bucking spring or cherry mx keyswitch, which relates the most to the space invaders?
The "tactile" mechanism and the "actuate" mechanism are completely independent on this switch. The former is the result of a plastic arm moving past a bump on the rear of the switch cover. The latter is the result of two "hands" coming together.

From the factory the switch is very carefully calibrated so that these things happen at the same time. But they are not guaranteed to do so! If one of the switch leaves bends (very easy to do) they will happen at different times. It is not like, say, Cherry MX Blue switches, where the click comes from a piece physically moving out of the way of switch leaves, or buckling spring, where the spring must bend in order to actuate the presser foot at the base of the switch.

In terms of key feel, I think this is most like a slightly stiffer clicky Alps. The click mechanism is not like Cherry MX Blue or buckling spring in functionality.

The difference between this and the linear Space Invaders is the presence of the plastic click arm. The linears simply do not have it.

User avatar
Redmaus
Gotta start somewhere

23 Feb 2015, 20:43

Ah. Thank you for the useful information. From the mechanism you described, these must have been very complicated to manufacture.

User avatar
XMIT
[ XMIT ]

23 Feb 2015, 21:40

Redmaus wrote: Ah. Thank you for the useful information. From the mechanism you described, these must have been very complicated to manufacture.
I think they were very simple to manufacture. Getting the bend on the spring just right was tricky, but once they did, they could stamp them out by the thousands. The switches are three injection molded pieces, two stamped plated metal pieces and a spring. They plate mount easily and the switch is closed easily. The part count is low.

The click mechanism doesn't seem all that durable. One of the switch tops (now moved to Pause/Break) doesn't click at all. But even that makes sense. The clicking was presumably added later. The linear switches are quite reliable.

User avatar
Muirium
µ

23 Feb 2015, 22:17

Classic find! I do like these space invader boards. I've got one quite like yours, black clicky switches, but ISO instead of big ass Enter. Mine's got an ABS case because it's fairly yellowed, while all the caps are still pearly white PBT. Anyway, they're a great board for banging away on something furious! The chocky, crunchy, meaty tactile click they have is a glory all itself.
No flaws in my clicky switches. Even after I sent springs flying while pulling all the caps, and bent one right out of shape, on reassembly everything still works just fine. I haven't noticed a difference between click point and actuation, but then again these are heavy switches so I pound it quite hard and wouldn't feel something as fine as a slight discrepancy. I can vouch for my model's NKRO, though. It's a sterling board. The caps remind me of Topre in shape as well as quality, including that sharp profile down front.

Thanks for the pictures of the innards and switch dissassembly. Saves me the bother! I keep using mine so often it's become a routine front line board and I never got around to pulling it apart again.

User avatar
Redmaus
Gotta start somewhere

23 Feb 2015, 22:36

A linear switch seems like a more durable option.

User avatar
Muirium
µ

23 Feb 2015, 22:41

Plenty of things seem one way and turn out another. Ask that pain in the ass Malcolm Gladwell!

In any case, I can assure you I have a hundred good clicky switches here, and NMB/Hi-Tek manufactured them just fine. It's a nice enough wee design.

User avatar
Muirium
µ

24 Feb 2015, 12:36

@jsoltren: Say hypothetically you wanted to chop the numpad off this board to make a TKL mod. Does the PCB look good for doing that? I'm thinking of getting another NMB for this purpose. My current one is in nice shape, so I'd rather spare it, but I did like the placement of its controller away from the numpad!

Basically, what I'm looking for is the whole section of the PCB that's right of where a TKL ends should simply be switches and LEDs, no chips. Then I could cut it off and join whatever I have to, to leave the TKL matrix intact. Like this:

http://deskthority.net/workshop-f7/cher ... t2610.html

User avatar
XMIT
[ XMIT ]

24 Feb 2015, 13:00

I don't have an authoritative answer. But from a quick glance it looks feasible. Maybe take a close look at:

https://plus.google.com/photos?pid=6118 ... 3095878795

The originals are high enough resolution so that you can trace individual lines on the PCB. That is on purpose.

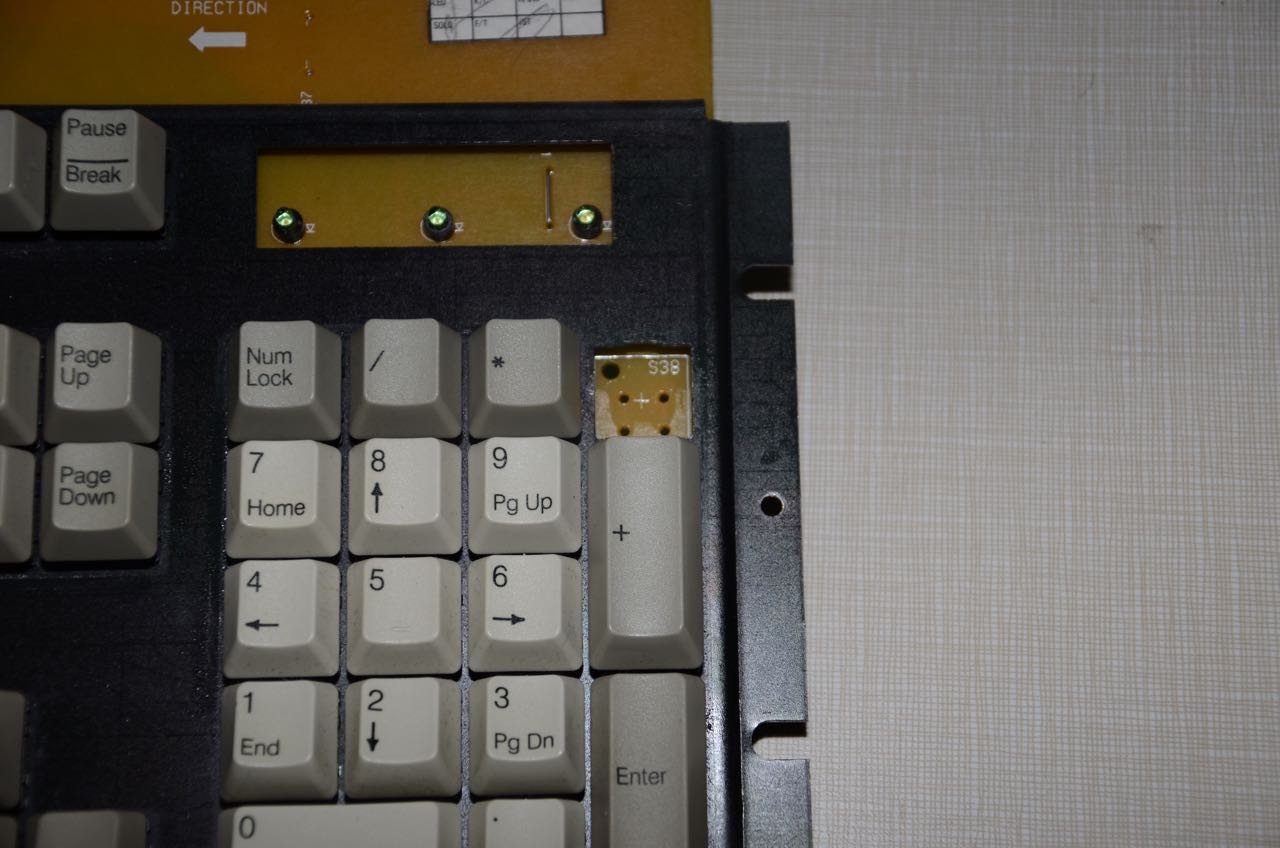

The controller and all of the other fun stuff are above the main key area so the numeric keypad does not contain any logic, just LEDs and switches. I did not see any NKRO diodes on the board. Granted I did not lift the backing plate.
