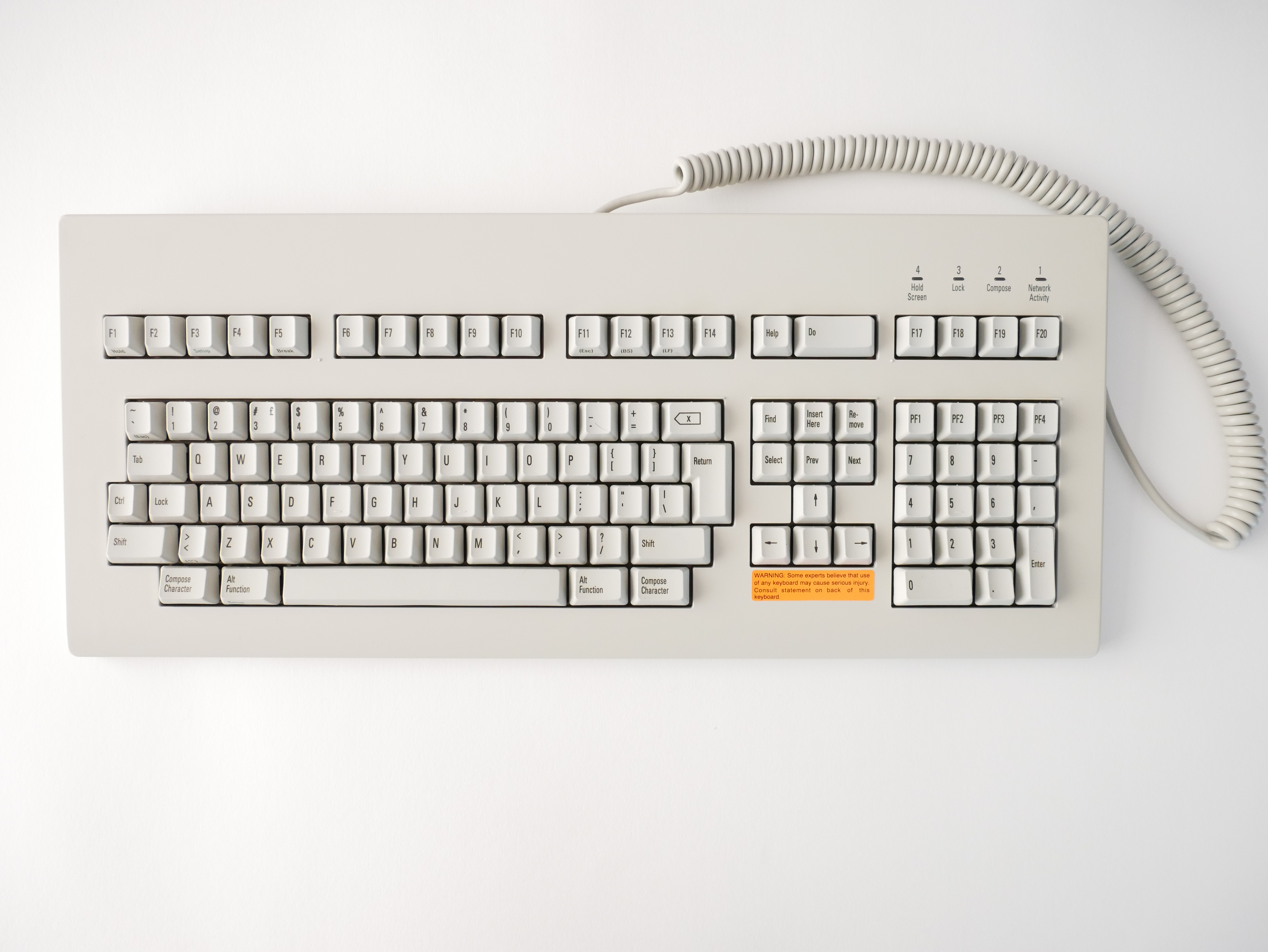

Back with another NCD find. This time it's a N-108LK in a DEC Style layout. This keyboard uses HI-Tek 725 Series Linear White 2 Eye switches.
Just like the other the other NCD keyboard this one is NOS(New Old Stock). Additionally, this keyboard uses white clicky switches that are now linear due to the click arm being removed.
Unfortunately, when I got this keyboard and plugged it in I noticed that the keyboard was not mapped correctly and the keyboard was also not sending break codes. Also the lock lights really didn't work properly at all either.

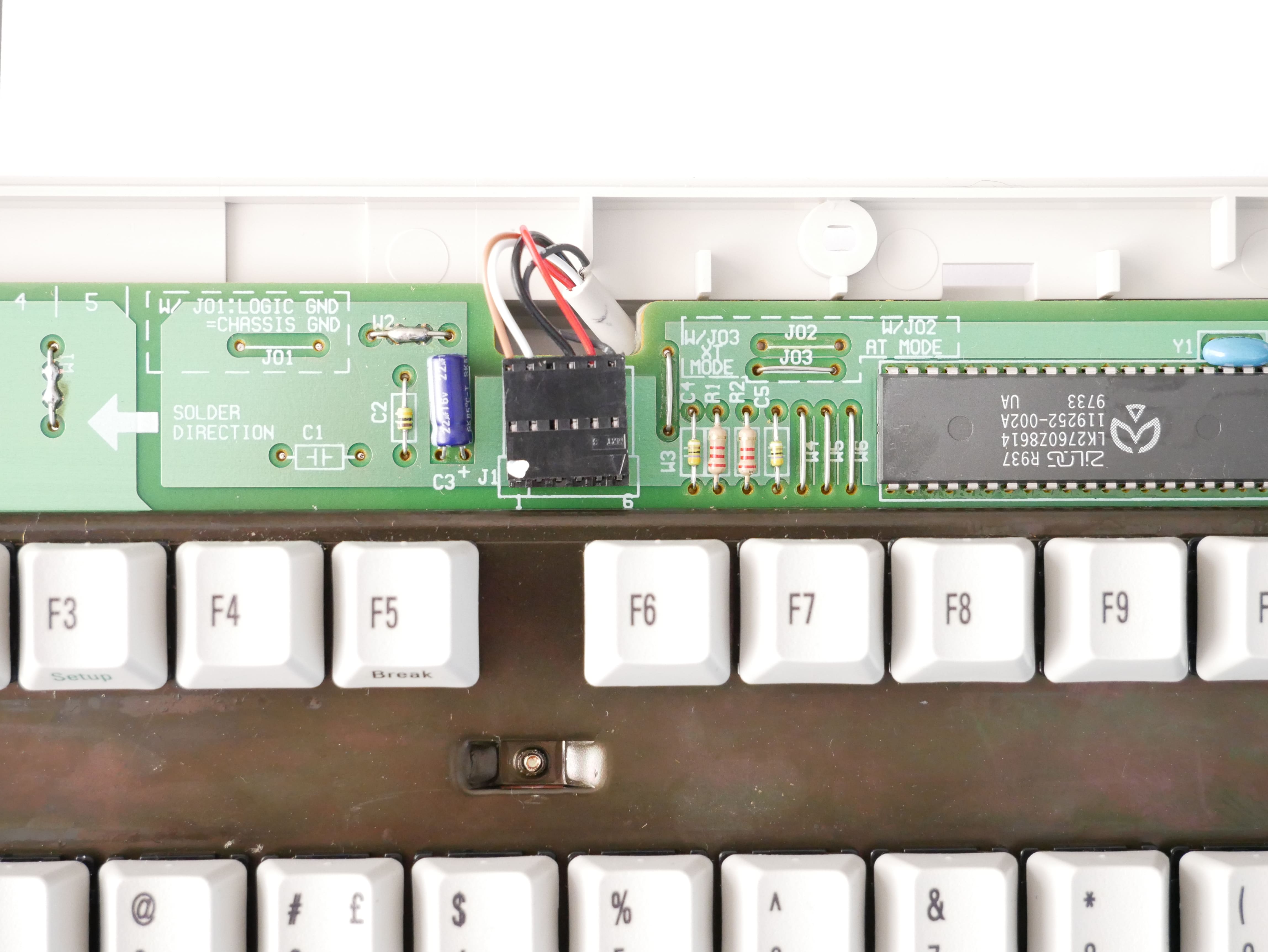

So time for some investigate work.... I noticed that there is a jumper that set the main controller either into XT or AT and currently it was in the AT position. Rather having to remap the whole keyboard and deal with sending fake break codes I put the keyboard in to XT.
Now most of the keys are remapped properly but not all. That being said the main concern was being able to use the original cable that came with the keybaord as I'm typing this out on said keyboard.
I will post an edit with the proper remap for Soarer's converter later on once I build one with the proper remap.
He is the reamp file for Soarer's converter.
I also noticed that this keyboard also has N key rollover which I surprisingly I failed to check for.
Code: Select all
remapblock PAD_EQUALS DOWN F12 UP F11 LEFT FAKE_01 RIGHT PAD_PLUS PAD_ENTER EXTRA_SYSRQ LGUI EXTRA_F4 INSERT EXTRA_PAD_PLUS DELETE EXTRA_F5 HOME INTERNATIONAL_6 END EXTRA_F6 PAGE_UP EXTRA_F1 PAGE_DOWN F17 PRINTSCREEN F13 F12 EXTRA_F7 F11 endblock
Thanks for reading!
