I made a 9-key Programmable Mechanical Keyboard

[edwardrford]

Hey All - this is my first post - though I've been lurking here for some time.

The idea of doing a from scratch keyboard has crept into my mind and I haven't been able to get rid of it. I'd like to do the whole thing (minus the firmware) - Design and mill the PCB, cover plate, and case. It's a big task and I haven't convinced myself to start just yet.

instead, i decided to test the waters by making a 9-key programmable keypad. I used MX Blue switches and some spare keycaps I had around the shop.


I used a promicro for the controller, but because it is only 9 keys I just directly mapped each key to a pin instead of doing a matrix. Right now the 'firmware' is just an arduino sketch which looks for the button press, then sends out the appropriate ASCII code.

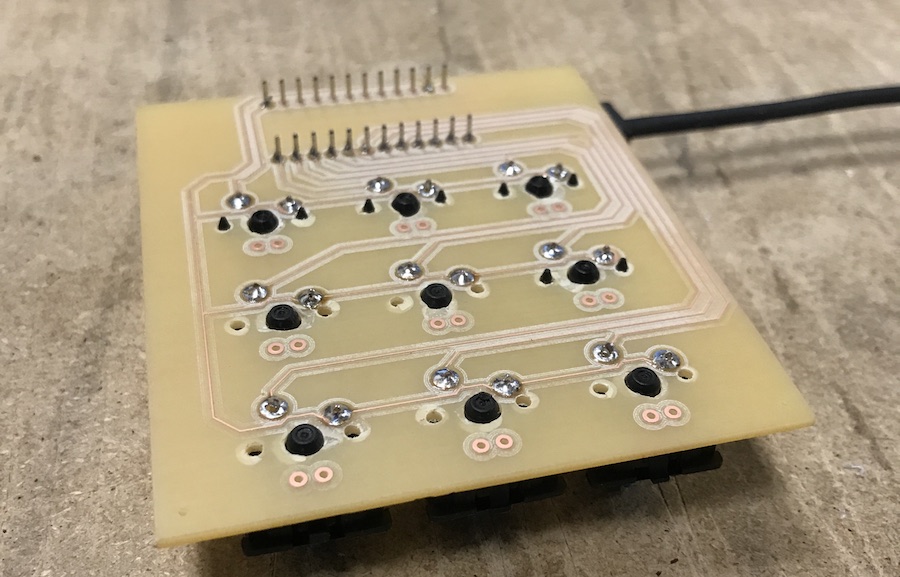

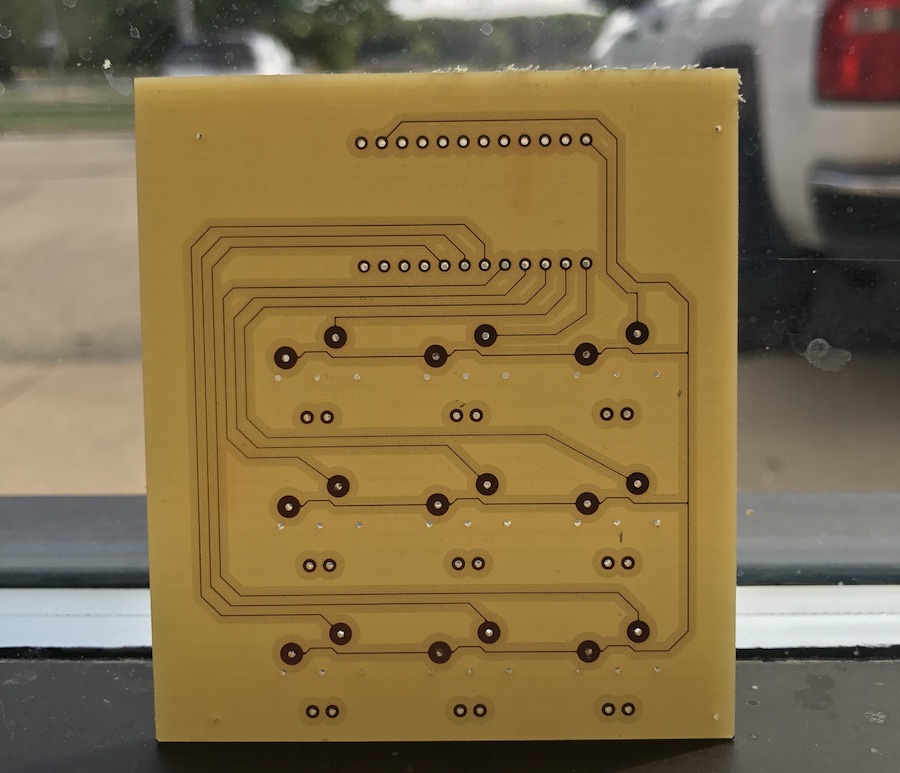

The PCB design was pretty straight forward - I wanted to keep everything in a small footprint, but I also wanted it to be a single sided board so I could cut it on my CNC without worrying about locating for a flip, and keeping everything lined up. All in the board was 2.75" x 3.125" and I managed to get all the traces on one side without growing it too much.

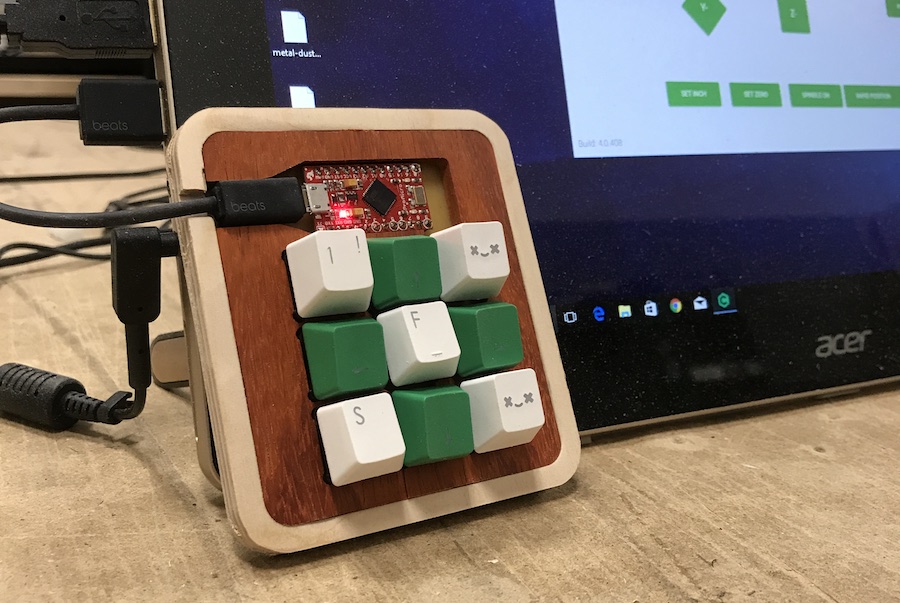

I used my CNC to cut the cover from mahagony and the bezel from a piece of 9mm baltic birch. everything snap fit nicely together. Although, I may switch out baltic birch bezel for a piece of aluminum to give the whole thing some weight.

Anyway - thanks for looking, let me know what you think!

-Edward

[OldIsNew]

That's very cool! Very nice looking case and I love the PCB. I'm unfamiliar with actually making a DIY PCB - what did you use to lay down the traces?

[edwardrford]

Thanks!

I used a program called Eagle - it's pretty popular in the PCB world, was bought by autodesk about a year ago. There is a free version that lets you make boards up to 4"x6" (single or double sided) - beyond that you have to pay the subscription.

The software is not the most intuitive thing in the world (think mid 80's autocad style UI) but it works and has a lot of libraries baked in, so selecting components (like the arduino and the mx switches in my case) is no more than point and click and place.

-Edward
