kbdfr wrote: A shame someone virtually destroyed that board just for a few caps.

The real issue here is the broken caps lock key, I have no idea why someone would do that

y11971alex wrote:

monterey k101, either alps skcm blue or mitsumi miniature yellow (the latter seems less common than the former)

Hoping for blue alps then.

Pwner wrote: Had a friend send me this board recently, no badges/labels that I've seen. I'm assuming a G80-04XX but I am not sure.

Wow, that was part of a portable case setup, it fit into the front of the case and locked in place with two sliding catches. I think I still have one here with a 386 motherboard inside. It was sold as a case/keyboard/power supply unit and you added your own motherboard and cards to make it a system.

Polecat wrote:

Pwner wrote: Had a friend send me this board recently, no badges/labels that I've seen. I'm assuming a G80-04XX but I am not sure.

Wow, that was part of a portable case setup, it fit into the front of the case and locked in place with two sliding catches. I think I still have one here with a 386 motherboard inside. It was sold as a case/keyboard/power supply unit and you added your own motherboard and cards to make it a system.

yup, that's how I originally got it. I would have loved to have gotten the whole systems but shipping would have been too much. I got the seller to remove the boards.

It's a Zenith Data Systems keyboard.

What switches could it have?

Honeywell rubber dome it seems:

https://geekhack.org/index.php?topic=54174.0

Not to be mistaken for the Silitek rubber dome version:

keyboards-f2/zenith-sk-2000re-t8236.html

(Different shape case)

Thanks.

kbdfr wrote:

Pwner wrote: Had a friend send me this board recently, no badges/labels that I've seen. I'm assuming a G80-04XX but I am not sure.

A shame someone virtually destroyed that board just for a few caps.

Pwner wrote:

hansichen wrote: Good luck trying to restore this board, he pretty much only took unique caps which are not easy to replace. You can probably just buy a new board instead of investing time into this one...

I have plenty of other boards so it's not a big deal. It will probably just sit on my shelf and collect dust until I figure out what to do with it.

Well, I happen to have one of those unique keycaps: the PrtSc *.
Plus the F keys (correct profile) but missing F9, and the numrow 0 key but with non-striked 0 (and perhaps different hue).
Please PM me if you are interested AND if you intend to somehow restore the board

I appreciate that offer and I will certainly be sending you a PM.

Pwner wrote: Had a friend send me this board recently, no badges/labels that I've seen. I'm assuming a G80-04XX but I am not sure.

This may be an XT-only board (no SysRq key), and from the connector photo one that may require a reset connection. That would explain why it wouldn't work on most converters. Just thinking out loud. I believe mine was XT/AT with a slide switch, but they sold these for several years and probably more than one version.

Polecat wrote:

Pwner wrote: Had a friend send me this board recently, no badges/labels that I've seen. I'm assuming a G80-04XX but I am not sure.

This may be an XT-only board (no SysRq key), and from the connector photo one that may require a reset connection. That would explain why it wouldn't work on most converters. Just thinking out loud. I believe mine was XT/AT with a slide switch, but they sold these for several years and probably more than one version.

That wasn't this board. I picked up a G80-0693 from Mike a few weeks or so ago and that one wouldn't work for him. This one should be relatively simple to convert.

y11971alex wrote:

LOVE the Model-M style casing, superb on every level .

I hope you get an all Alps type switch with it, so you get a slight feeling of what old IBM iron feels like .

Polecat wrote:

Pwner wrote: Had a friend send me this board recently, no badges/labels that I've seen. I'm assuming a G80-04XX but I am not sure.

This may be an XT-only board (no SysRq key), and from the connector photo one that may require a reset connection. That would explain why it wouldn't work on most converters. Just thinking out loud. I believe mine was XT/AT with a slide switch, but they sold these for several years and probably more than one version.

as I said above the board does not work reliably, even under genuine xt class hardware. the real issue is the board I believe.

Somebody know something about the second one from up or if it matchs with this board?

How much do you calculate that it can be worth?

https://gyazo.com/bb3c43211e965a502453bbc97a9abf13
https://gyazo.com/1c4c2d5a0af7fcd0136e9e4da9bb7868

Ivalop750 wrote: How much do you calculate that it can be worth?

https://gyazo.com/bb3c43211e965a502453bbc97a9abf13
https://gyazo.com/1c4c2d5a0af7fcd0136e9e4da9bb7868

$0

it's maxi switch dome with slider, noone wants that

Can anyone identify the teal switches in this image? Looks like they might be some kind of Omron B3G-S clones but don't remember ever seeing them before.



P.S. Anyone know where the orange SMK switches come from? I don't think I've ever seen a keyboard with them.

I think the teams are KPT but I'm not sure I never remember

the orange SMK are found on AliExpress and Taobao easily though I'm not sure I've ever seen them in a board before :/

Blaise170 wrote: Can anyone identify the teal switches in this image? Looks like they might be some kind of Omron B3G-S clones but don't remember ever seeing them before.

Spoiler:

P.S. Anyone know where the orange SMK switches come from? I don't think I've ever seen a keyboard with them.

The teal switches should be Dai-Ichi_CL-1145_Green

Hey. Am I right in assuming that keyboard is Cherry made and will almost certainly have MX blacks? Nice spherical caps, eh? Still trying to convince the owner to sell / send it to me without that monster of a printer, though...

I'm almost certain it has Cherry M8 switches, see: wiki/Cherry_G80-0662

I would guess it has M8 instead of MX, seems to be the same layout as G80-0662

Most likely that's Cherry M8. These keycaps look like the flat cherry caps and Cherry liked to use those with M8 switches (eg the G80-0662). Also this is a laptop so it would make sense to use low profile switches, there are some other laptops which use M8 + these caps too.
As far as I know these style of caps can come with mx black too but there is a low profile and a medium profile version of the caps, I would expect that the medium profile version comes with MX but I don't have personal experience in that regard.
The laptop with the printer is still a nice thing due to its absurd color, lovely piece of computer hardware

M8 - I see, thanks a lot. I'll pass then. Seller in Germany is only asking for 20€, but it might be tough to convince him to mail it. Here is the URL: https://www.ebay-kleinanzeigen.de/s-anz ... pp_android

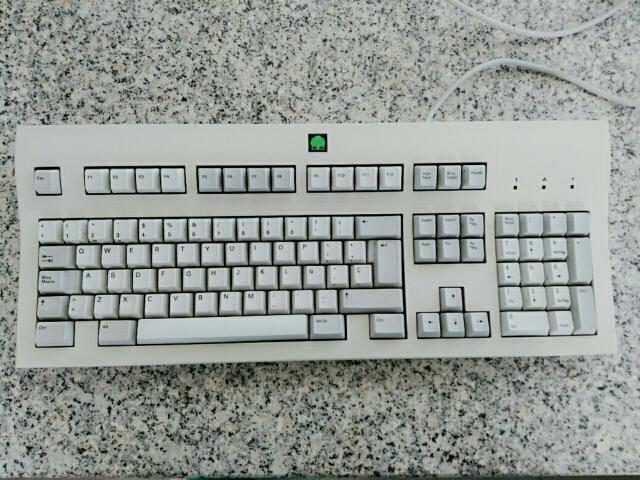

Can it be like a fujitsu FKB4725? I can buy it for € 5, what do you think?

For $5 I would be very tempted, as those switches (Peerless) are really interesting, and that one has proper 105-key ISO layout (mine's only 102-key, which is a deal-breaker for me). Be careful about cleaning though as the space bar has a weird little spring around the stabiliser wire for stiffness (mine's around the wrong way and it's jammed the space bar solid) and the wide keys may need lubricating after cleaning otherwise they can become too stiff to use. (I've never tried to resurrect mine.)

I have what appears to be a black version of NEC oval switches, but unlike the others I have, it uses Futaba inverse mount keycaps. Have these been documented anywhere before?



I've also got some other stuff to go over, but this is all for now.

Blaise170 wrote: I have what appears to be a black version of NEC oval switches, but unlike the others I have, it uses Futaba inverse mount keycaps. Have these been documented anywhere before?



I've also got some other stuff to go over, but this is all for now.

Hmmm, I had a loose switch of one of these in the past, I believe I gave it to chyros.

mike52787 wrote:

Blaise170 wrote: I have what appears to be a black version of NEC oval switches, but unlike the others I have, it uses Futaba inverse mount keycaps. Have these been documented anywhere before?



I've also got some other stuff to go over, but this is all for now.

Hmmm, I had a loose switch of one of these in the past, I believe I gave it to chyros.

Yes, I've got one. It's linear.
