Devlin terminal keyboard converted

[hypkx]

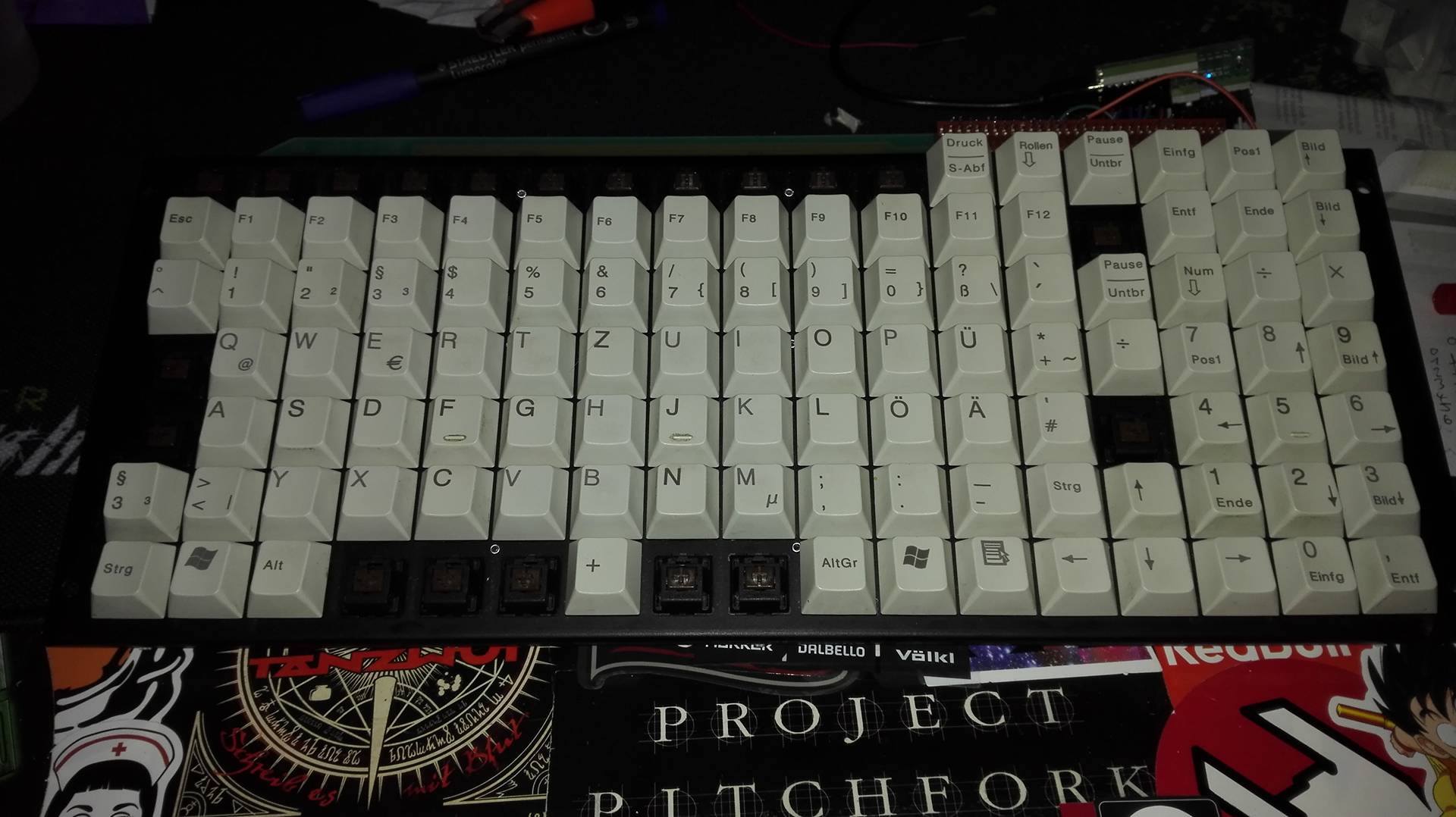

Some time ago I got a lot of terminal keyboards.
I tried to convert one of them.

Spoiler:




First it has no diodes, so there is keyblocking, but all in all it is usable.
I thought it was a simple 7X16 matrix, but it was not that easy.
The keyboard has rather a 8X15 Matrix, if you count colum 9 is on row 8.

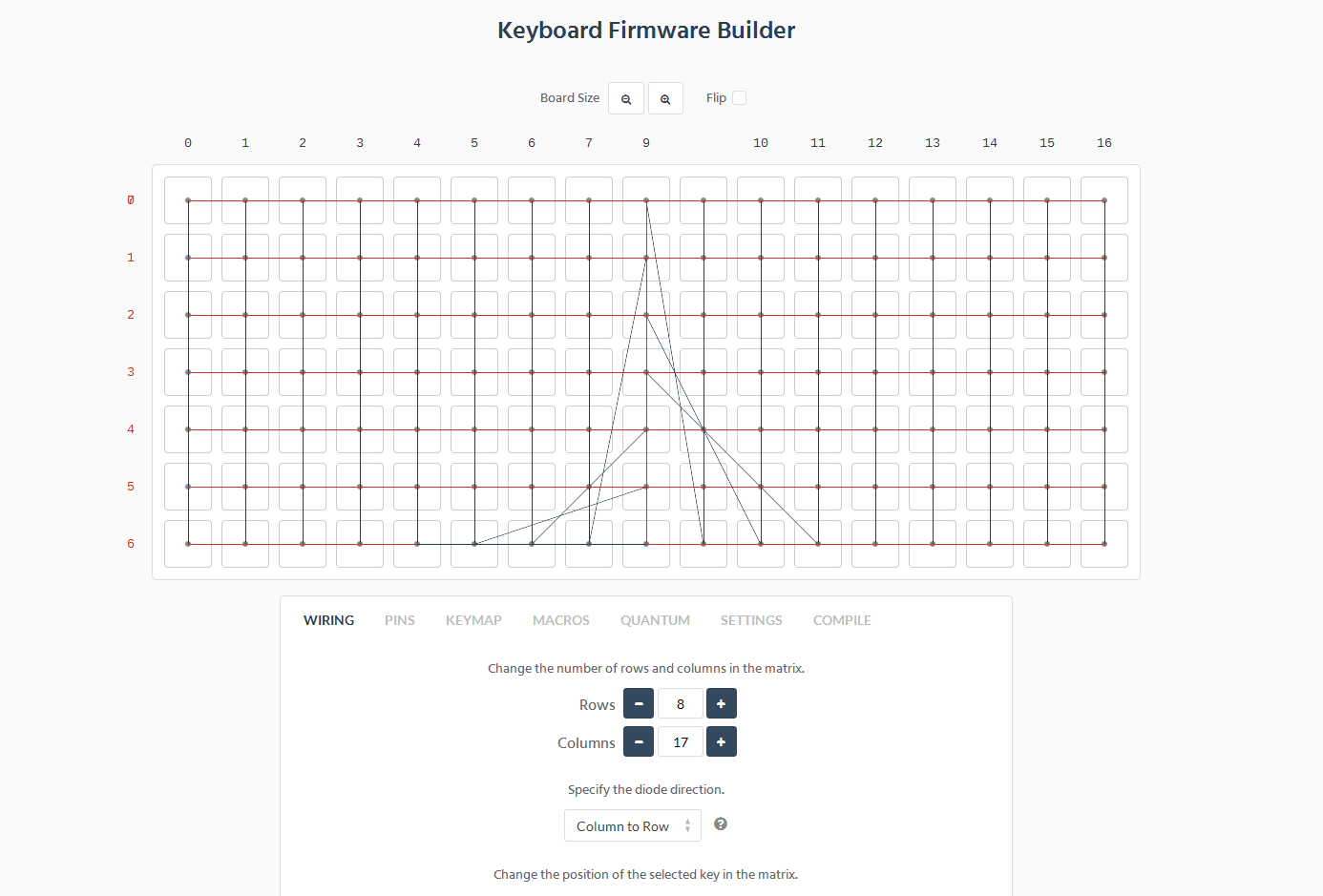

2017-07-10 00_59_17-[#] Keyboard Firmware Builder.png (65.8 KiB) Viewed 1267 times

Spoiler:

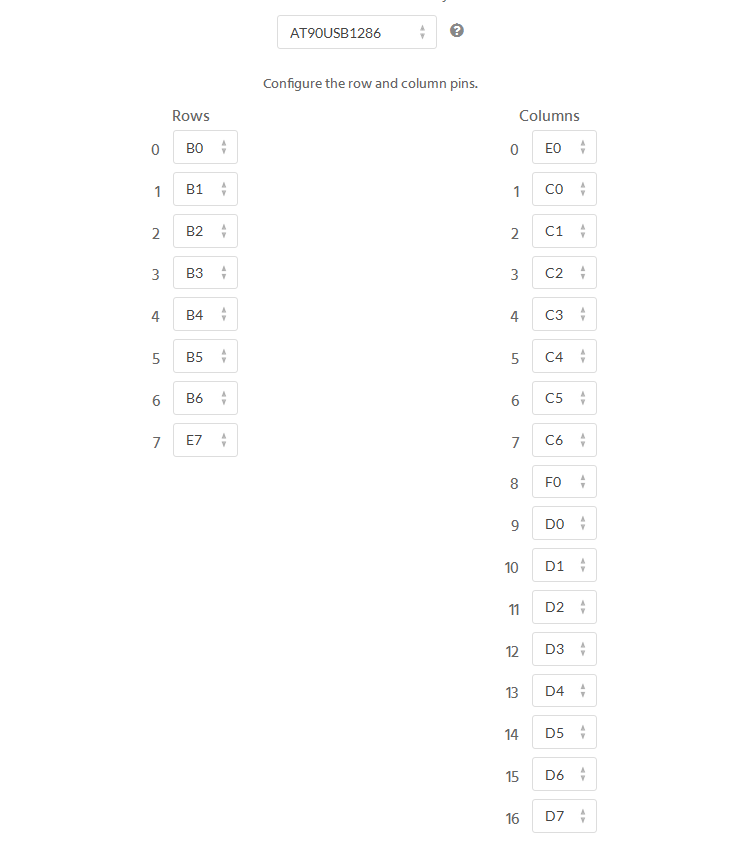

2017-07-10 00_59_45-[#] Keyboard Firmware Builder.png (28.16 KiB) Viewed 1267 times

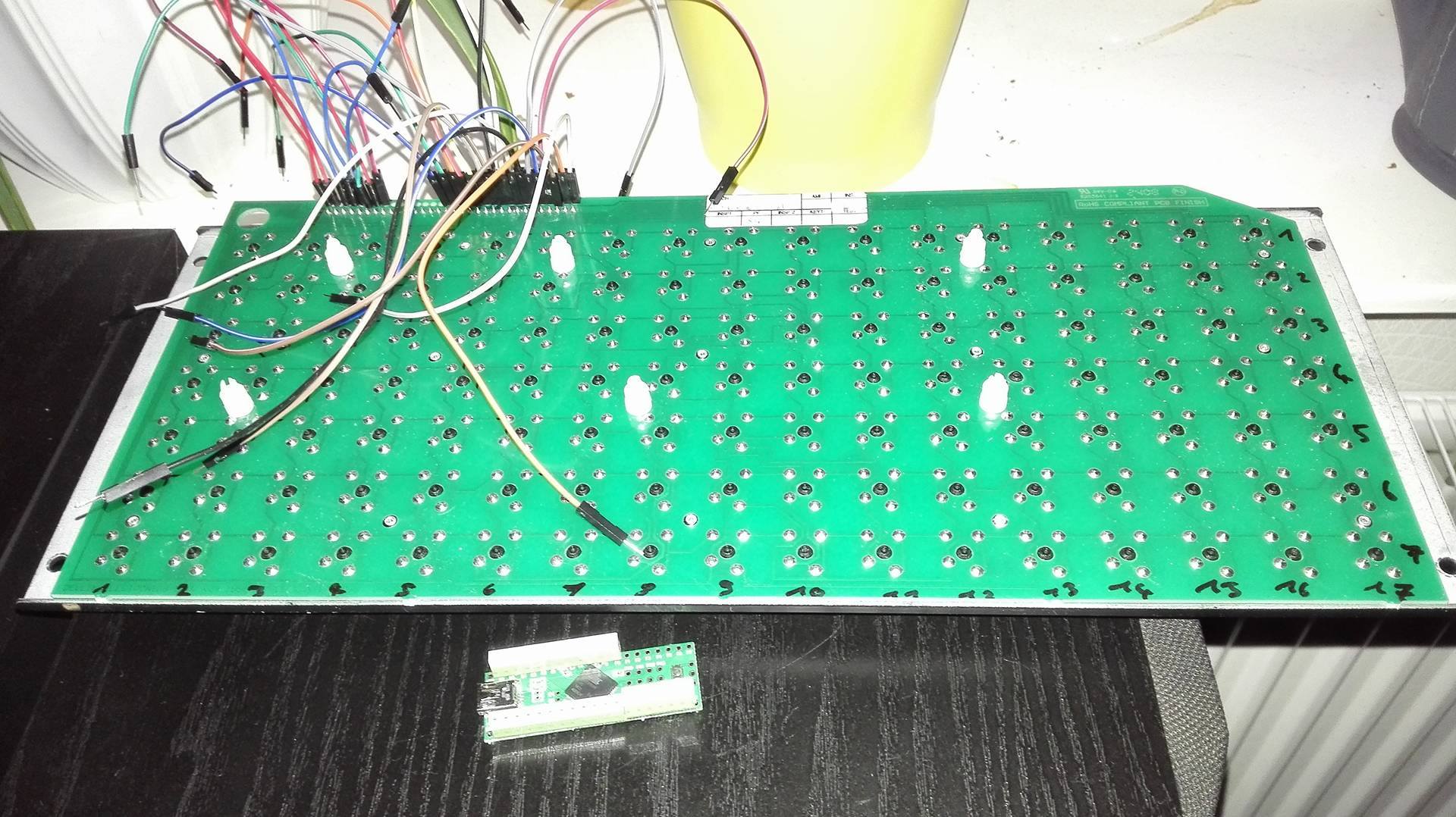

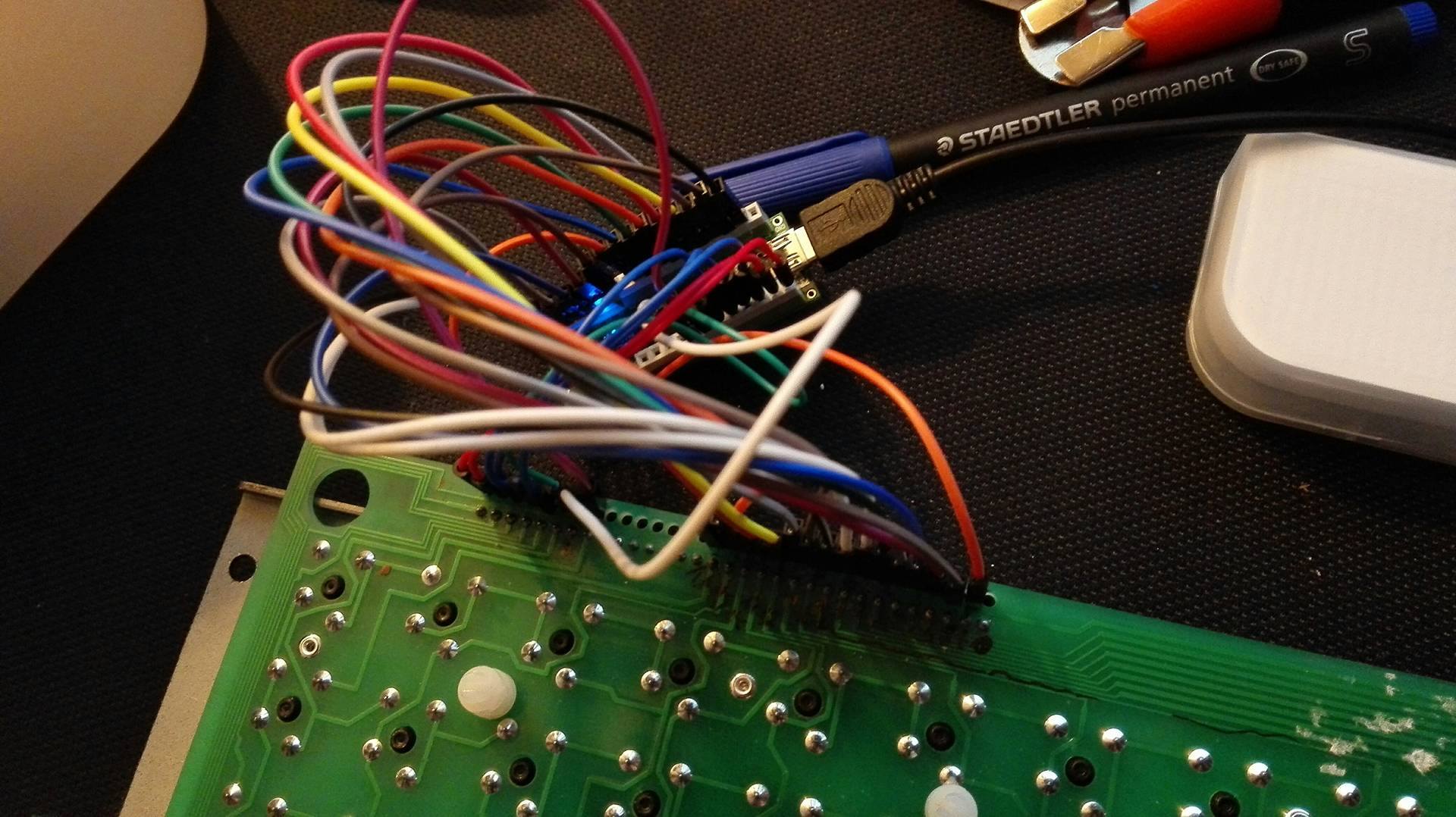

I used a teensy 2.0++, but i think a normal teensy would also work.
Here are my files, if you have questions PM me.

http://s000.tinyupload.com/index.php?fi ... 9053294263
http://s000.tinyupload.com/index.php?fi ... 3663997548

photos-f62/devlin-terminal-keyboards-mx ... ml#p377782
