Atex Newspaper Editing Terminal Keyboard Model DIN-40

User avatar
JP!

19 Apr 2019, 22:53

I received two of these interesting Atex newspaper editing terminal keyboards from PDP_11 and figured I would post a quick teardown. From the two I would eventually like to restore one into the best condition as I can.

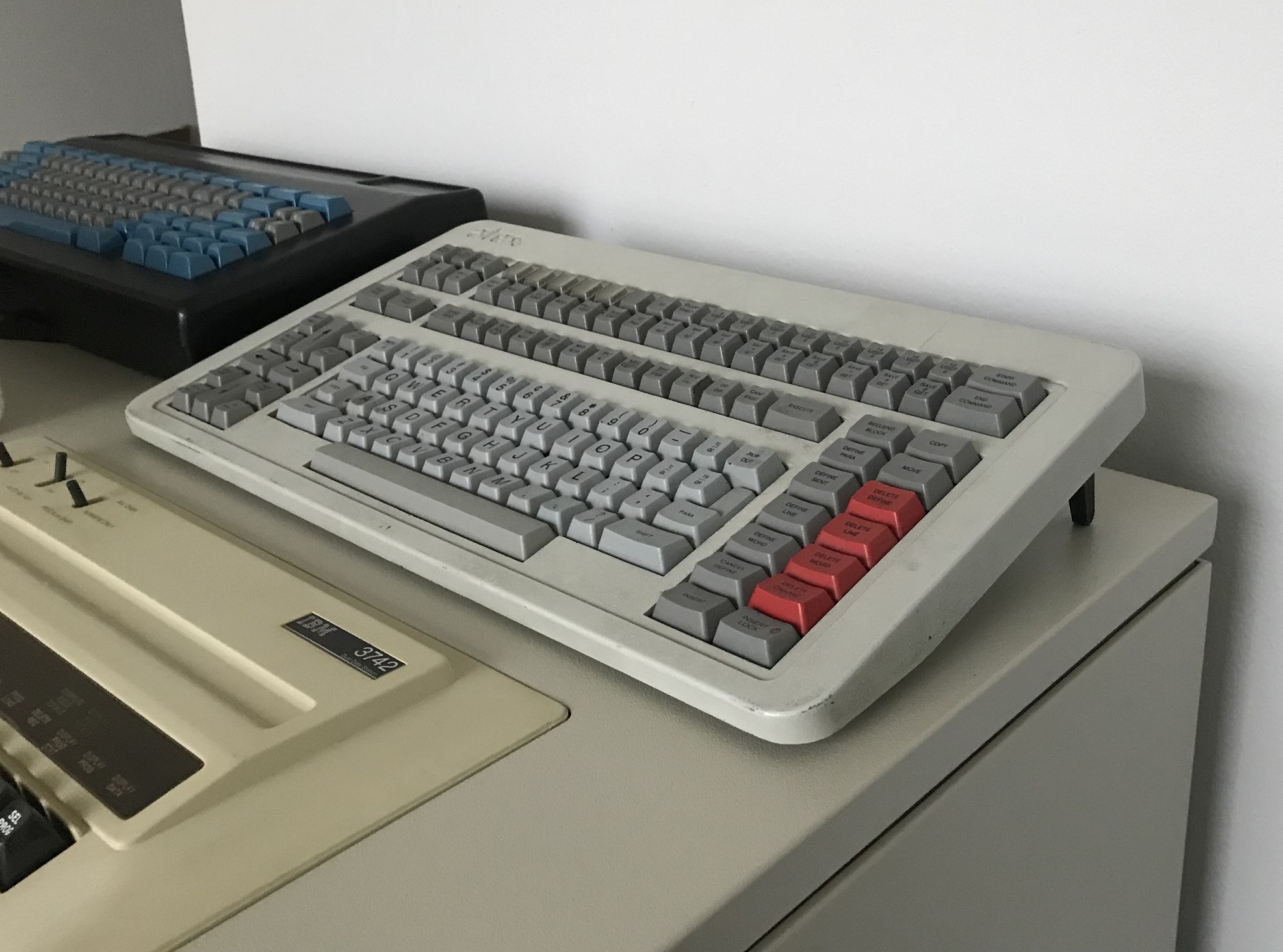

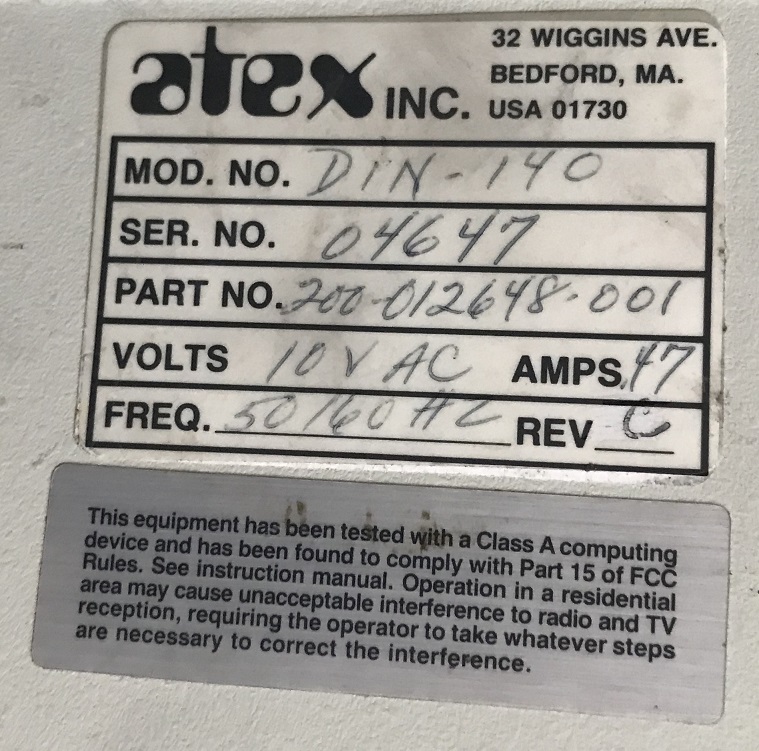

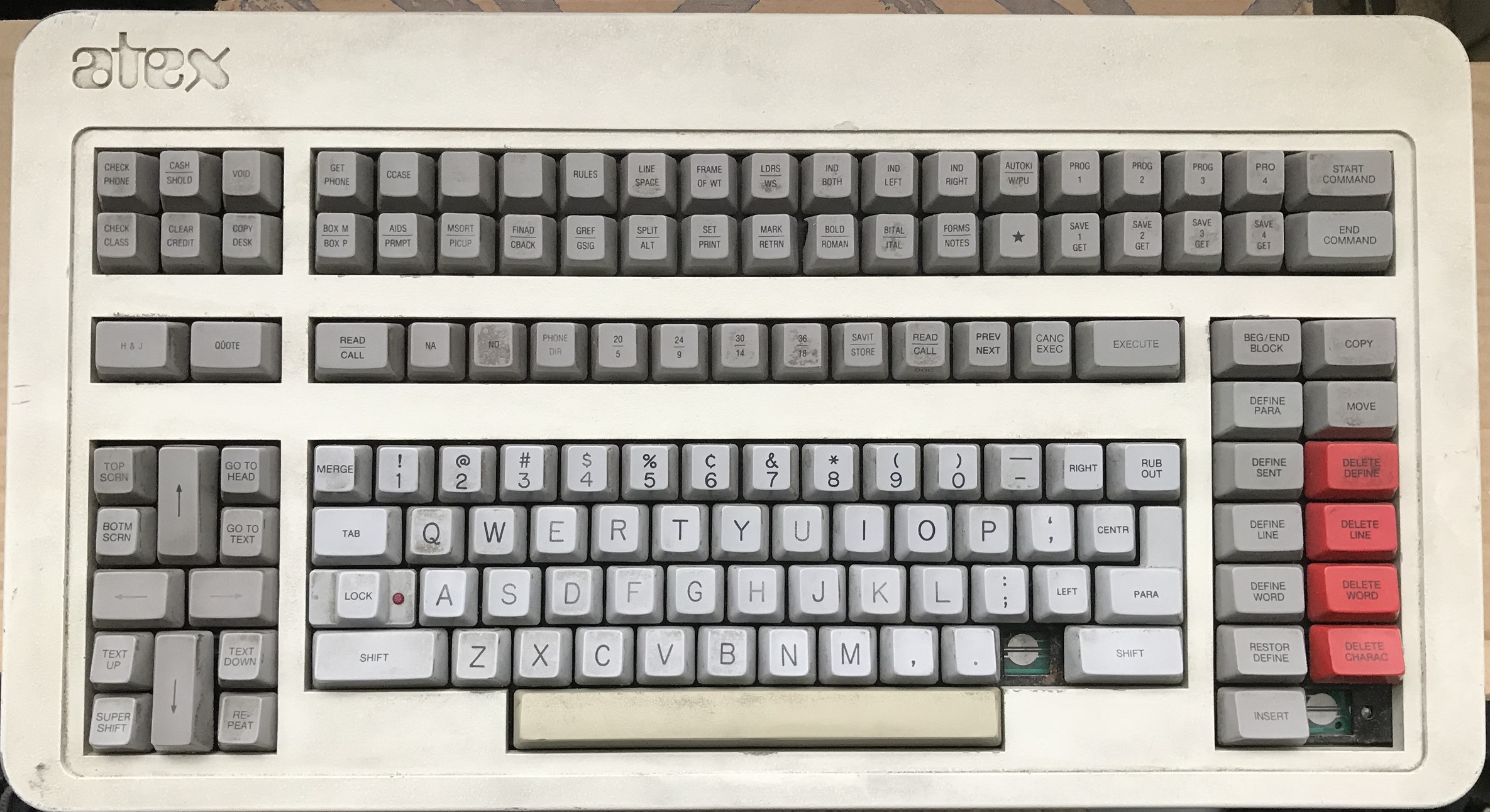

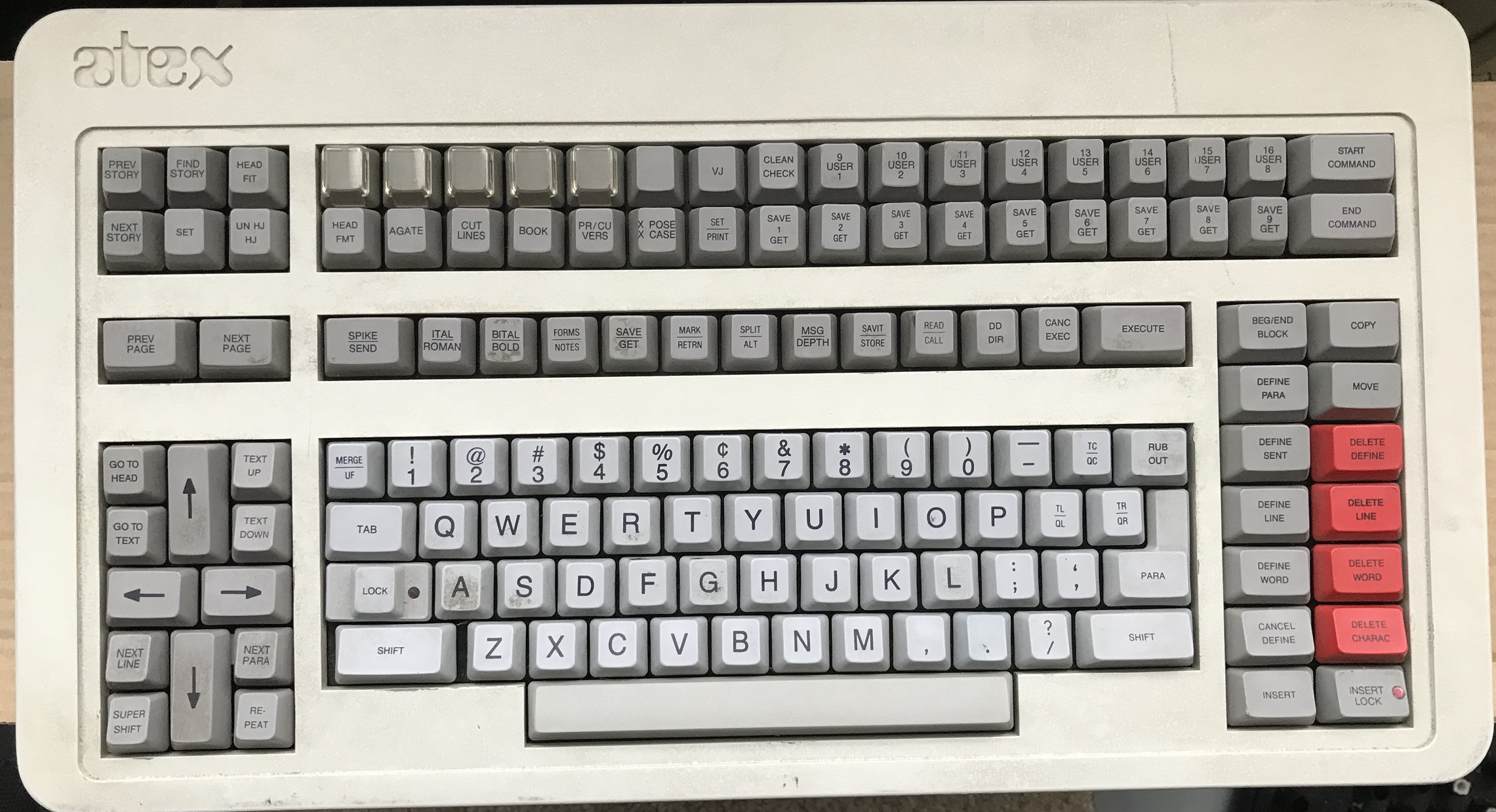

Atex Model DIN-40:

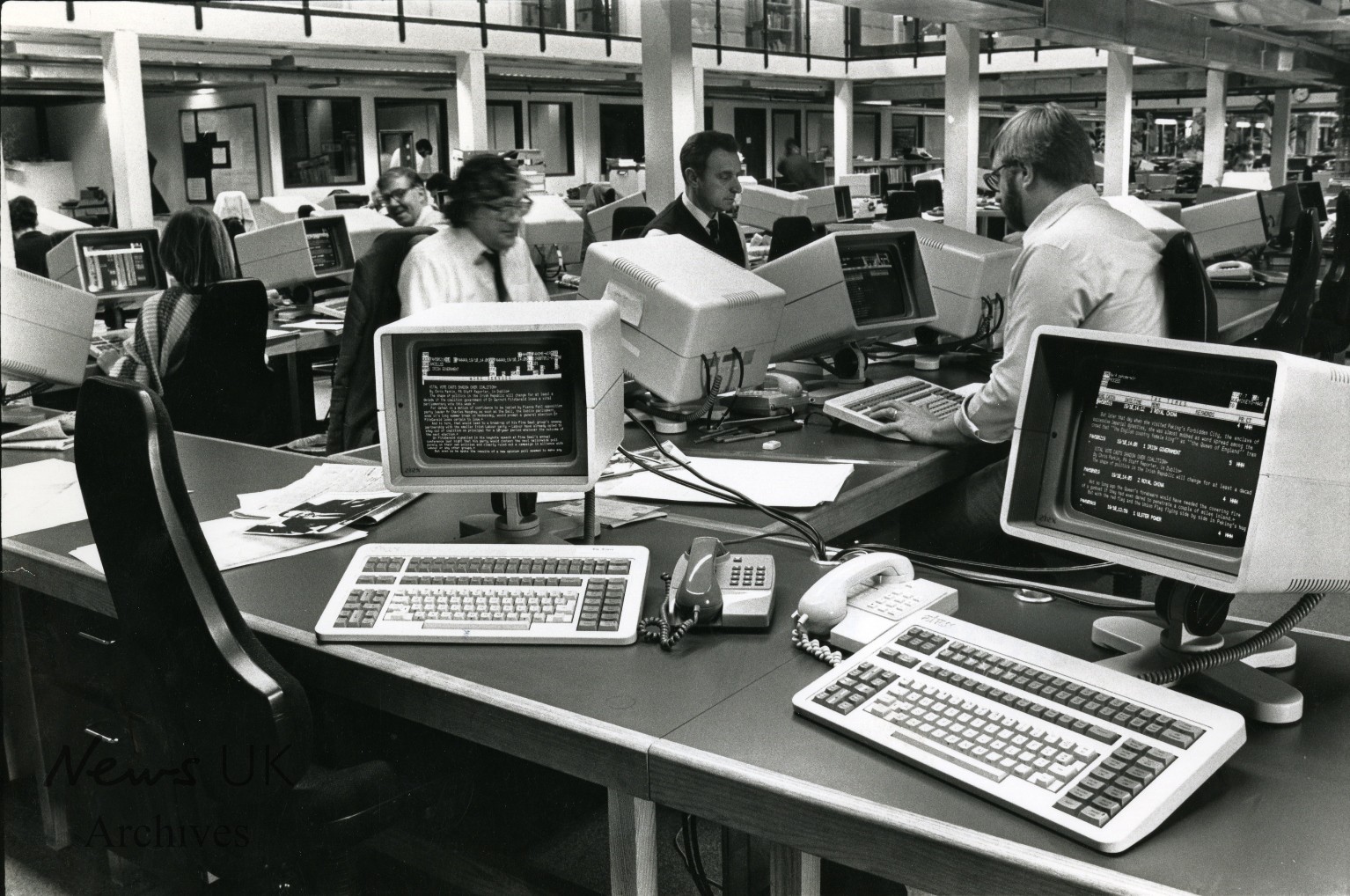

Old news:

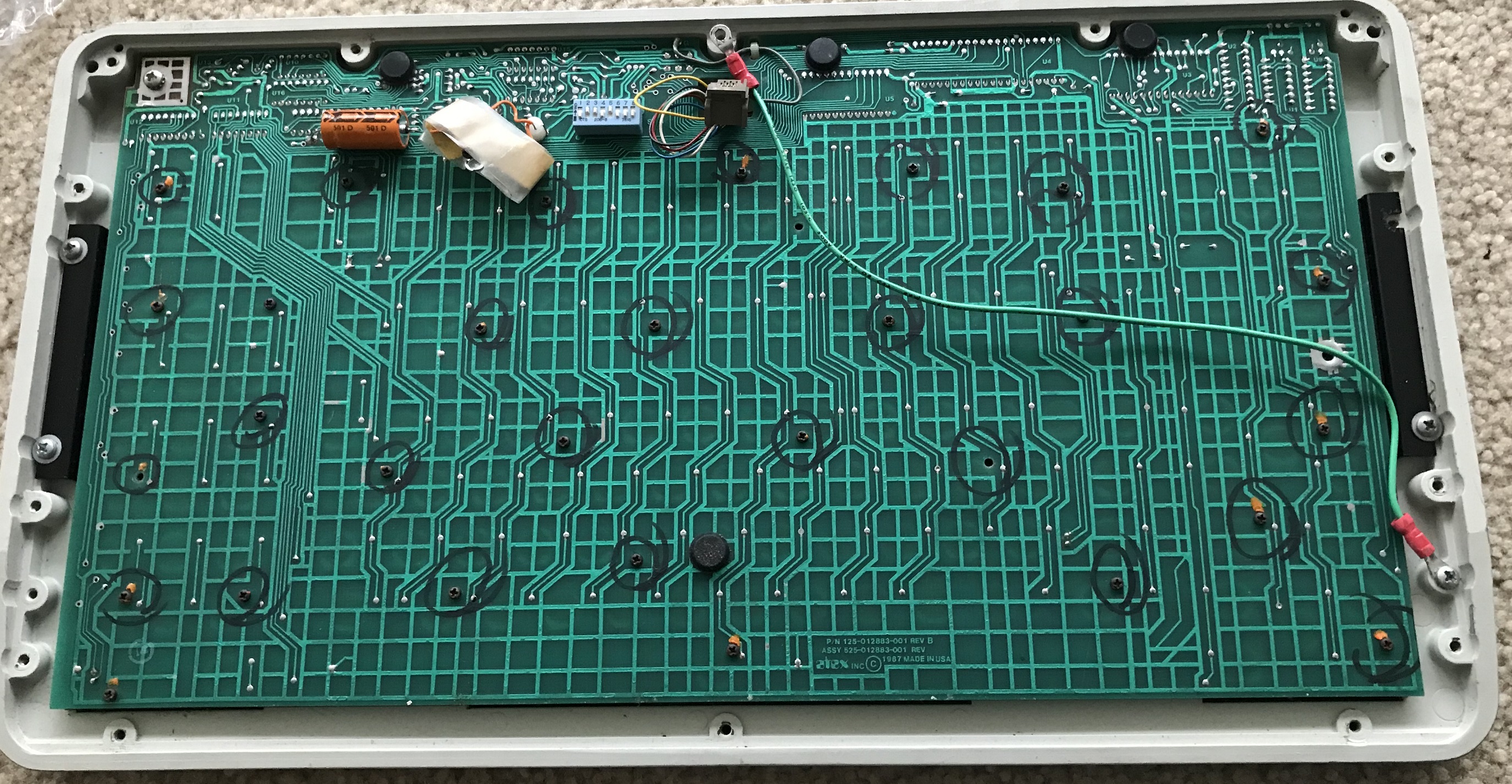

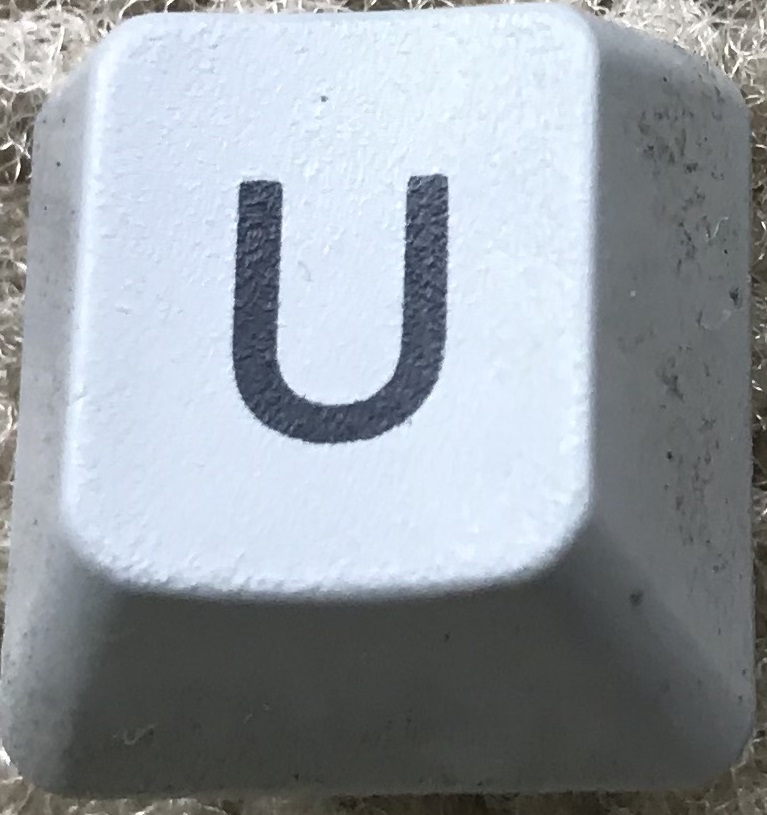

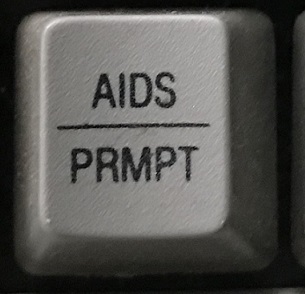

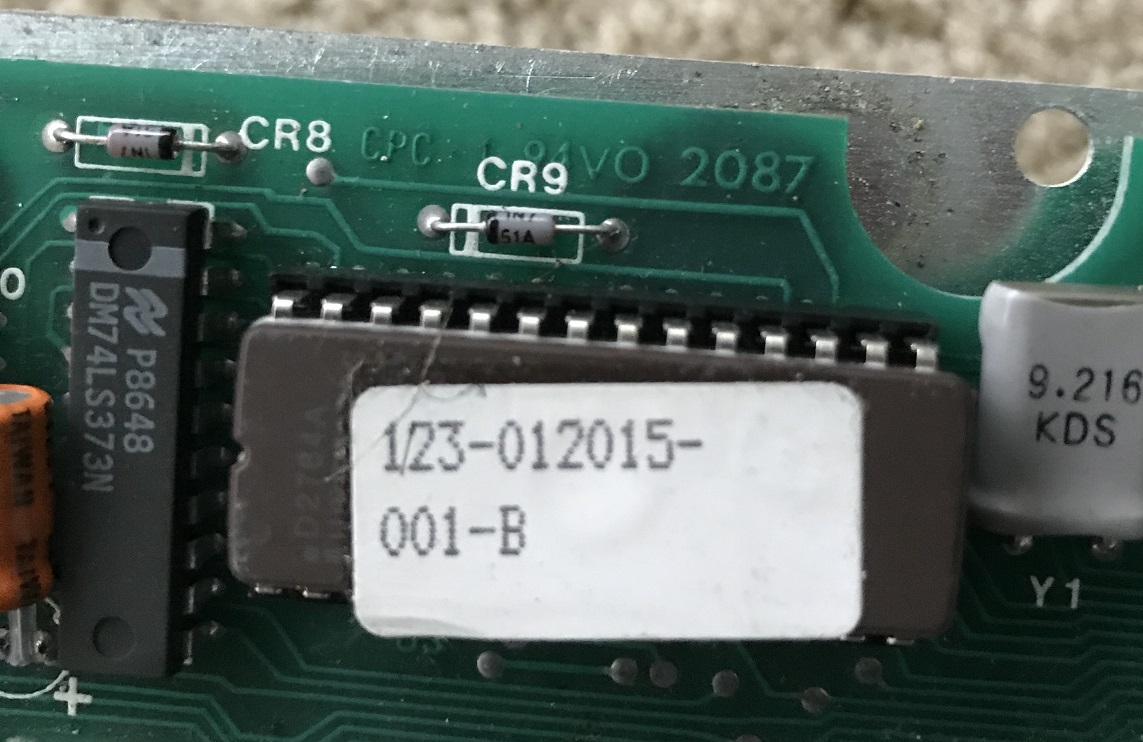

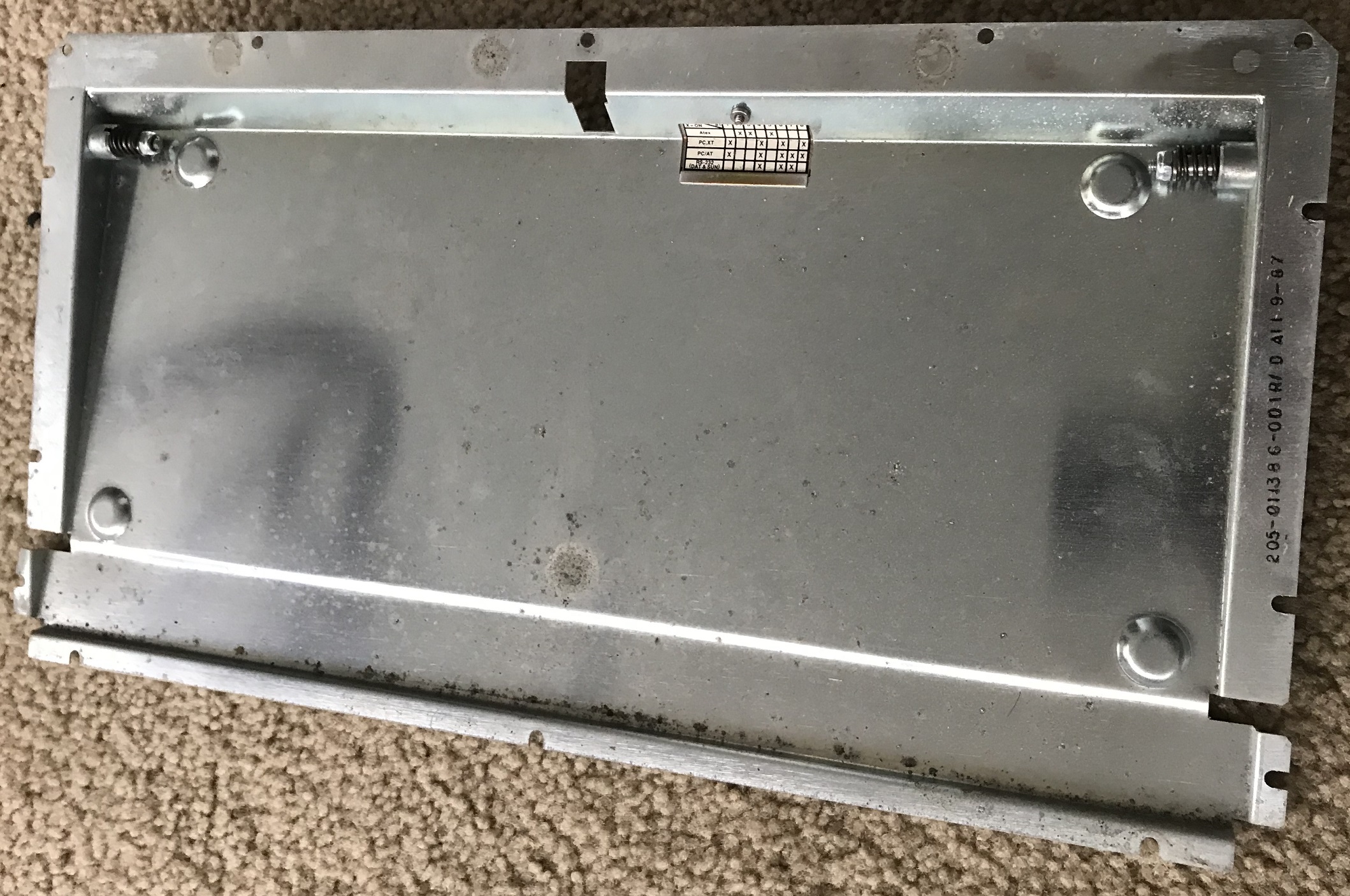

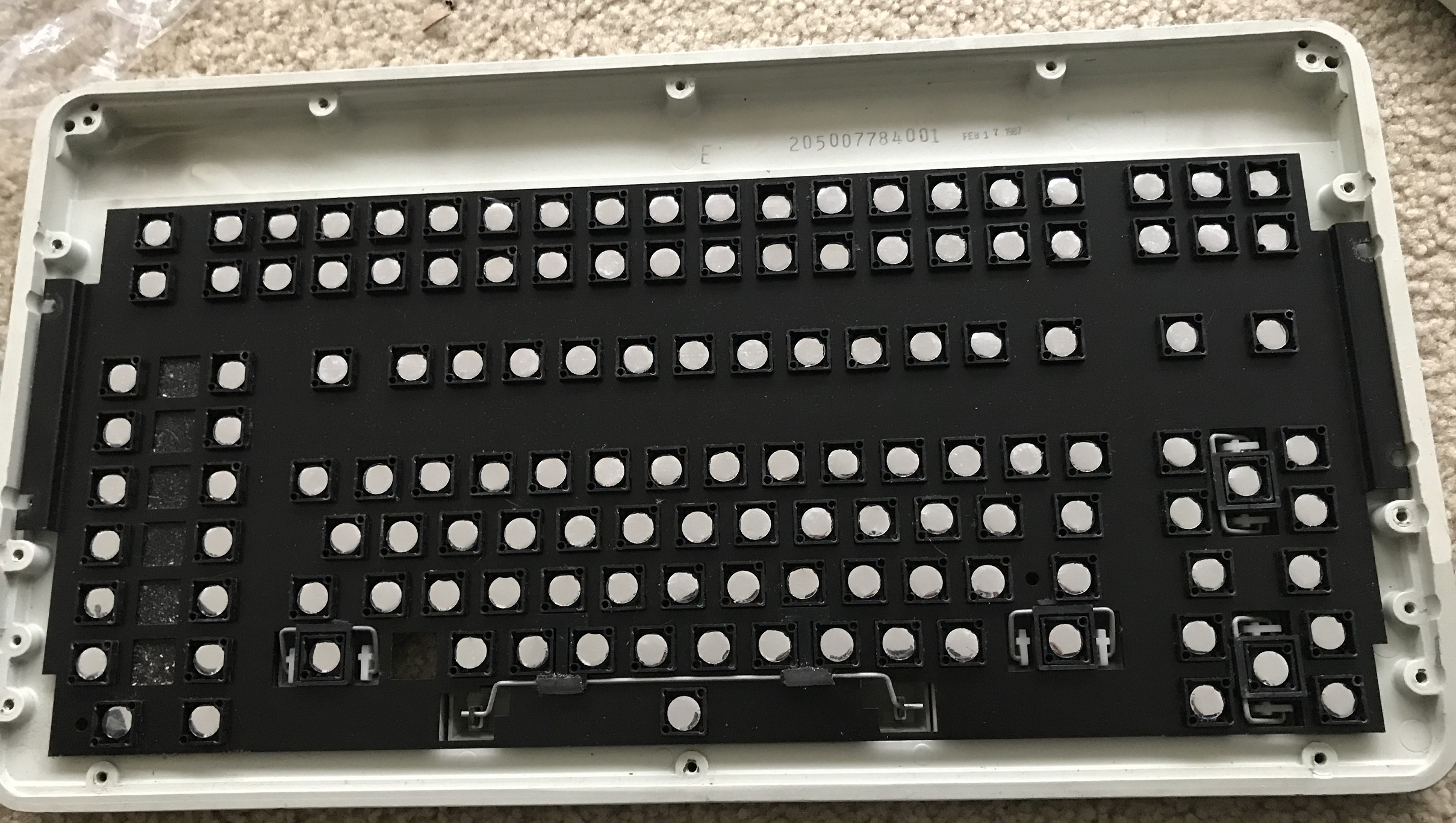

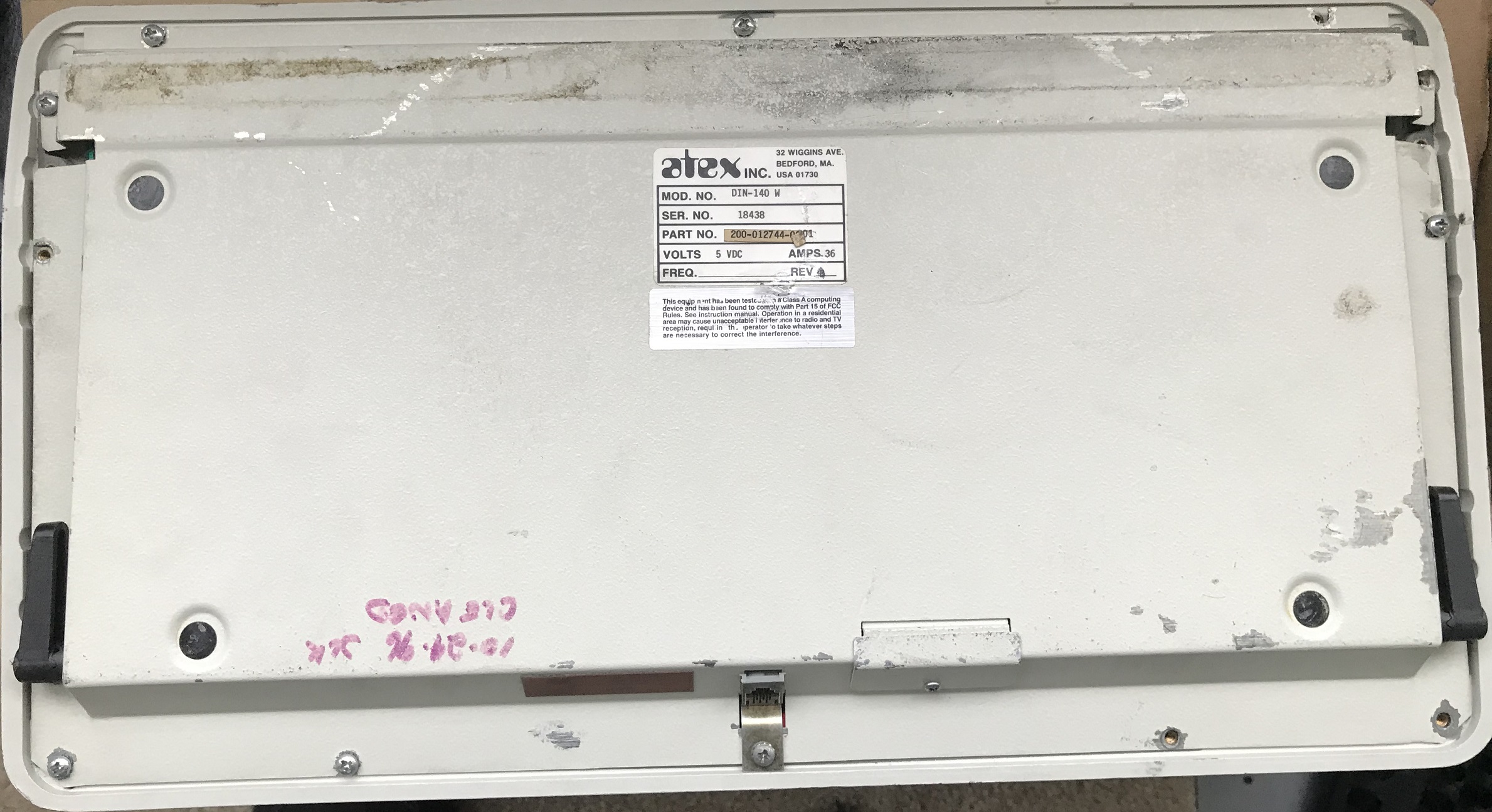

The teardown:

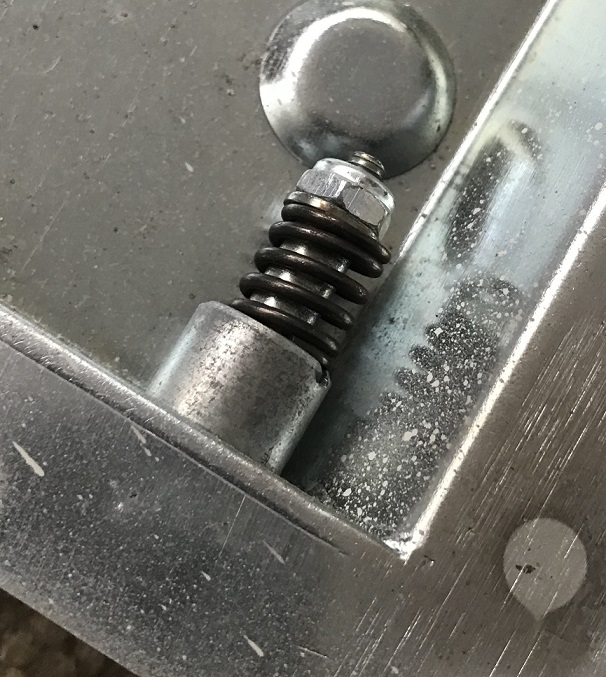

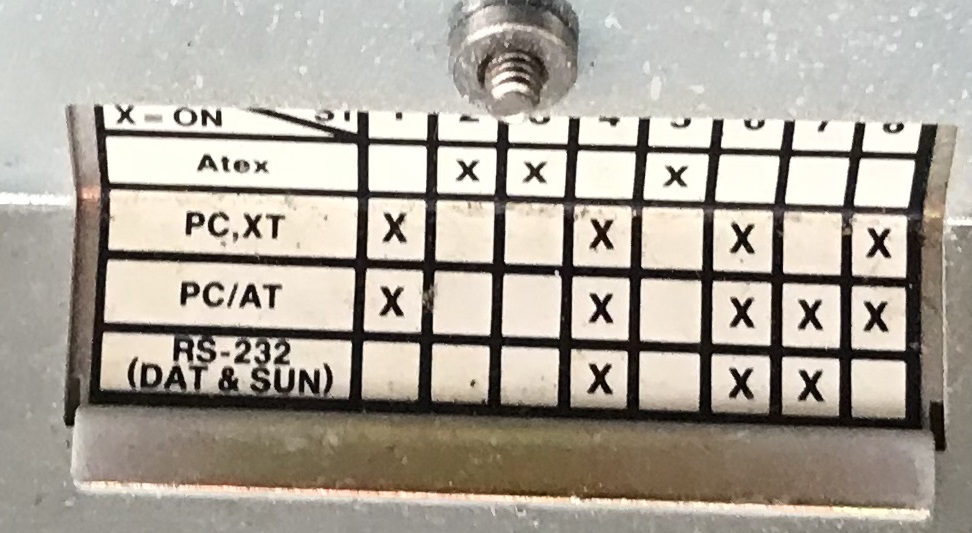

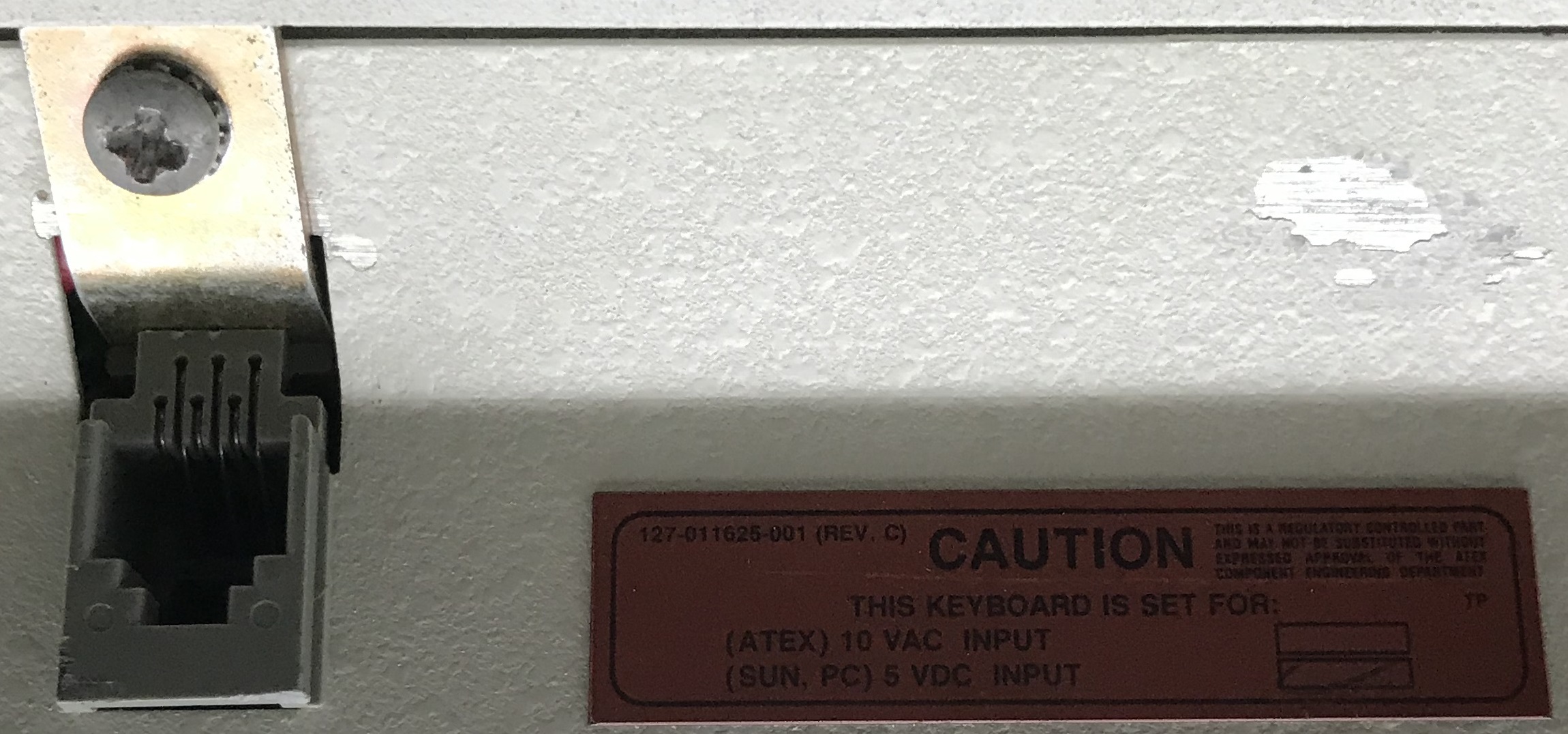

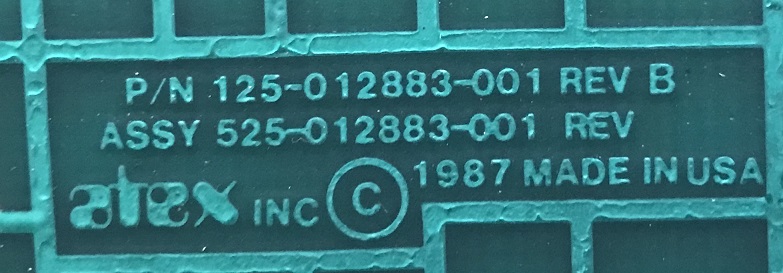

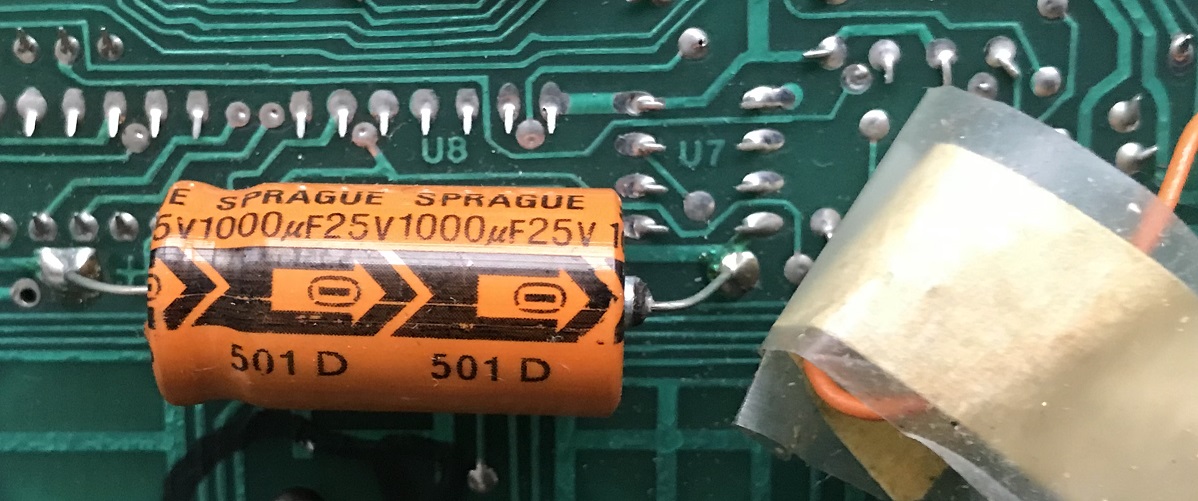

Spoiler:

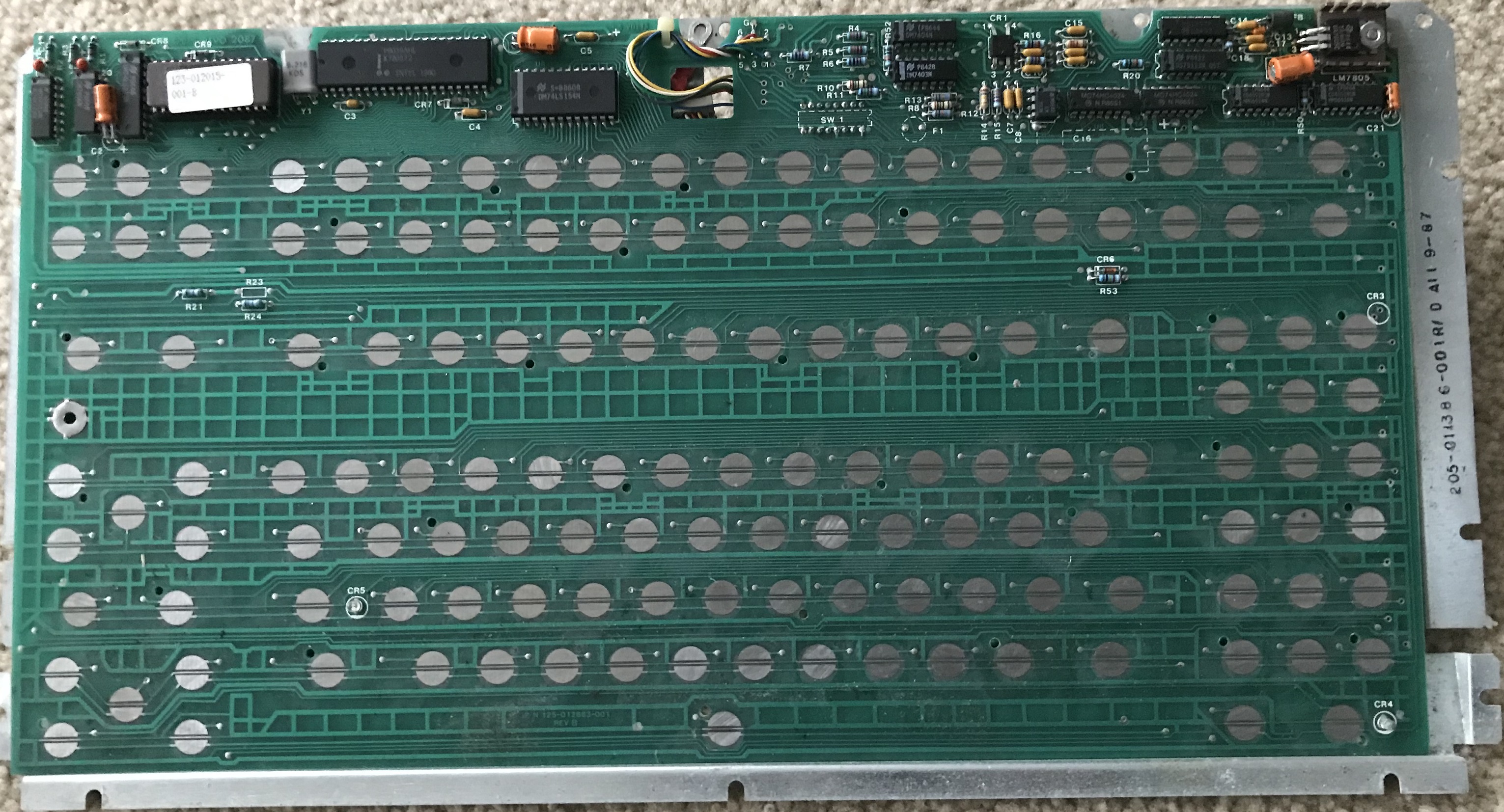

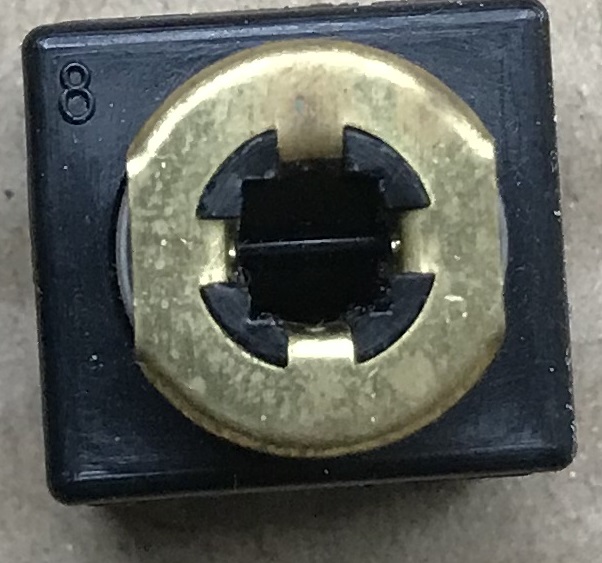

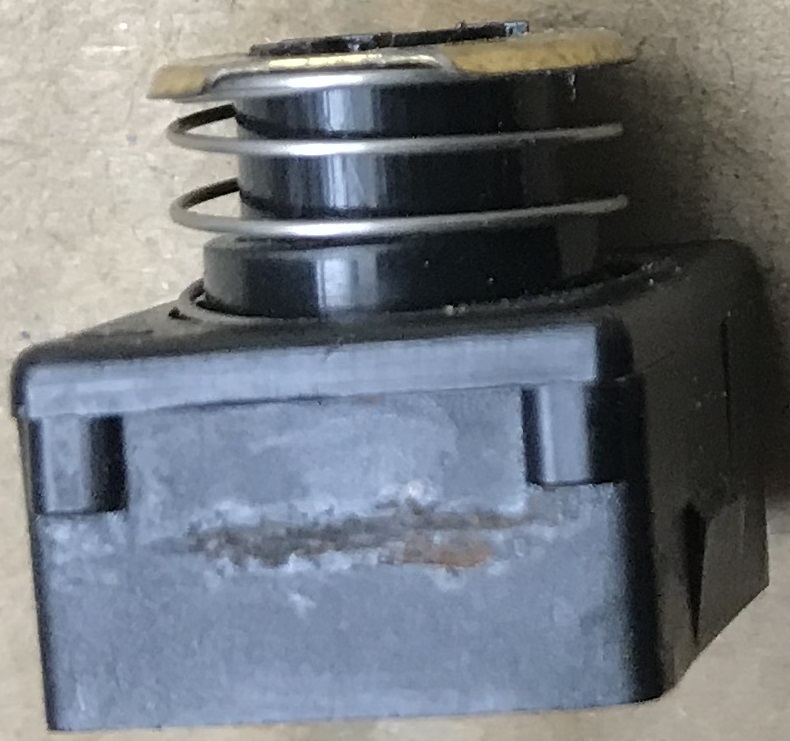

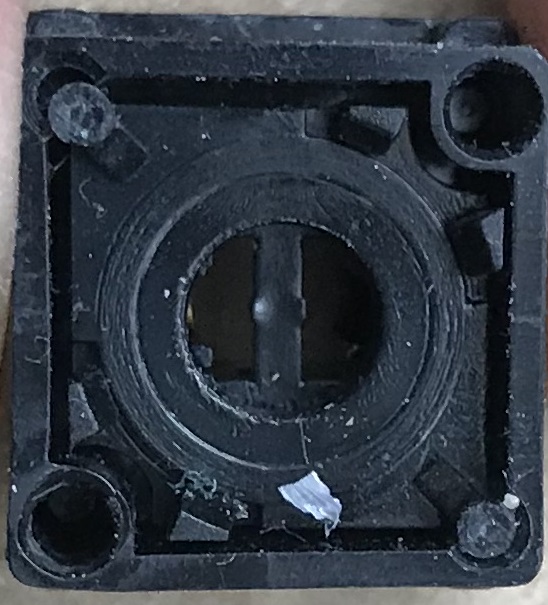

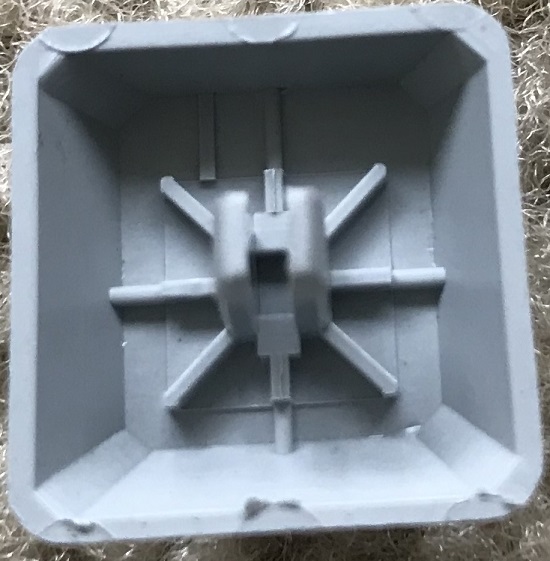

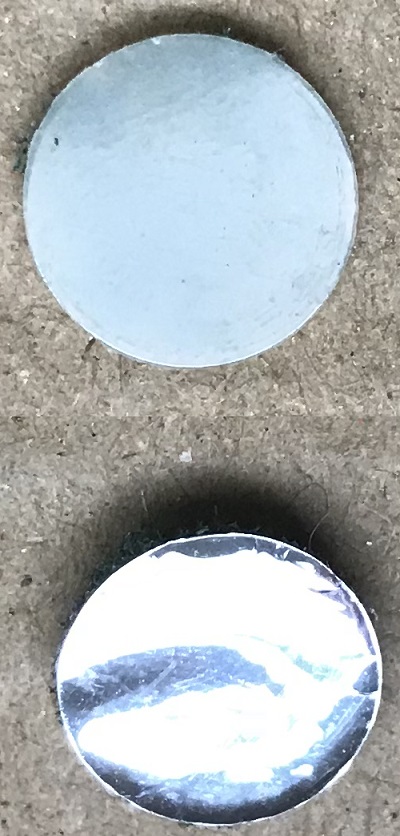

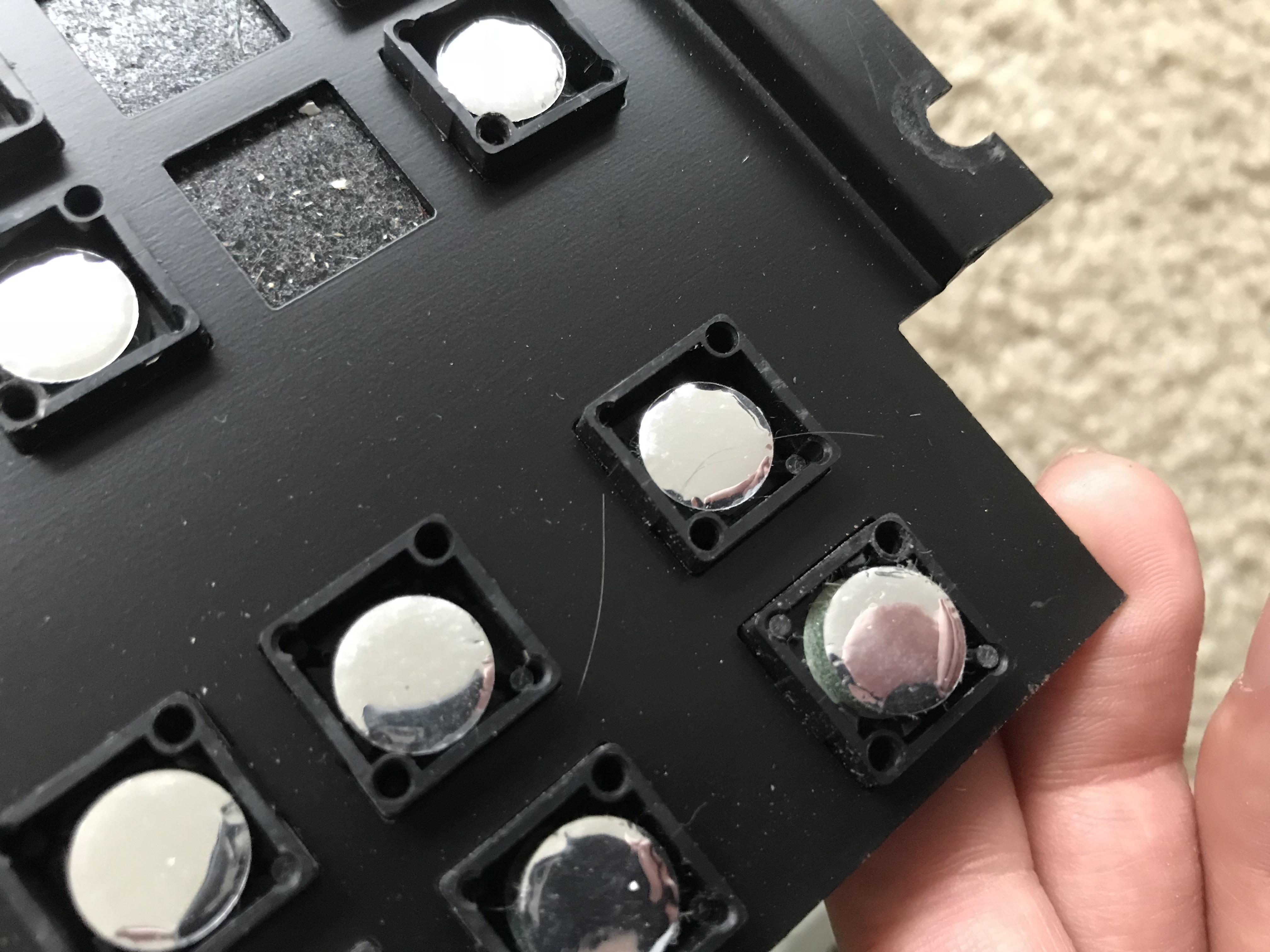

Some sort of foam and foil switch I've never seen before:
A big problem in the 1980's
Haata also has a similar keyboard but his is quite a bit different and is older than mine: viewtopic.php?t=15026
