Small Spacebar Keyboard
- aaron
- Location: Germany (Karlsruhe)
- Main keyboard: Noppoo Choc Mini
- Main mouse: Roccat Kova[+], CST
- Favorite switch: MX-Brown mit O-Rings
- DT Pro Member: -
- Contact:
Hi!
I am looking for a 60% keyboard with a small spacebar (to place CTRL, ALT, WIN, ... on the thumbs). Just like the 7bit layout of the phantom but in 60% size as in poker/gh60. Is there such a keyboard or is there a keyboard which is moddable to remove the spacebarr and insert some additional switches?
And another question: I am the only one on earth who thinks the spacebar is ridiculous big?
I am looking for a 60% keyboard with a small spacebar (to place CTRL, ALT, WIN, ... on the thumbs). Just like the 7bit layout of the phantom but in 60% size as in poker/gh60. Is there such a keyboard or is there a keyboard which is moddable to remove the spacebarr and insert some additional switches?
And another question: I am the only one on earth who thinks the spacebar is ridiculous big?
- Muirium
- µ
- Location: Edinburgh, Scotland
- Main keyboard: HHKB Type-S with Bluetooth by Hasu
- Main mouse: Apple Magic Mouse
- Favorite switch: Gotta Try 'Em All
- DT Pro Member: µ
I can't answer your first question, but you're far from alone. I'm used to 5 unit Apple space bars, and want to try even smaller. My next custom keyboard will have one for sure.
Fortunately Japanese layout keyboards (JIS) have more mods and little space bars. Like the HHKB JP:

The Filco Minila is up to the same thing:

Nice to see one of the Japanese manufacturers bringing their small space bars over here!
Fortunately Japanese layout keyboards (JIS) have more mods and little space bars. Like the HHKB JP:

The Filco Minila is up to the same thing:

Nice to see one of the Japanese manufacturers bringing their small space bars over here!
- scottc
- ☃
- Location: Remote locations in Europe
- Main keyboard: GH60-HASRO 62g Nixies, HHKB Pro1 HS, Novatouch
- Main mouse: Steelseries Rival 300
- Favorite switch: Nixdorf 'Soft Touch' MX Black
- DT Pro Member: -
To answer your second question: I know the feeling! Have you ever used a Model F AT? Now _that_ is a ridiculously oversized spacebar! When I make my first custom keyboard sometime next year, I'm hoping to have a 4.5U spacebar because the normal size is far too big for my liking.
To answer your first question: I don't know any others apart from those that Mu mentioned above. Unless you want to join in and make your own?
To answer your first question: I don't know any others apart from those that Mu mentioned above. Unless you want to join in and make your own?

- aaron
- Location: Germany (Karlsruhe)
- Main keyboard: Noppoo Choc Mini
- Main mouse: Roccat Kova[+], CST
- Favorite switch: MX-Brown mit O-Rings
- DT Pro Member: -
- Contact:

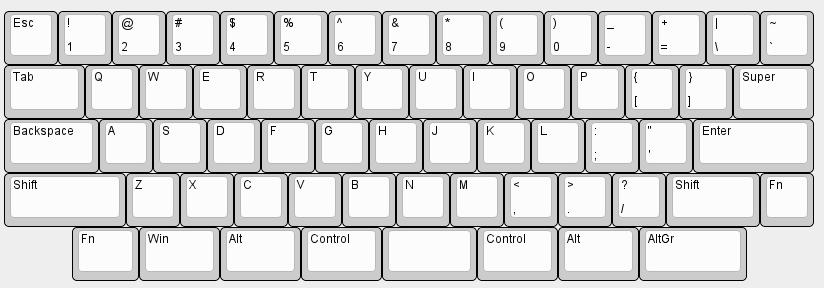

I am so damn close to make my own.
That would be my dream keyboard:
That would be my dream keyboard:
- Attachments
-
- 2013-12-30-012437_824x288_scrot.png (19.06 KiB) Viewed 14038 times
-
- Main keyboard: IBM Model M
- Main mouse: Masamune Shirow
- Favorite switch: Buckling springs
- DT Pro Member: -
- Contact:
No, you're not the only one...aaron wrote:And another question: I am the only one on earth who thinks the spacebar is ridiculous big?
And thankfully most people in the "ergo keyboard" movement do also apparently happen to think that small spacebars are great and that the thumbs should be used to hit other modifiers too (and that, of course, they're easier to hit when the spacebar is both smaller and differently located than on regular keyboards). I'm talking about real ergonomic keyboards here, not plain staggered keyboards which have just been split in two and which end up being "split" but in no way ergonomic.
For "regular" staggered keyboards I guess we can consider ourselves lucky that the japanese layout exists

I'm nearly in the same boat as you: 60% here (HHKB Pro 2) since 18 months or so and I'm now seriously considering the japanese version...
Regarding your dream physical layout: please make left and right CTRL send different keycodes so people can configure them as they want (same for the two ALTs)

Last edited by TacticalCoder on 30 Dec 2013, 01:47, edited 1 time in total.
- scottc
- ☃
- Location: Remote locations in Europe
- Main keyboard: GH60-HASRO 62g Nixies, HHKB Pro1 HS, Novatouch
- Main mouse: Steelseries Rival 300
- Favorite switch: Nixdorf 'Soft Touch' MX Black
- DT Pro Member: -
That is a very, very small spacebar indeed! Is your alt-gr the same size as it?aaron wrote:I am so damn close to make my own.
That would be my dream keyboard:

- Dubsgalore
- Location: USA
- Main keyboard: ESA-3000-HASRO
- Main mouse: Deathadder 2013
- Favorite switch: MX Blacks
- DT Pro Member: -
I've thought about considering a smaller size spacebar for long term use...I only use my right thumb in one specific spot for the spacebar. If you are using a 6.25x spacebar, it's right about where the N is on a standard ISO/ANSI board. I've thought, if i only use that small space on the spacebar, why not get a custom layout with smaller caps on either side of that one small position.
I think i just feel comfortable with a full spacebar there, even though i'm not going to be using it. If i had win keys and other caps there that i could use, knowing me it would take forever to adjust my typing style to where it would be effective to use that layout.
Also the look of a lot of caps on the bottom row doesn't intrigue me.
I think i just feel comfortable with a full spacebar there, even though i'm not going to be using it. If i had win keys and other caps there that i could use, knowing me it would take forever to adjust my typing style to where it would be effective to use that layout.
Also the look of a lot of caps on the bottom row doesn't intrigue me.

- aaron
- Location: Germany (Karlsruhe)
- Main keyboard: Noppoo Choc Mini
- Main mouse: Roccat Kova[+], CST
- Favorite switch: MX-Brown mit O-Rings
- DT Pro Member: -
- Contact:

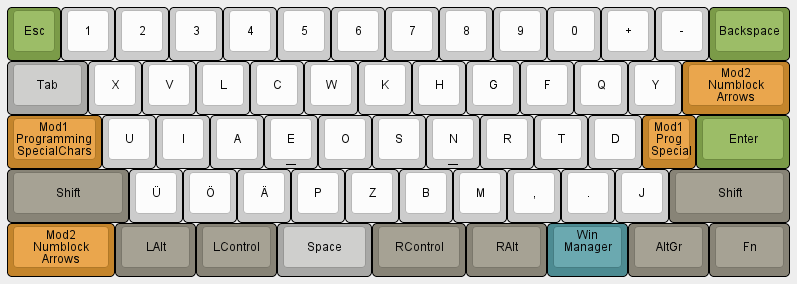

Thanks a log for your suggestions and links! Matt3o's "build your own keyboard" posts are extremely useful!
I've modified the layout a little to meet my own requirements (modified NEO2 layout, I just post the first layer)..
Space and RControl are the same size (to swap the space key) to match better with the thumb resting position. LAlt, LControl, RAlt and WinManager can be pressed with the thumbs too, which is a bit more ergonomic. AltGr, the Fn key and the left Mod2 Key are rarely used so it is placed at the corners. I which I can make the ESC key a little bit bigger (or more accessible) for vim-users. What do you think?
I've modified the layout a little to meet my own requirements (modified NEO2 layout, I just post the first layer)..
Space and RControl are the same size (to swap the space key) to match better with the thumb resting position. LAlt, LControl, RAlt and WinManager can be pressed with the thumbs too, which is a bit more ergonomic. AltGr, the Fn key and the left Mod2 Key are rarely used so it is placed at the corners. I which I can make the ESC key a little bit bigger (or more accessible) for vim-users. What do you think?
- Muirium
- µ
- Location: Edinburgh, Scotland
- Main keyboard: HHKB Type-S with Bluetooth by Hasu
- Main mouse: Apple Magic Mouse
- Favorite switch: Gotta Try 'Em All
- DT Pro Member: µ
Cool. Looks doable to me. You'll need to find the right caps, but with a bit of creativity…
Here's another vital link for keyboard builders: Soarer's Controller. This firmware is magic!
My custom runs it, and here is the heart of its layout config file:
Equals:

Equals:

So simple even I can do it!
Here's another vital link for keyboard builders: Soarer's Controller. This firmware is magic!
My custom runs it, and here is the heart of its layout config file:
Code: Select all
# Muirium's Shiny 60%
matrix
scanrate 1
debounce 5
blocking 0
sense PF7 PB6 PB5 PB4 PD7 PD4 PD5 PC7 PC6 PD3 PD2 PD1 PD0 PB7 PB3 PB2
strobe PF0 esc 1 2 3 4 5 6 7 8 9 0 minus equal back_quote system_power UNASSIGNED
strobe PF1 tab q w e r t y u i o p left_brace right_brace UNASSIGNED backspace UNASSIGNED
strobe PF4 caps_lock a s d f g h j k l semicolon quote UNASSIGNED enter UNASSIGNED UNASSIGNED
strobe PF5 lshift z x c v b n m comma period slash UNASSIGNED rshift UNASSIGNED FN1 UNASSIGNED
strobe PF6 lctrl lalt lgui UNASSIGNED UNASSIGNED space UNASSIGNED UNASSIGNED UNASSIGNED rgui ralt UNASSIGNED rctrl UNASSIGNED pad_enter UNASSIGNED
end
Equals:
So simple even I can do it!
- scottc
- ☃
- Location: Remote locations in Europe
- Main keyboard: GH60-HASRO 62g Nixies, HHKB Pro1 HS, Novatouch
- Main mouse: Steelseries Rival 300
- Favorite switch: Nixdorf 'Soft Touch' MX Black
- DT Pro Member: -
Round 4 Space Cadet caps... I really, really wish I had been around when they were going, because I think that Space Cadet caps are the some of the most amazing that I've seen! If you want in on some similar caps, you might be able to get in on the order with 7bit before it's too late: http://deskthority.net/marketplace-f11/ ... =round%205adhoc wrote:^- are those spherical caps? Man, I absolutely love the font and caps and the looks. What is that keyboard, something custom made?
- Muirium
- µ
- Location: Edinburgh, Scotland
- Main keyboard: HHKB Type-S with Bluetooth by Hasu
- Main mouse: Apple Magic Mouse
- Favorite switch: Gotta Try 'Em All
- DT Pro Member: µ
Yes, Round 4 caps on my home made stainless steel keyboard.
Round 5 is wrapping up soon, I'd get on it if I were you. Matt3o's doing another group build this year, too.
Round 5 is wrapping up soon, I'd get on it if I were you. Matt3o's doing another group build this year, too.
- adhoc
- Location: Slovenia
- Main keyboard: HHKB
- Main mouse: MX Master 3S
- Favorite switch: 45g Topre
- DT Pro Member: 0238
Yeah I know, I watched the thread, but I'm on a HHKB currently and would prefer to keep it blank. If it were possible to order blanks I'd be all over this, because I'm seriously loving the sphericals. Also, I think it isn't possible to order a space bar :/ Is that PBT or ABS?
- Spearman
- Location: United States
- DT Pro Member: -
Looks nice Murium.

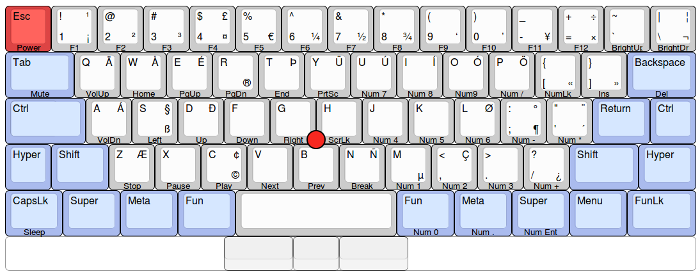

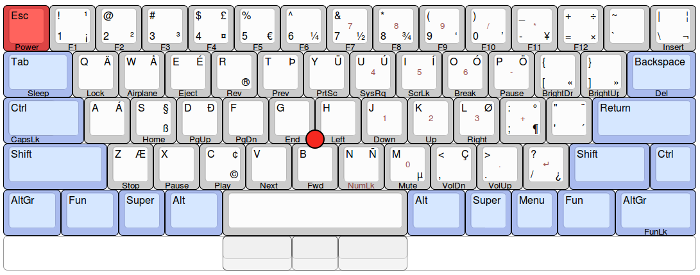

A layout I would like to try with a 3.5 unit spacebar.
I tried to make modifiers symmetric and take advantage of the bottom row.
http://www.keyboard-layout-editor.com/# ... 9d4d8d0914
Not sure about the order or spacing on the bottom
Edit: Correct version now
Edit 2: replaced delete with FnLk, uploaded function layer layout. Managed to keep at least one set of modifiers unchanged along the bottom while fitting all the missing 104 keys plus the most widely used media keys. I would have liked to put the arrow keys in vim position (HJKL) but being able to access the numpad with the right hand is the tradeoff there.
A layout I would like to try with a 3.5 unit spacebar.
I tried to make modifiers symmetric and take advantage of the bottom row.
http://www.keyboard-layout-editor.com/# ... 9d4d8d0914
Not sure about the order or spacing on the bottom
Edit: Correct version now
Edit 2: replaced delete with FnLk, uploaded function layer layout. Managed to keep at least one set of modifiers unchanged along the bottom while fitting all the missing 104 keys plus the most widely used media keys. I would have liked to put the arrow keys in vim position (HJKL) but being able to access the numpad with the right hand is the tradeoff there.
- Attachments
-
- symmetric_60_3.png (92.1 KiB) Viewed 13852 times
Last edited by Spearman on 02 Jan 2014, 07:25, edited 6 times in total.
- matt3o
- -[°_°]-
- Location: Italy
- Main keyboard: WhiteFox
- Main mouse: Anywhere MX
- Favorite switch: Anything, really
- DT Pro Member: 0030
- Contact:
I believe it's time for a "build your own firmware" thread.
- ماء
- Location: Solo, ID
- Main keyboard: Soon
- Main mouse: Roccat Lua
- Favorite switch: Blacks to heavy>Lighter
- DT Pro Member: -
Nice,weird left shiftMuirium wrote:Cool. Looks doable to me. You'll need to find the right caps, but with a bit of creativity…
Here's another vital link for keyboard builders: Soarer's Controller. This firmware is magic!
Spoiler:

- Muirium
- µ
- Location: Edinburgh, Scotland
- Main keyboard: HHKB Type-S with Bluetooth by Hasu
- Main mouse: Apple Magic Mouse
- Favorite switch: Gotta Try 'Em All
- DT Pro Member: µ
HHKB style right shift!

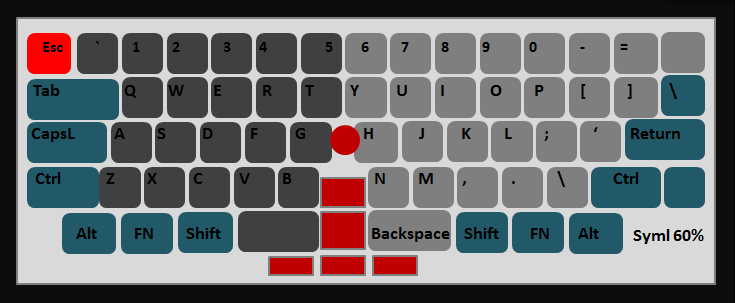

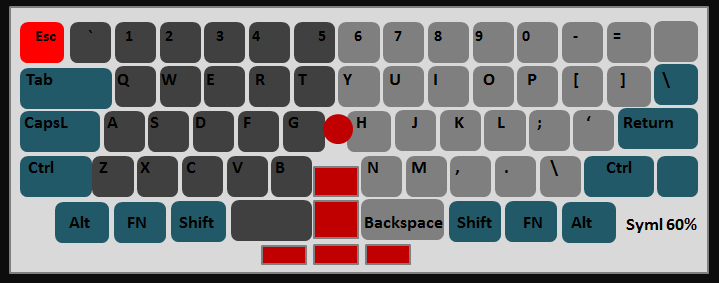

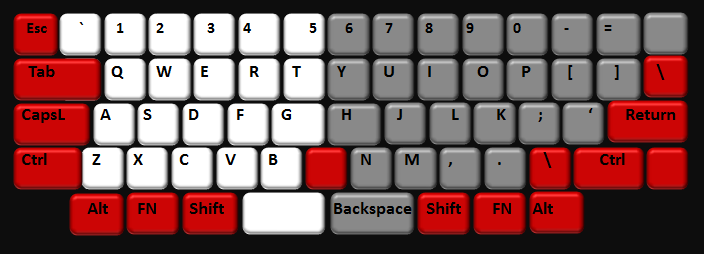

I found that going for a Poker-style bottom row, with all 1.25 unit mods, gave me a hidden inverted T right down in that corner, so I didn't need to cram in my own cursor keys.

I found that going for a Poker-style bottom row, with all 1.25 unit mods, gave me a hidden inverted T right down in that corner, so I didn't need to cram in my own cursor keys.
Perhaps. I know you like to build from source — and the idea appeals to me because I could try my own extended features like layer locks / selectors, and double tap keys — but it's a leap in the dark without a good guide.matt3o wrote:I believe it's time for a "build your own firmware" thread.
It's nice and symmetric, but 3.5 unit space bars aren't something I know how to source. 3 unit: can do. Even 1.5 unit! In fact, I'd better order one of those 3 unit ones myself now I come to think of it…Spearman wrote:Just about perfect
(Not sure if it's possible to build because of the 3.5-unit spacebar)
- ماء
- Location: Solo, ID
- Main keyboard: Soon
- Main mouse: Roccat Lua
- Favorite switch: Blacks to heavy>Lighter
- DT Pro Member: -
No,sorry,i mean left shift :lol:the size not normal i seeMuirium wrote:HHKB style right shift!
I found that going for a Poker-style bottom row, with all 1.25 unit mods, gave me a hidden inverted T right down in that corner, so I didn't need to cram in my own cursor keys.

- Muirium
- µ
- Location: Edinburgh, Scotland
- Main keyboard: HHKB Type-S with Bluetooth by Hasu
- Main mouse: Apple Magic Mouse
- Favorite switch: Gotta Try 'Em All
- DT Pro Member: µ
Well spotted. Soon to be fixed, along with Return:

Signature Plastics didn't have the right molds to make all those keys in SA profile during Round 4. But they do now! So I'm getting the whole pack, so I can have a row 2 Tab and HHKB Backspace, too.

Signature Plastics didn't have the right molds to make all those keys in SA profile during Round 4. But they do now! So I'm getting the whole pack, so I can have a row 2 Tab and HHKB Backspace, too.
- bhtooefr
- Location: Newark, OH, USA
- Main keyboard: TEX Shinobi
- Main mouse: TrackPoint IV
- Favorite switch: IBM Selectric (not a switch, I know)
- DT Pro Member: 0056
- Contact:
You know, an idea I had with the TrackPoint buttons... have a row BELOW the main row. ThinkPad keyboards actually do this (partially anyway) for arrow keys, and I know it'd be weird, but might get some more modifiers or something down there.
- Muirium
- µ
- Location: Edinburgh, Scotland
- Main keyboard: HHKB Type-S with Bluetooth by Hasu
- Main mouse: Apple Magic Mouse
- Favorite switch: Gotta Try 'Em All
- DT Pro Member: µ
The HHKB has thought of everything!

Well, not a "real" HHKB, just the Lite model (which is rubber dome I think). But cursor keys like that aren't something you see on desktop keyboards every day. Note they're about 2/3 height, instead of 1/2 height like Apple's dinky arrow keys:

Full height keys are really all you can do in a custom anyway, perhaps they're worth a look.

Well, not a "real" HHKB, just the Lite model (which is rubber dome I think). But cursor keys like that aren't something you see on desktop keyboards every day. Note they're about 2/3 height, instead of 1/2 height like Apple's dinky arrow keys:

Full height keys are really all you can do in a custom anyway, perhaps they're worth a look.
- bhtooefr
- Location: Newark, OH, USA
- Main keyboard: TEX Shinobi
- Main mouse: TrackPoint IV
- Favorite switch: IBM Selectric (not a switch, I know)
- DT Pro Member: 0056
- Contact:
Keep in mind that you can get away with 17 mm pitch on Topre, and 16.75 mm (based on the clearances on the 2-piece 18 mm pitch caps that Alps sold) pitch on Alps...
- Muirium
- µ
- Location: Edinburgh, Scotland
- Main keyboard: HHKB Type-S with Bluetooth by Hasu
- Main mouse: Apple Magic Mouse
- Favorite switch: Gotta Try 'Em All
- DT Pro Member: µ
Yep. Topre and buckling spring are both out of reach, for now. Their switches are not discrete. So we are stuck with Cherry MX and, back in the distance, Alps.
- matt3o
- -[°_°]-
- Location: Italy
- Main keyboard: WhiteFox
- Main mouse: Anywhere MX
- Favorite switch: Anything, really
- DT Pro Member: 0030
- Contact:
that would be a hell of a job. there's a lot of hardware involved and "switches" can be only donated from other (very expensive) topre keyboards. so it would be very unpractical.Spearman wrote:Is it possible to do custom Topre builds? I haven't really seen any keycaps for sale, and then I imagine you'd have to manufacture a PCB or something, plus the rubber dome part... Much harder than Cherry MX, no?
- Muirium
- µ
- Location: Edinburgh, Scotland
- Main keyboard: HHKB Type-S with Bluetooth by Hasu
- Main mouse: Apple Magic Mouse
- Favorite switch: Gotta Try 'Em All
- DT Pro Member: µ
I like the Round 5 style colours. Swapping Shift and Control would drive me nuts (as would HJLK instead HJKL!) but that space your symmetric stagger has cleared between GH and BN would be good for a pointing device.
- ماء
- Location: Solo, ID
- Main keyboard: Soon
- Main mouse: Roccat Lua
- Favorite switch: Blacks to heavy>Lighter
- DT Pro Member: -
Yes,Swap Shift>Control for programmerMuirium wrote:I like the Round 5 style colours. Swapping Shift and Control would drive me nuts (as would HJLK instead HJKL!) but that space your symmetric stagger has cleared between GH and BN would be good for a pointing device.




- Spearman
- Location: United States
- DT Pro Member: -

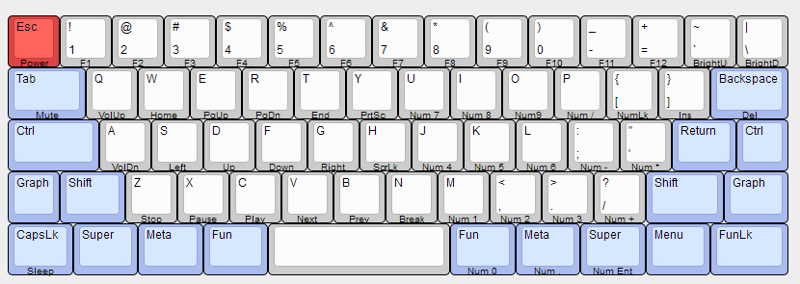

A more-sane layout: 4-unit space, added a 'numpad' layer and used extra space to add more media keys
Nice thing about this is all the navigation keys are on the Fn home row
Since all the keys should be available in theory maybe i'll try and build one someday
Nice thing about this is all the navigation keys are on the Fn home row
Since all the keys should be available in theory maybe i'll try and build one someday

- Attachments
-
- 65-us-international-trackpoint-numlayer3_700.png (70.91 KiB) Viewed 13557 times
Last edited by Spearman on 05 Jan 2014, 12:50, edited 1 time in total.
