Here are some pics of IBM Part #1393915. For science!
Model M's capacitive membrane, flippers, and case; Model F's barrel plate and barrels.
49-Key Model M
-
just_add_coffee
- Location: United States
- Main keyboard: Model F AT, Batwing Ergodox
- Main mouse: Microsoft Trackball Explorer 1.0
- Favorite switch: Buckling Spring
- DT Pro Member: -
So I got this from Orihalcon.
Here are some pics of IBM Part #1393915. For science!
Model M's capacitive membrane, flippers, and case; Model F's barrel plate and barrels.
Here are some pics of IBM Part #1393915. For science!
Model M's capacitive membrane, flippers, and case; Model F's barrel plate and barrels.
-
orihalcon
- Location: Des Moines / Cedar Falls, IA, USA
- Main keyboard: IBM Model F107
- DT Pro Member: 0190
Looking good! I never really took one of them completely apart, but at least the foam looks decent.
In theory, you could make a Model F PCB and add F flippers, install an xwhatsit and you'd have a true model F! If I had more beyond those, I'd consider doing it, but I don't know if the increase in cost would still leave many people interested.
In theory, you could make a Model F PCB and add F flippers, install an xwhatsit and you'd have a true model F! If I had more beyond those, I'd consider doing it, but I don't know if the increase in cost would still leave many people interested.
.-
orihalcon
- Location: Des Moines / Cedar Falls, IA, USA
- Main keyboard: IBM Model F107
- DT Pro Member: 0190
True, model M membranes are not capacitative. Was saying you could make a Model F PCB to go under the barrels instead of the membrane, add Xwhatsit controller, and you've got yourself a 50 key Model F.
The template already exists for these PCBs as these are identical internally other than the membrane instead of PCB to a 4704 Model F 50 key. It even has the nubs that hold the F PCB in place. Pretty clear that they re-used all model F tooling for the main board for these M50's and just stuck membranes inside instead.

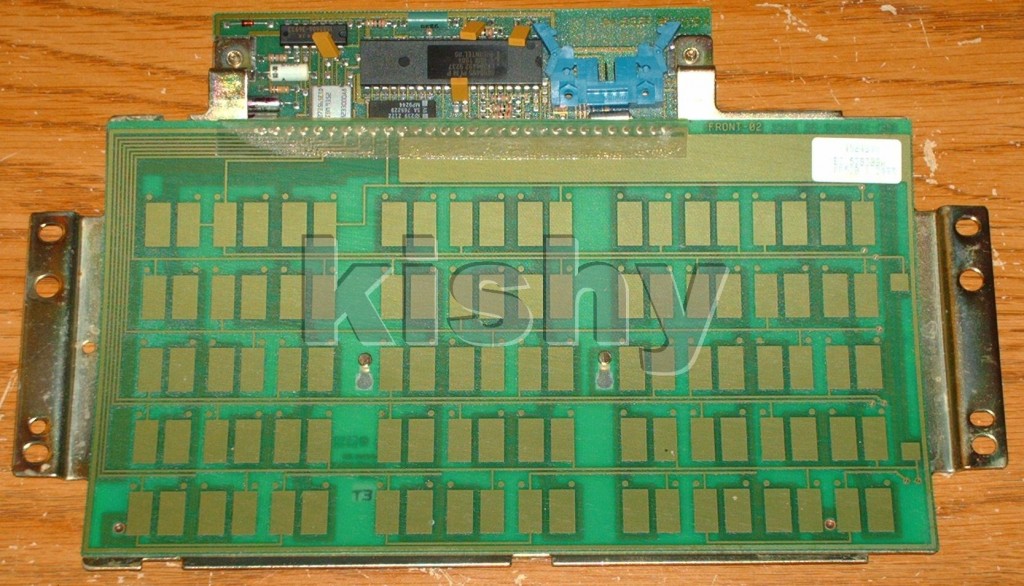

Just need to reproduce this PCB:
The template already exists for these PCBs as these are identical internally other than the membrane instead of PCB to a 4704 Model F 50 key. It even has the nubs that hold the F PCB in place. Pretty clear that they re-used all model F tooling for the main board for these M50's and just stuck membranes inside instead.
Just need to reproduce this PCB:
- 6019273_0007-1024x586.jpg (183.5 KiB) Viewed 1840 times
-
just_add_coffee
- Location: United States
- Main keyboard: Model F AT, Batwing Ergodox
- Main mouse: Microsoft Trackball Explorer 1.0
- Favorite switch: Buckling Spring
- DT Pro Member: -
-
just_add_coffee
- Location: United States
- Main keyboard: Model F AT, Batwing Ergodox
- Main mouse: Microsoft Trackball Explorer 1.0
- Favorite switch: Buckling Spring
- DT Pro Member: -
That's amazing really! There was a little it of dust and a bit of corrosion on the barrel plate, but between the plates and the membrane itself were very clean. I thought for sure you had gotten in there and cleaned a little bit.
